In essence, a Research CIP System with a pin-type vessel is a robust and highly reliable unit designed for frequent, safe, and efficient use in a laboratory setting. Its core characteristics are a moderate pressure capacity of 60,000 psi, a durable forged vessel, automated controls for repeatability, and an emphasis on operational simplicity.
These systems are engineered for the workhorse demands of a research environment. The defining choice of a pin-type closure prioritizes safety, speed, and ease of use for repeated cycles over achieving the absolute maximum pressures possible with other designs.

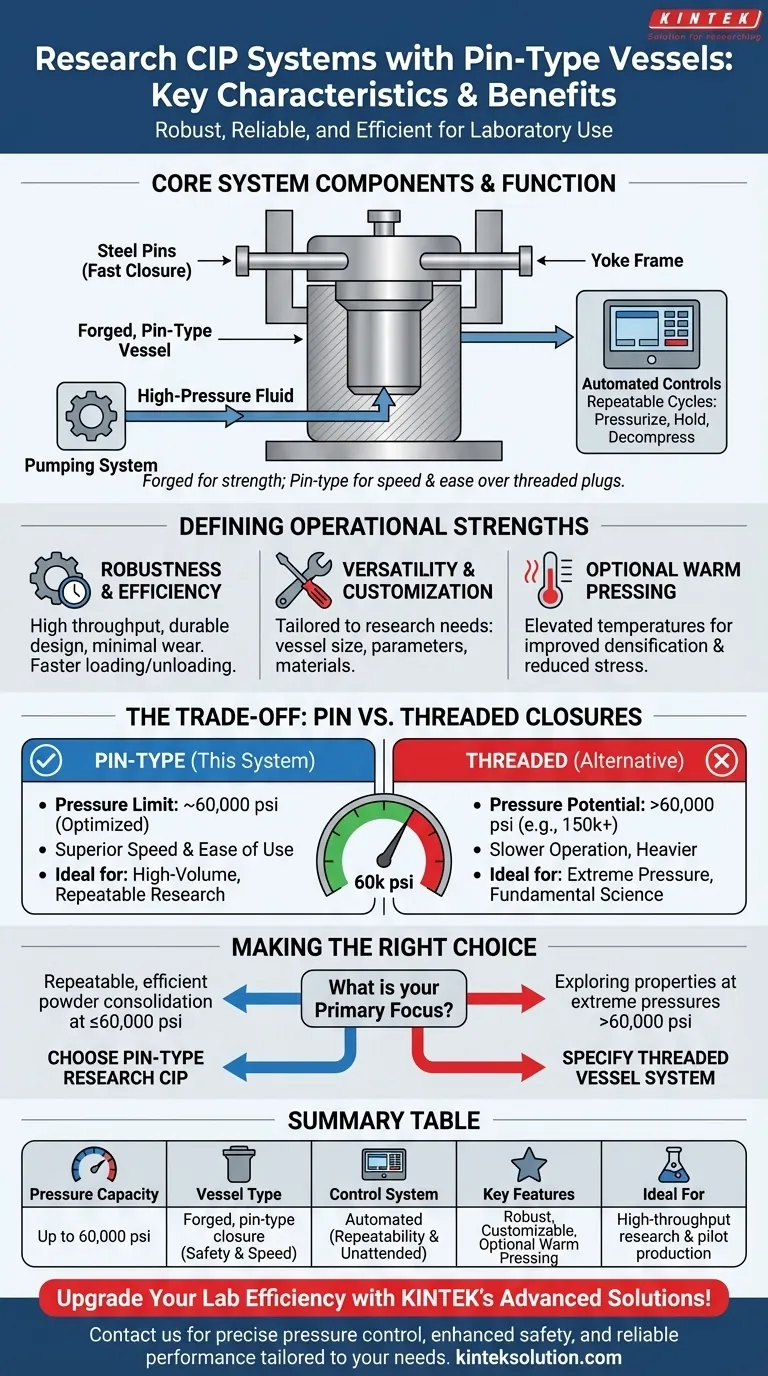

Core System Components and Their Function
A Research CIP is a complete, integrated system. Understanding its key components reveals its purpose and capabilities.
The Forged, Pin-Type Vessel
The heart of the system is the pressure vessel. Its construction is forged, a manufacturing process that creates an exceptionally strong and fatigue-resistant metal structure, vital for enduring thousands of pressure cycles.
The pin-type closure is a key differentiator. Instead of a heavy, slow-to-operate threaded plug, this design uses a lighter-weight yoke frame and steel pins for closure, making it significantly faster and easier to open and close.
Automated Controls
Modern research demands precision and repeatability. These systems feature automated controls that manage the entire pressurization, hold, and decompression cycle.
This automation ensures that every part is subjected to the exact same process, eliminating operator-induced variability and allowing for safe, unattended operation.
The Pumping System
The system includes a dedicated high-pressure pump. This component is responsible for generating the fluid pressure within the vessel, compressing the flexible mold and the powder material inside it.
Defining Operational Strengths
The component choices directly translate into the system's primary operational advantages for a research setting.
Robustness and Efficiency
The combination of a forged vessel and a simple pin closure is built for longevity and high throughput. This design minimizes wear and tear while reducing the time it takes to load and unload parts, increasing overall lab efficiency.
Versatility and Customization
While built around a standard design, these systems are highly customizable. They can be tailored to specific research needs, from vessel size to control parameters, to suit a wide range of materials and part geometries.
Optional Warm Pressing Capability
To expand its utility, the system can be equipped with warm pressing capabilities. This allows the isostatic pressing process to be conducted at elevated temperatures, which can improve densification and reduce internal stresses for certain polymers or advanced materials.
Understanding the Trade-offs: Pin vs. Threaded Closures
No single design is perfect for every application. The choice of a pin-type vessel involves a clear engineering trade-off.
Pressure Limitations
The primary limitation of a pin-type design is its pressure ceiling, which is typically 60,000 psi. The design is optimized for rapid cycling and safety within this range.
In contrast, systems with threaded vessels can be engineered to achieve much higher pressures, sometimes up to 150,000 psi or more, for specialized applications.
Operational Speed vs. Maximum Pressure
The choice between a pin and threaded vessel is a classic trade-off. Pin-type systems offer superior speed, safety, and ease of use, making them ideal for a high-volume research or pilot production environment.
Threaded systems sacrifice this operational speed for the ability to contain extreme pressures, making them suitable for fundamental materials science research where pushing pressure boundaries is the main goal.
Making the Right Choice for Your Research
To select the correct system, you must align the equipment's capabilities with your primary research objective.
- If your primary focus is repeatable, efficient powder consolidation at standard high pressures (up to 60,000 psi): The pin-type research CIP is the ideal choice for its safety, speed, and reliability.
- If your primary focus is exploring material properties at extreme or ultra-high pressures (above 60,000 psi): You should specify a system with a threaded vessel designed for these more demanding conditions.
Ultimately, understanding these core characteristics empowers you to choose the right tool for your specific scientific or engineering challenge.
Summary Table:
| Characteristic | Description |
|---|---|
| Pressure Capacity | Up to 60,000 psi |
| Vessel Type | Forged, pin-type closure for safety and speed |
| Control System | Automated for repeatability and unattended operation |
| Key Features | Robust design, customizable, optional warm pressing |
| Ideal For | High-throughput research and pilot production |
