Laboratory Press Molds
Special Shape Lab Press Mold for Laboratory Applications
Item Number : PMT
Price varies based on specs and customizations

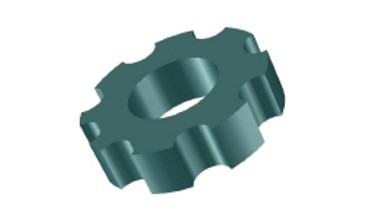

- Sample shape
- Round, square, hexagonal (Customizable)
- Die material
- Alloy tool steel: Cr12MoV
- Indenter hardness
- HRC60-HRC62
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
KINTEK specializes in advanced lab press machines, including automatic lab presses, lab isostatic presses, and heated lab presses, serving diverse laboratory needs. Our Special Shape Press Molds are engineered for precision, versatility, and demanding applications.

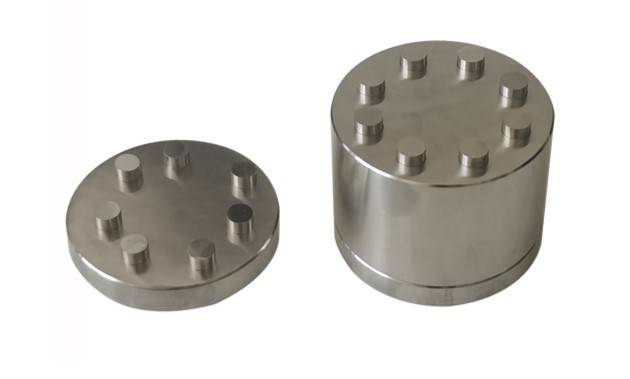

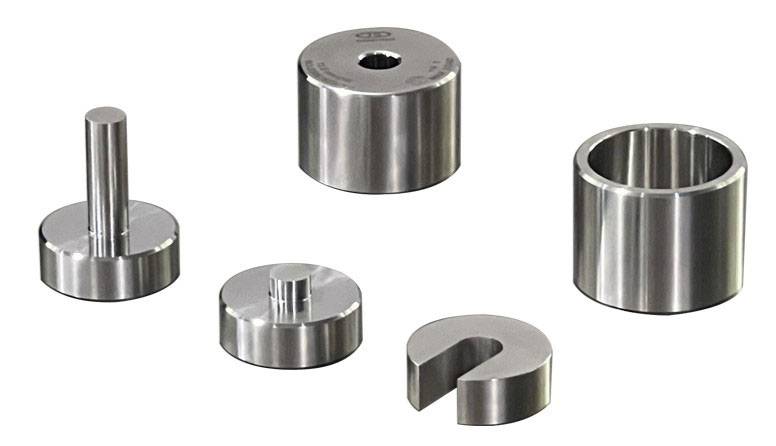

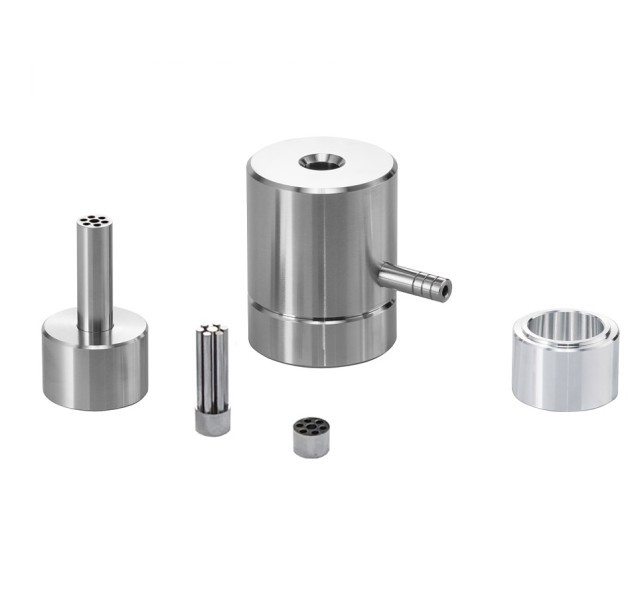

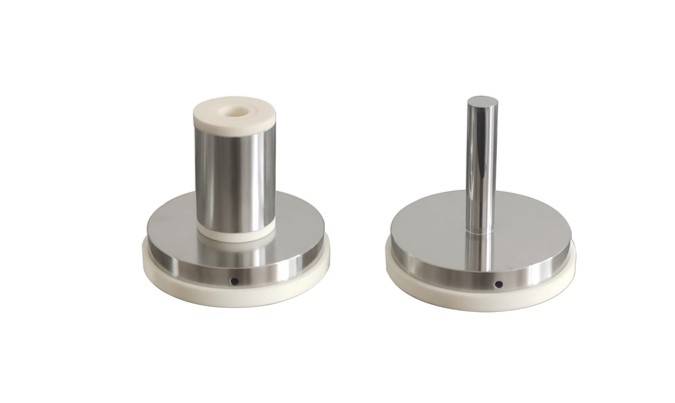

Product Showcase: Special Shape Press Molds

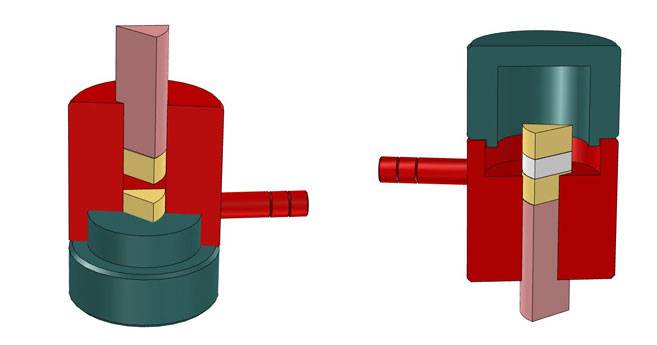

Explore the design and components of our Special Shape Press Molds, built for creating intricate and varied sample forms.
Technical Specifications
| Instrument model | PMT |
|---|---|
| Sample shape |  |
| Die material | Alloy tool steel: Cr12MoV |
| Indenter hardness | HRC60-HRC62 |
| Sample size (diameter) | Φ6, Φ8, Φ10, Φ15, Φ20mm (M) (Customizable) |
| Cavity depth | 40mm (N) (Customizable) |
| Dimensions (Outer) | Φ53*120mm (L*H) (Varies by customization) |
| Weight | Approx. 1.4Kg (Varies by customization) |

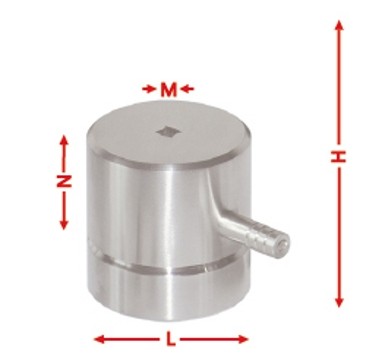

| Diagram of hydraulic powder press size compatibility |  |
Need different specifications? We offer extensive customization to meet your unique laboratory requirements. Contact us to discuss your project.
Unlock Precision Molding for Complex Geometries with KINTEK
KINTEK's Special Shape Press Molds are expertly designed for laboratories and industries requiring high-pressure applications and the ability to form materials into intricate or non-standard shapes. Whether you're working with round, square, hexagonal, or entirely custom forms, our molds deliver exceptional performance. Equipped with optional electric heating for precise temperature control and designed to work seamlessly with robust hydraulic systems for consistent pressure, these molds are indispensable for manufacturing items like long ceramic rods, detailed automotive components, or specific pharmaceutical tablets, ensuring stability, efficiency, and high-quality outcomes in your production.
Key Features & Benefits
KINTEK's Special Shape Press Molds are meticulously designed to address the pressing needs for items with unique geometries, large aspect ratios, or intricate details. This innovative mold system offers a versatile solution for industries requiring precise and stable compaction of materials, delivering superior performance for your demanding applications:
- Versatile Shape Capability: Effortlessly press various shapes including round, square, rectangular, circular, hexagonal, and flat forms. We specialize in custom designs to meet your unique geometric needs.
- High-Pressure Performance: Ideal for large cross-sectional areas and applications demanding high tonnage, ensuring thorough compaction and structural integrity of your samples.
- Integrated Electric Heating Option: Achieve precise temperature control during the molding process with optional electric heating, crucial for materials requiring specific thermal profiles for optimal results.
- Optimized for Hydraulic Control: Our molds are designed for use with hydraulic systems that ensure accurate pressure application and energy storage, enhancing both productivity and operational safety.
- Custom Solutions for Irregular Shapes: Overcome challenges with irregular shapes, such as donuts or items with varying dimensions. Our designs prevent common issues like poor compaction and instability, leading to high-quality, consistent end products.
- Efficient Material Utilization: Designed for accurate material loading, minimizing defects such as flow lines, blisters, or unfilled parts, resulting in reduced waste and more reliable outcomes.
These features make KINTEK's Special Shape Press Molds an essential tool for industries where precision, adaptability, and efficiency in pressing complex shapes are paramount. Learn how we can tailor a mold to your specific application.
Diverse Applications Across Industries
KINTEK's special shape press molds are trusted in a wide array of industries where precise molding and the shaping of materials into complex forms are critical. Their versatility ensures high-pressure uniformity and superior quality in the final product. Key application areas include:
- Ceramic Manufacturing: Ideal for pressing long, thin ceramic rods and other components, ensuring uniform compaction and density.
- Automotive Industry: Used for compression molding of various interior components such as sun visors, gear knobs, and trim covers, demanding both precision and durability.
- Plastic and Rubber Industries: Essential for shaping raw plastic compounds and rubber into specific molds using controlled heat and compression.
- Metalworking: Employed in forming metal components that require high precision and robust pressure application.
- Pharmaceutical Industry: Critical for pressing tablets with specific, often complex, shapes and sizes, frequently utilizing the mold's electric heating capabilities for optimal formulation.
- Electronics Manufacturing: Used to create precise components with intricate shapes, ensuring high-quality and reliable electronic parts.
The broad applicability of our special shape press molds highlights their importance in achieving high-quality, precise, and efficient production processes across various sectors.
Simple Operation for Consistent Results
Our special shape press molds are designed for ease of use with laboratory tablet presses. While commonly used in the catalytic industry or for forming porous samples, they are adaptable for a wide range of materials and shapes, including square or custom-designed porous samples. The outer diameter of the compression plate is typically 3-4 mm. KINTEK offers full customization of mold dimensions to meet your specific experimental or production requirements.

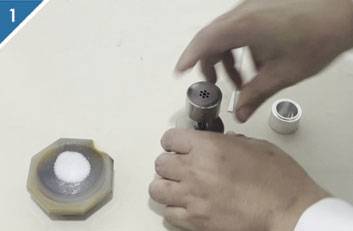

1. Place the mold in the center position of the tablet press.

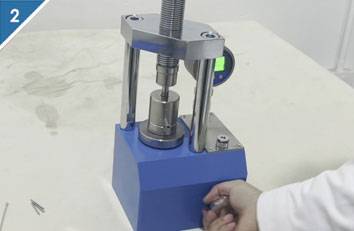

2. Tighten the oil drain valve of the tablet press clockwise (if applicable to your press).

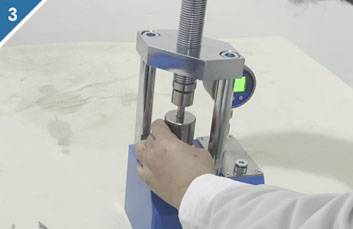

3. If applicable, tighten any fixing screws to secure the mold.

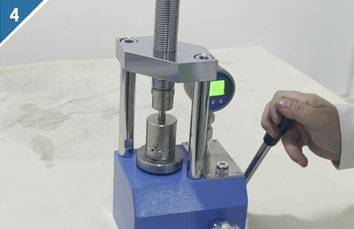

4. Operate the press (e.g., shake handle lever, use pump) to reach the required pressure.
5. Loosen the oil valve (or follow press procedure) to release pressure.

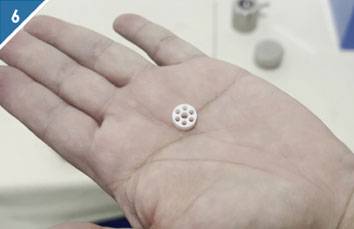

6. Carefully remove the mold and extract the pressed sample.
For detailed operational guidance tailored to your specific lab press and mold configuration, please refer to your equipment manuals or contact our support team.
Underlying Principle: Precision Through Pressure
The effectiveness of our special shape press molds is rooted in Pascal's law, which dictates that pressure applied to an enclosed fluid (or transmitted through a solid piston in mechanical presses) is distributed to compact the powder material. In our applications, this principle is expertly utilized to mold powders into a diverse range of shapes—including round, square, hexagonal, and custom designs. By sealing the powder within the mold and applying uniform pressure, we ensure an even distribution of force. This meticulous process allows for the creation of complex and precisely dimensioned samples with high consistency and structural integrity.
Partner with KINTEK for Your Molding Needs
At KINTEK, we are committed to providing high-quality, customizable lab press solutions to meet the unique challenges of your research and production. Our Special Shape Press Molds are a testament to our dedication to innovation and precision.
Ready to elevate your material processing capabilities? Whether you require a standard mold configuration or a fully customized design, our team of experts is here to assist you. We can help you select the right mold, discuss specific application requirements, and provide a detailed quote.
Don't compromise on precision and versatility. Contact KINTEK today to learn more about our Special Shape Press Molds and other lab press solutions. Let us help you achieve optimal results in your laboratory.
