Laboratory Manual Heated Hydraulic Press Machine with Hot Plates

Achieve Precise Material Processing with KINTEK's Manual Hot Press

KINTEK's Manual Hot Press is a robust and versatile laboratory instrument engineered for creating permanent electrical and mechanical connections, and for processing a wide range of materials. By utilizing advanced heating technology and a precise manual hydraulic system, it applies controlled heat and pressure to melt and flow solder or consolidate materials, ensuring strong, reliable bonds and high-quality sample preparation. Designed for laboratories prioritizing precision, reliability, and ease of use, this machine is an indispensable tool for research, development, and quality control.

Ready to enhance your laboratory's capabilities? For detailed specifications or to discuss your application, contact our specialists today.

Why Choose the KINTEK Manual Hot Press for Your Laboratory?

Our Manual Hot Press is designed with the needs of modern laboratories in mind, offering a blend of precision, versatility, and user-friendly operation. Here’s how it delivers value to your research and production:

• Consistent & Repeatable Results: Features like the titanium indenter for even temperature distribution and a digitally controlled pressure gauge ensure that each operation is precise and replicable, crucial for reliable experimental outcomes.
• Versatility Across Applications: Whether you're in electronics manufacturing, composite material fabrication, polymer processing, or advanced R&D, this machine adapts to a wide array of tasks.
• Ease of Use & Efficiency: With a touch-operated interface, multiple program storage, and straightforward manual controls, your team can quickly master its operation, streamlining your workflow.
• Durability & Reliability: Built with quality components like a titanium indenter and robust hydraulic system, our Manual Hot Press is designed for longevity and consistent performance, even in demanding lab environments.
• Enhanced Safety: Equipped with features like a two-hand start button, emergency rise switch, and safety doors (depending on model configuration), operator safety is paramount.
• Cost-Effective Solution: Offering precise control without the complexity and cost of fully automated systems, the manual hot press provides an excellent balance of performance and affordability.

Key Features Delivering Precision and Control

The KINTEK Manual Hot Press is equipped with advanced features to ensure optimal performance for your laboratory applications:

• Adjustable Pressure Head: Allows for even distribution of pressure, ensuring consistent results and preventing damage to delicate materials.
• Titanium Indenter: Guarantees uniform temperature distribution, rapid heat-up, and extended service life, contributing to reliable and efficient operations.
• Digital Pressure Gauge: Provides precise control over applied pressure with a preset range, enhancing the accuracy of your pressing process.
• Intuitive Touch-Operated Interface & Programmable Control:

  A user-friendly interface with program password protection ensures secure and straightforward operation. Pre-store up to 20 multi-step temperature control programs for quick setup and increased productivity.

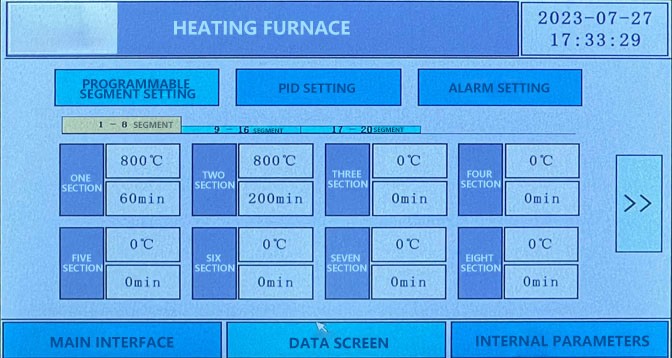

  Setting up a temperature program:

  1. Select the data screen to enter the settings interface.
  2. Choose "Program Control Section Settings."
  3. Select one of the 20 available program sections.
  4. Set the desired temperature and heating rate for that section based on your experimental needs.
  5. Repeat for multiple temperature control steps if required (up to 20 sections per program).
  6. Return to the main operation interface.

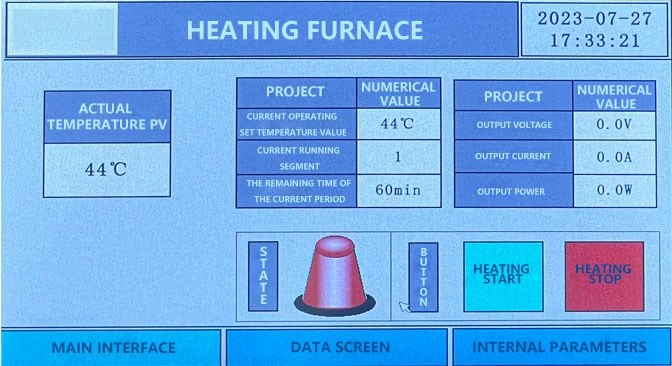

  Executing a heating program:

  1. On the main interface, press "heating start."
  2. The device will heat up according to the selected program.
  3. The equipment automatically stops heating upon completion. If issues arise (e.g., not reaching set temperature within the specified time), the device will automatically terminate the process for safety.
• Automatic Press Control Options: (Available on select models or as customization) Permits setting multiple pressure regulation steps within the molding cycle for advanced process control.
• Press Logger (Optional): Equipped with a USB port, the press logger allows for continuous recording of press conditions (temperature, pressure, cycle step) for detailed analysis and documentation.
• Custom Moulds: We offer moulds for producing plates and various sample types according to international standards, with options for custom designs and company logo engraving. Inquire about custom solutions.
• Calibration & Maintenance Service: KINTEK provides regular maintenance and calibration services to ensure the longevity, accuracy, and peak performance of your machine over time.

Versatile Applications in Your Lab

KINTEK Manual Hot Press machines are indispensable tools across diverse industries, valued for their ability to maintain constant pressure and temperature, ensuring high-quality end products for your research and development needs:

• Electronics Manufacturing: Soldering components onto circuit boards, ensuring secure and reliable electrical connections.
• Composite Material Fabrication: Pressing layers of composite materials (e.g., carbon fiber, fiberglass) to create strong, durable structures.
• Ceramic and Glass Bonding: Bonding ceramic or glass components, vital in producing advanced ceramics and specialty glass products.
• Polymer Processing: Manufacturing polymer-based products where precise temperature and pressure are crucial for desired material properties.
• Research and Development: Prototyping and developing new materials or products, benefiting from flexibility and precision control.
• Automotive Industry: Producing automotive parts requiring strong and durable bonds for safety-critical components.

Explore how the Manual Hot Press can fit your specific application. Contact us to learn more.

Understanding the Operating Principle

The Manual Hot Press functions by precisely controlling temperature and pressure to facilitate bonding or material consolidation. It typically employs a robust manual hydraulic system, ensuring adjustable and consistent pressure application. The machine features a high-quality indenter (often titanium alloy) designed for even pressure distribution, rapid heating, and extended durability. Temperature is digitally managed for accuracy, and a digital pressure gauge allows for preset pressure ranges, ensuring reliable and repeatable outcomes for your laboratory experiments.

Advantages of KINTEK's Manual Hot Press

1. Enhanced Safety Features: Designed with operator safety in mind, incorporating features like a two-hand start button, emergency rise switch, imported safety hand grating, and (optional) three-sided seal safety door.

2. Customizable Configuration: Can be adapted to specific production process requirements (e.g., under the top cylinder, left/right clamping cylinder). Non-standard customization is available to perfectly suit your application. Discuss your customization needs with us!

3. Efficient Heat Conduction: Minimizes the time for heat conduction, even for thicker workpieces (up to 20mm), reducing the influence of workpiece thickness on heating and boosting productivity.

4. Cost-Effective Precision: Offers refined pressure bearing materials and improved temperature field uniformity with reduced energy consumption, making it a cost-effective choice for high-quality material preparation, especially for large diameter samples.

5. Optional IT Technology Integration: For advanced models, control via IT technology allows for effective management of the densification process and material quality, ensuring consistent outcomes.

6. Affordable and Reliable: The manual hydraulic press offers a simpler, more affordable design by typically excluding complex electronic components found in fully automatic systems. While requiring manual operation, it remains a highly reliable choice for budget-conscious labs seeking quality results.

Technical Specifications (Model: PC-900L)

Below are the technical specifications for our standard Manual Hot Press model. Custom configurations may vary.

Instrument model	PC-900L
Pressure Range	0-5.0 tons
Pressurization process	Manual pressurization
Cylinder stroke	80mm
Heating temperature	Up to 1000°C (customizable)
Mold material	Nickel-based alloy (high temperature resistant material) or as specified
Sample size	Φ10-30mm (customizable)
Mold shape	Φ50x90mm (customizable)
The caliber of the furnace	Φ60mm (customizable)
Size of the machine (LxWxH)	Approx. 400x380x780 mm
Power supply	220V 50Hz (customizable)

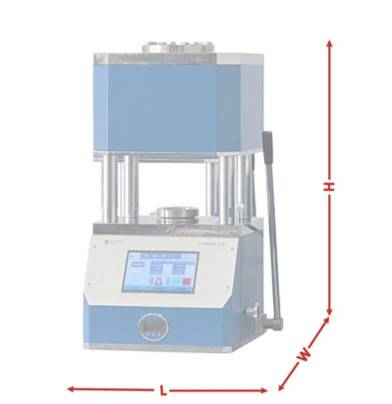

Dimensional diagram of powder tablet press

For variations or specific requirements, please request a custom quote.

Simple Operation for Reliable Results: A Step-by-Step Guide

Operating the KINTEK Manual Hot Press is straightforward, allowing you to achieve consistent results with ease:

1. Place the sample into the mold.

2. Put the mold into the hot press chamber.

3. Apply initial pre-pressure to the sample as needed.

4. Access the data screen to set the heating temperature and program (see "Key Features" for programming details).

5. Configure up to 20 heating programs, adjusting temperature setpoints and heating rates as required.

6. Return to the main interface and initiate the heating cycle.

7. When the set temperature is reached, apply the desired pressure using the manual hydraulic system.

8. After the cycle completes and the sample has cooled appropriately, carefully remove the processed sample.

Ready to Enhance Your Lab's Capabilities?

KINTEK specializes in providing high-quality lab press machines tailored to your specific research and production needs. Our Manual Hot Press offers an exceptional combination of precision, durability, and cost-effectiveness.

Have questions or need a customized solution? Our team of experts is ready to assist you. Fill out our contact form, and we'll get back to you promptly to discuss your requirements and provide a personalized quote.

Full range of types of laboratory press molds

We have a full range of molds for you to choose from, and the molds fit the body perfectly.

If you need molds with special shapes, we can also customize them for you.
