Laboratory Hydraulic Press Lab Pellet Press Button Battery Press

KINTEK Lab Press Machines: Precision, Versatility, and Reliability for Your Laboratory

At KINTEK, we specialize in providing high-performance lab press machines designed to meet the diverse needs of modern research and development. Whether you require an automatic lab press, a lab isostatic press, or a heated lab press, our equipment is engineered for precision, efficiency, and ease of use.

Our hydraulic lab presses are indispensable tools across a wide range of fields, including material research, pharmacy, catalytic reaction studies, ceramics development, and electronic industries. They are highly efficient for sample preparation, offering a compact footprint that makes them easy to carry, move, and even operate within a vacuum glove box for controlled environment processing. For specialized material processing, many of our presses can be equipped with heating plates for hot press functionality.

Ready to enhance your lab's capabilities? Discuss your specific application with our experts. Get a Personalised Recommendation Today!

Why Choose KINTEK Lab Presses for Your Critical Applications?

KINTEK presses are designed with the researcher in mind, delivering tangible benefits to streamline your workflow and improve results:

• Compact & Versatile by Design: Our presses boast a small footprint and light weight, ensuring they fit seamlessly into your lab space and can be easily relocated. Ideal for use in vacuum glove boxes, they adapt to your research environment.
• Precision & Efficiency: Achieve accurate and repeatable results. Features like dual-indicator pressure gauges (saving conversion time) and optional digital pressure gauges (for high-precision control, e.g., 0.01MPa accuracy) ensure optimal sample preparation, crucial for applications like battery research or small-scale production.
• Durable & Low Maintenance Construction:
  • Minimized Oil Leaks: Our innovative one-piece mainboard structure integrates the oil pool, mainboard, and oil cylinder, eliminating common sealed connections and significantly reducing the risk of oil leakage.
  • Built to Last: Enjoy features like chrome-plated cylinders for smooth, rust-free operation, robust sealing rings, and molds crafted from Japanese high-speed steel for superior hardness, deformation resistance, and longevity.
  • User-Friendly Maintenance: An externally located oil pool simplifies oil replacement, and an integrated hydraulic oil filtration device enhances longevity.
• Thoughtful Engineering for Enhanced Usability:
  • Electroplated countersunk head hexagonal screws on the upper plate for a sleek, space-saving design.
  • Extended pulling springs ensure excellent rebound and prevent deformation, even with significant cylinder return.
  • Durable and aesthetically pleasing all-aluminum alloy handwheels.
  • Special plunger design with a custom sealing structure for an excellent sealing effect.
  • Strategically placed pressurizing device for stable, tilt-free operation.

Have questions about which press is right for you? Let us help you configure the perfect solution. Contact Our Specialists Now!

Detail & Parts: A Closer Look

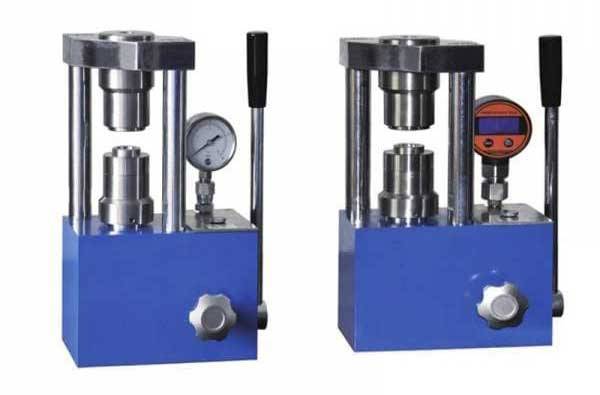

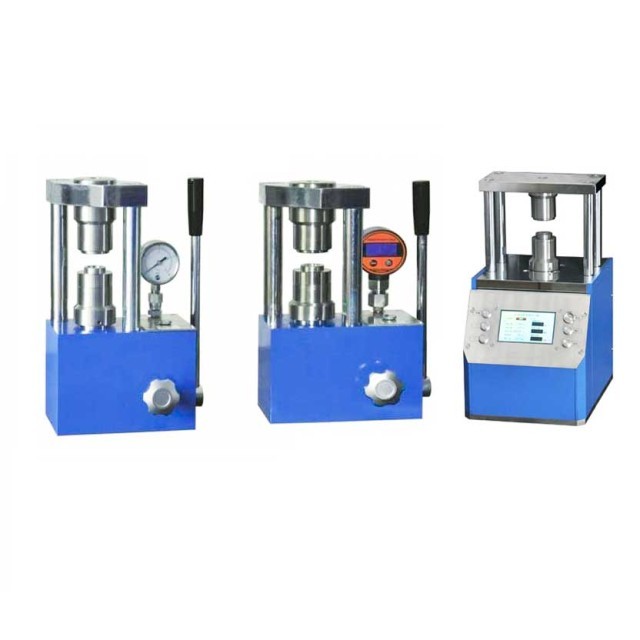

Below are examples of our lab press designs and components, showcasing the quality and precision KINTEK delivers. Note the robust construction and attention to detail, such as options for pointer or digital displays on our Button Battery Presses.

Technical Specifications

We offer a range of manual and automatic lab presses. Below is a comparison of representative models. For detailed specifications on our full range, including heated and isostatic presses, please contact us.

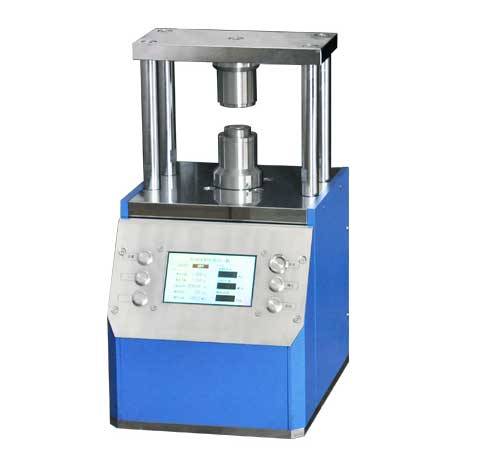

Instrument model	PCBP-2T (Manual)	Instrument model	PCBP-1.5T(Automatic)
Pressure range	0-2T (0-25MPa)	Pressure Range	50-1500kg
Piston diameter	Φ32mm (d)	Pressurization process	Program pressurization-program pressure-timed pressure relief
Integral structure	No sealing connection, oil leakage reduced	Pressure retention time	0-999 seconds
Pressure gauge	Pressure and pressure intensity display	Pressure conversion	The program automatically converts the mold to withstand pressure
Standard die	CR20 series packaging die	LCD display	4.3-inch LCD screen
Sealing die	CR16,CR20,CR24,CR30optional	Sealing mold	Optional CR16,CR20,CR24,CR30,etc
Sealing pressure	0.8-1.2Ton	Shell removal mold	Optional CR16,CR20,CR24,CR30,etc
Disassembly die	CR16,CR20,CR24 optional	Standard mold	Standard CR20 series packaging mold
Disassembly pressure		External dimensions	220x240x380(LXWXH)
Dimensions	210×165×290mm(L×W×H)	Equipment power supply	220V(50Hz/60Hz)
Weight	12Kg	Equipment weight	35kg
Dimensional diagram

Operating Steps: Example with Automatic Button Battery Crimper

Our lab presses are designed for straightforward operation. The following steps illustrate the ease of use for our automatic button battery crimping machines.

For detailed instructions on specific models, including accessory replacement and precautions, please refer to your user manual or consult our online resources.

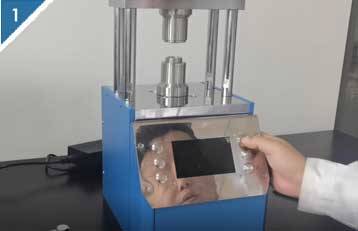

Step 1: Power on the automatic sealer.

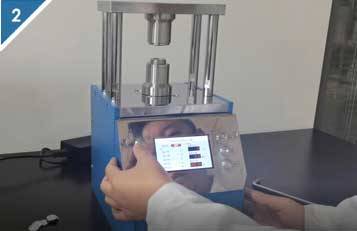

Step 2: Press the Settings button to enter the settings menu.

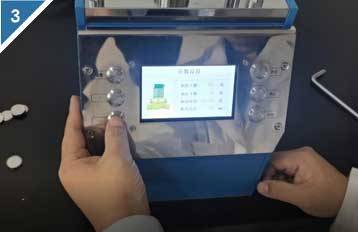

Step 3: Adjust the maximum pressure and packing time, etc.

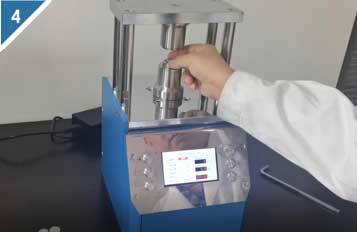

Step 4: Place the coin cell battery case into the mold.

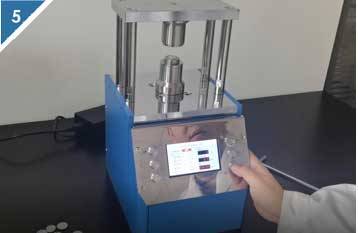

Step 5: Press the Start button to start the sealing process.

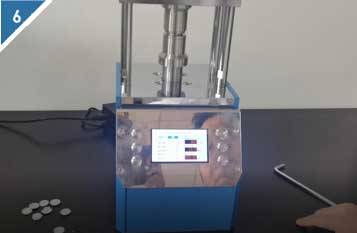

Step 6: Ensure the protective door is closed (for models equipped).

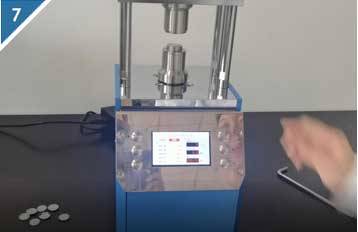

Step 7: The device completes the sealing and relieves the pressure automatically.

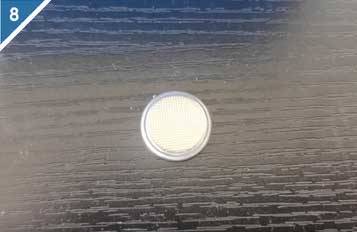

Step 8: Remove the sealed battery case.

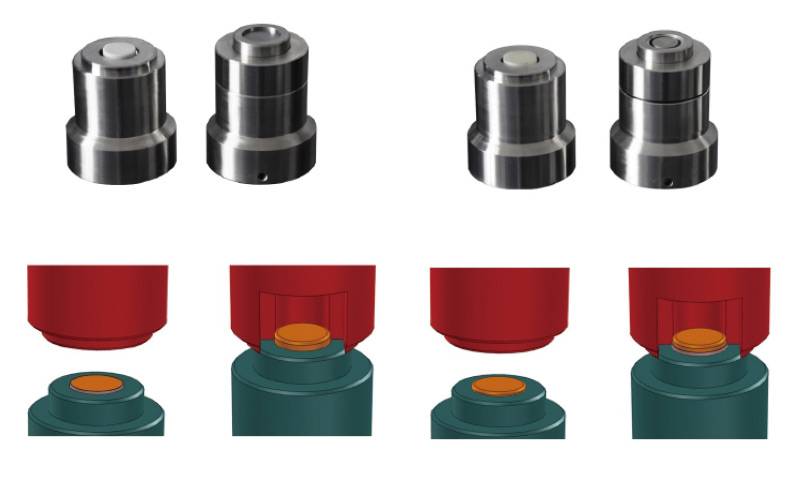

Full range of types of laboratory press molds

We have a full range of molds for you to choose from, and the molds fit the body perfectly.

If you need molds with special shapes, we can also customize them for you.

Click to see all press molds.
