Laboratory Press Molds
Lab Ball Press Mold
Item Number : PMQ
Price varies based on specs and customizations
- Sample size
- Φ6~Φ50mm
- Cavity depth
- 40~60mm
- Indenter hardness
- HRC60-HRC62
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
High-Performance Ball Press Molds for Your Laboratory
KINTEK specializes in lab press machines, including automatic lab presses, lab isostatic presses, and heated lab presses, serving diverse laboratory needs. Our precision-engineered Ball Press Molds are designed as integral components for these systems, empowering you to achieve accurate and repeatable material shaping for your research and production.
Explore Our Mold Designs & Components
Visually inspect the quality and design of our Ball Press Molds. The images below showcase various mold sizes and the typical sample preparation and release processes.
![Spherical mold [Φ3-40mm]](https://image.kinteksolution.com/images/products/99/1OsTkiTUZkkeEBmn8sFU.jpg)

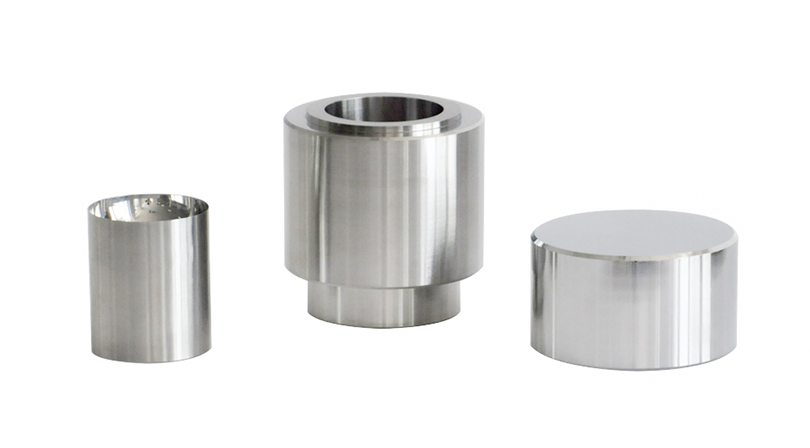

![Spherical mold [Φ41-80mm]](https://image.kinteksolution.com/images/products/99/4UFY2PZgbRJqkB7lzDLf.jpg)
Understanding Ball Press Molds
Ball press molds are specialized tools used in high-pressure applications to shape powders (such as metal or ceramic) into various forms like round, square, or hexagonal shapes. These molds are often used with laboratory presses or large tonnage machines to achieve the necessary pressure for molding. The process can involve electric heating of the mold and the use of hydraulic systems to control pressure and ensure uniform compression of the powder. This technique is crucial for producing precise and durable components, enhancing mechanical bonding and structural integrity in numerous applications.
Advantages of Choosing KINTEK Ball Press Molds
Our ball press molds are engineered to deliver exceptional performance in metal and ceramic powder compaction. They offer a versatile and efficient method for achieving high compact densities, which is particularly beneficial for producing intricate shapes and high-quality parts with uniform pressure and enhanced density. Key benefits include:
-
Versatile Shaping Capabilities: Produce diverse shapes (round, square, rectangular, circular, hexagonal, flat) to meet varied industrial and research geometric requirements.
-
Superior & Uniform Pressure Application: Benefit from designs optimized for processes like isostatic pressing, ensuring high, uniform pressure distribution and minimizing die wall friction. This leads to higher compact densities and superior part quality.
-
High-Precision Dimensions: Achieve exceptional precision, especially for inner diameters of pressed shapes, ideal for applications with tight dimensional tolerances.
-
Efficient Production Workflow: Streamline your processes with features like dry bag isostatic pressing compatibility, which can integrate rubber tooling into the apparatus. This reduces handling steps, boosts production rates, and facilitates automation.
-
Optional Heat Integration: Leverage compatibility with hydraulic hot presses, where heat can be incorporated to improve material flow, ensure complete mold cavity filling, and reduce defects such as flow lines and blisters.
-
Robust Large Tonnage Capability: Our molds are suitable for use with large tonnage machines, ideal for molding large cross-sectional areas requiring significant pressure, adapting to diverse industrial demands.
-
Advanced Design for Control & Efficiency: Benefit from designs that consider factors like energy storage through high-pressure oil in associated press systems, allowing for precise control and immediate unloading when needed, enhancing operational efficiency and safety.
These features collectively make KINTEK ball press molds an essential tool for laboratories and industries seeking high-quality, precise, and versatile powder compaction solutions.
Technical Specifications
| Instrument model | PMQ | |
|---|---|---|
| Sample shape |  |
|
| Die heating | Alloy tool steel :Cr12MoV | |
| Indenter hardness | HRC60-HRC62 | |
| Sample size | Φ6、Φ8、Φ10、Φ15、Φ20mm (M) | Φ30、Φ40、Φ50 mm (M) |
| Cavity depth | 40mm (N) | 60 mm (N) |
| Dimensions | Φ53*120mm (L*H) | Φ88*150 mm (L*H) |
| Weight | 1.4kg | 5.8kg |

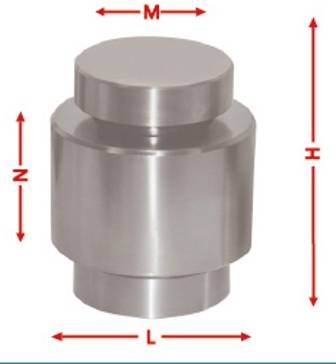

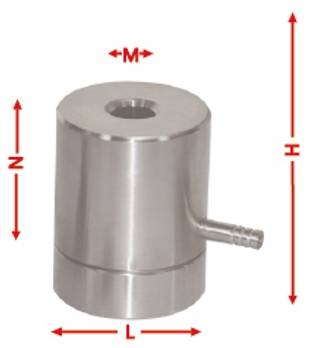

| Diagram of hydraulic powder press size |  |
 |
Versatile Applications Across Key Industries
KINTEK ball press molds are essential tools for material compaction and shaping under high pressure in numerous fields. They are particularly vital in:
- Powder Metallurgy: Used for compacting metal powders into desired shapes before sintering, ensuring high density and strength in the final product.
- Ceramic Manufacturing: Essential for creating intricate ceramic pieces with uniform density, suitable for high-performance applications like insulators and advanced ceramics.
- Rubber Processing: Employed in the production of rubber products through hydraulic vulcanization, ensuring uniform heating and shaping of rubber materials.
- Pharmaceutical Industry: Used for tablet manufacturing, where precise pressure and shape are crucial for dosage accuracy and product integrity.
- Advanced Materials Research: Involved in the development of new materials and composites, where controlled pressure and shape are necessary for research and prototyping.
Simple & Effective Operation for Your Experiments
Our spherical molds, ideal for pharmaceutical applications and small-batch testing, are designed for ease of use:

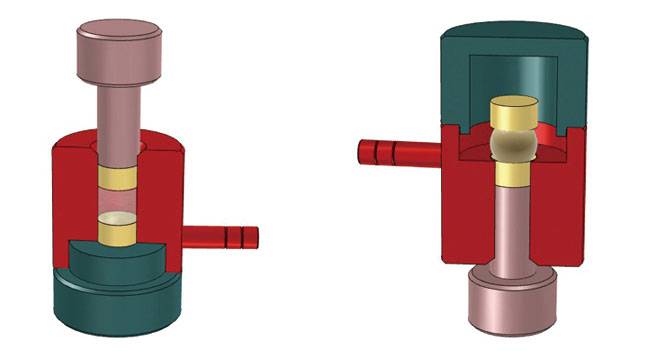

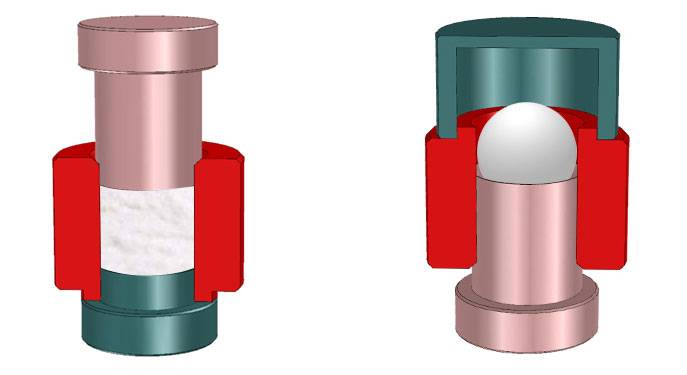

1.Assemble the die according to the operation diagram and install the sample in the cavity.
2.Put the die in the center of the hydraulic press and pressurize to required pressure.
3.Assemble the die according to the release diagram ,eject the sample out of the die bushing with the screw rod.
4.Take out the die from the hydraulic press , and remove the sample gently.
Partner with KINTEK for Your Pressing Needs
Elevate your laboratory's material processing capabilities with KINTEK's precision-engineered ball press molds. Our expertise in lab press technology ensures you receive molds that deliver precision, durability, and efficiency. Whether you're working with metal powders, ceramics, or other materials, our molds provide the reliability and versatility you need.
Ready to find the perfect mold solution? Our team is here to help you select the right standard mold or discuss custom designs tailored to your specific requirements. Contact us today for expert advice, detailed specifications, or a personalized quote.
Please fill out our Contact Form, and a KINTEK specialist will respond promptly to support your project.
