Laboratory Press Molds

XRF KBR Steel Ring Lab Powder Pellet Pressing Mold for FTIR

Item Number : PMXS

Price varies based on specs and customizations

Sample size: Φ32mm, Φ40mm
Die material: Alloy tool steel: Cr12MoV
Indenter hardness: HRC60-HRC62

Shipping:

Description
Downloads

View Specs Request Your Custom Quote 👋

Request Quote

Live Chat View Specs

Why Choose Us

Easy ordering process, quality products, and dedicated support for your business success.

Easy Process Quality Assured Dedicated Support

XRF Steel Ring Lab Powder Pellet Pressing Mold: Precision Sample Preparation

Our XRF Steel Ring Lab Powder Pellet Pressing Mold is engineered for the precise and efficient preparation of samples for X-ray fluorescence (XRF) spectrometry. It's an essential tool for laboratories requiring high-quality pellets for accurate analysis. This mold utilizes a robust stainless steel ring to provide excellent support for your samples, ensuring rapid tableting and consistently superior molding results.

Key Features & Benefits

Optimized for XRF Analysis: Specifically designed for creating ideal samples for XRF spectrometers.
Enhanced Sample Integrity: Features a stainless steel support ring for durable and well-supported pellets.
Efficient Processing: Achieves fast tableting speeds, improving laboratory workflow and productivity.
Superior Molding Results: Consistently produces high-quality, well-formed pellets essential for accurate measurements.
Standard Pellet Dimensions: Typically produces tablets with an outer diameter of 40mm, an inner sample diameter of 32mm, and a pressing thickness of 5-8mm. (Standard sample sizes include Φ32mm and Φ40mm as per specifications below).

Detailed View & Components

Explore the design and components of our XRF Steel Ring Lab Powder Pellet Pressing Mold.

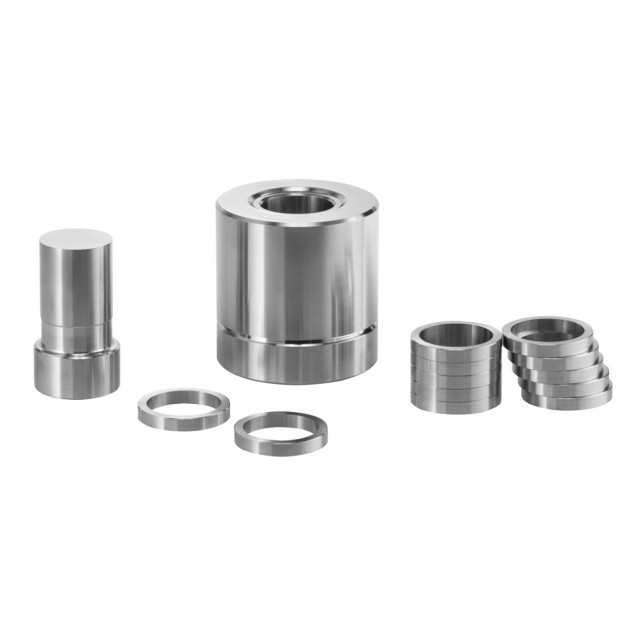

XRF & KBR steel ring lab Powder Pellet Pressing Mold components

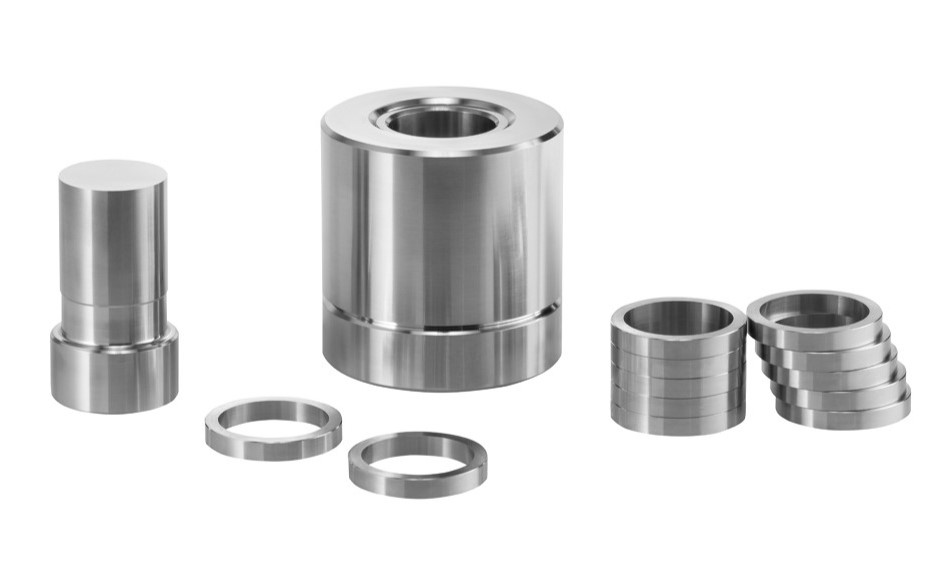

Detailed view of XRF & KBR steel ring lab Powder Pellet Pressing Mold (New model) — XRF & KBR steel ring lab Powder Pellet Pressing Mold details (New model)

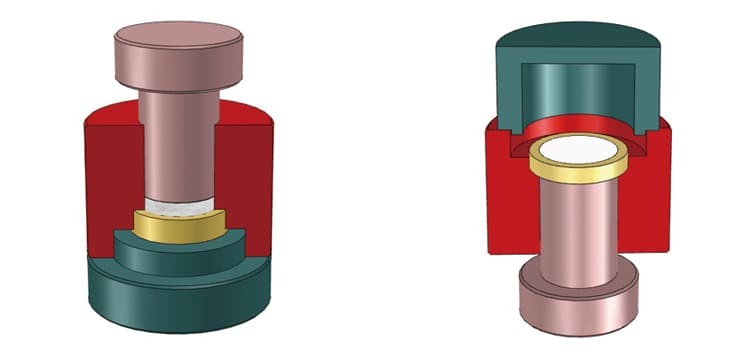

Illustration of sample preparation and demolding process — Sample preparation process and demolding process

Technical Specifications

Our molds are built with high-quality materials for durability and performance, ensuring reliable sample preparation for your laboratory needs.

Instrument model		PMXS
Sample shape
Die material		Alloy tool steel: Cr12MoV
Indenter hardness		HRC60-HRC62
Sample size		Φ32mm, Φ40mm (M)
Cavity depth		45mm (N)
Dimensions		Φ73133mm (LH)
Weight		3.2Kg
Diagram of hydraulic powder press size

Simple Operation Steps

Follow these easy steps to prepare your samples using the XRF Steel Ring Mold:

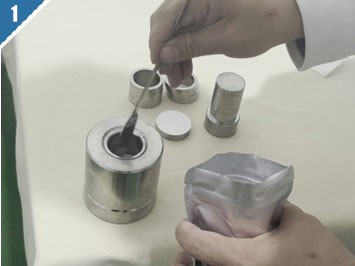

Step 1: Assemble the mold and install sample material.

Step 1: Assemble the mold according to the operation diagram and place your sample material inside the cavity.

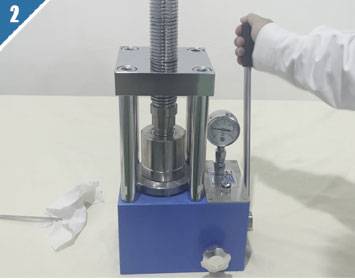

Step 2: Place mold in tablet press and apply pressure.

Step 2: Place the assembled mold in the center of your tablet press and apply the required pressure to form the pellet.

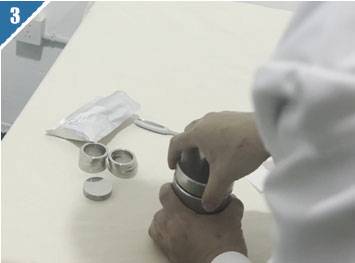

Step 3: Reconfigure mold for demolding and eject sample.

Step 3: Reconfigure the mold for demolding as per the withdrawal diagram. Place it back in the press and use the designated mechanism (e.g., screw) to eject the sample from the mold sleeve.

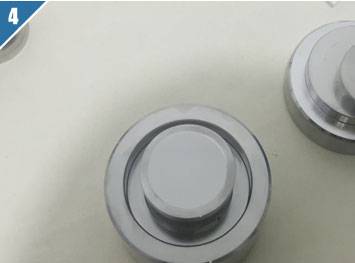

Step 4: Remove mold and retrieve prepared sample pellet.

Step 4: Carefully remove the mold from the press and gently retrieve your prepared sample pellet.

Customization & Inquiries

At KINTEK, we specialize in laboratory press machines and accessories, understanding that standard sizes may not always meet every unique laboratory requirement. We offer customization services for our press molds to match your specific needs.

Need a special size or have questions about our XRF Steel Ring Lab Powder Pellet Pressing Mold? Our expert team is ready to assist you. Please contact us through our inquiry form, and we'll be happy to discuss your requirements and provide a tailored solution to enhance your laboratory's capabilities.

Full range of types of laboratory press molds

We have a full range of molds for you to choose from, and the molds fit the body perfectly.

If you need molds with special shapes, we can also customize them for you.

laboratory press mold

Click to see all press molds.

The Right Lab Press Awaits

The right lab press for your needs awaits

See All Lab Press Types.

Expert Advice? We're Here. Get in Touch!

Trusted by Industry Leaders

FAQ

What Are The Main Applications Of Press Molds In Laboratories?

Press molds are widely used in pharmaceutical development for creating uniform tablets, in spectroscopy for sample preparation, in bomb calorimetry for consistent combustion measurement, and in XRF analysis for determining elemental composition. They help in providing standardized samples for accurate testing and analysis across these fields.

What Are The Main Applications Of A Laboratory Pellet Press?

Laboratory pellet presses are widely used in various fields including materials science (for preparing metal, ceramic, and plastic samples), chemistry (for catalysts and electrode materials), geology (for rock and ore samples), materials characterization (such as SEM and XRD analysis), energy sector (for battery electrodes and fuel cells), medicine (for drug preparation), and food/agriculture (for food ingredient samples). They are also essential in pharmaceutical analysis, environmental analysis, and material science research.

What Are The Main Applications Of A KBr Pellet Press?

A KBr pellet press is used in various industries and scientific research for forming precise pharmaceutical tablets, crafting uniform samples in materials science for testing properties like tensile strength and thermal conductivity, and optimizing manufacturing processes for ceramic and metal alloy samples. It is also vital for producing homogenous, high-density fuel pellets in nuclear energy, which directly affects reactor performance.

What Types Of Press Molds Are Available For Laboratory Use?

There are various types of press molds available, including square bidirectional pressure molds, ring press molds, ball press molds, cylindrical press molds, anti-cracking press molds, polygon press molds, and special shape press molds. These molds come in different sizes and materials to suit various laboratory needs.

What Features Should I Consider When Choosing A Laboratory Pellet Press?

When selecting a laboratory pellet press, consider factors such as sample volume, pressure requirements, and space constraints. Key features to evaluate include force gauges for precise pressure control, heated platens for materials that require heat, and customization options like interchangeable dies and plungers. Additionally, look for durability, ease of operation, and the ability to handle specific materials relevant to your research or industry.

What Are The Key Features Of A KBr Pellet Press?

The key features of a KBr pellet press include full hydraulic operation for precise pressure application, an integrated pressure gauge for real-time feedback, a user-friendly design for ease of use, low cost of ownership due to durability and minimal maintenance, and suitability for producing high-quality pellets for FTIR analysis.

What Are The Key Features Of Laboratory Press Molds?

Laboratory press molds feature precision-engineered hydraulic systems for consistent performance. Advanced models may include digital pressure displays and programmable settings. They are available in both manual and automated versions, with sizes ranging from compact benchtop units to larger floor-standing presses to accommodate different laboratory spaces and sample sizes.

How Does A Laboratory Pellet Press Work?

A laboratory pellet press operates using a hydraulic cylinder to apply controlled pressure to materials, compressing them into pellets. Some models also include a heating system for temperature control, which is useful for processing materials like rubber, polymers, and composites. The press allows for precise adjustment of pressure and speed, ensuring reproducible results and efficient batch production.

How Does A KBr Pellet Press Work?

The KBr pellet method is based on the fact that potassium bromide becomes plastic under high pressure and forms a transparent matrix when compressed. This matrix allows infrared light to pass through, making it ideal for IR spectroscopy. The sample is mixed with KBr powder in a specific ratio (typically 1:100 to 1:200, sample to KBr) to ensure even distribution and minimal blockage of IR light.

What Materials Are Commonly Used To Make Press Molds?

Press molds are typically made from durable materials such as Cr12MoV alloy steel, carbide (e.g., YT15), and hardened steel. These materials are chosen for their high hardness, durability, and resistance to wear and high pressure, ensuring long-lasting performance in laboratory environments.

What Are The Advantages Of Using A Laboratory Pellet Press?

The advantages of using a laboratory pellet press include precise control over pressure and temperature, high adjustability in terms of pressure and speed, capability for batch production, and the ability to produce reproducible results. These presses are versatile, handling both pellets and powders efficiently, and are designed for time and cost efficiency. They are also easy to operate and built with durable materials for long-term reliability in laboratory settings.

What Are The Advantages Of Using A KBr Pellet Press?

The advantages include transparency to IR radiation for clear spectral analysis, versatility with a wide range of solid samples, and high reproducibility ensuring consistent results. Additionally, it offers high sensitivity for detecting trace amounts due to thin and uniform sample distribution, minimal sample preparation with quick and efficient steps, and versatility suitable for a wide range of solid samples, including polymers, pharmaceuticals, and inorganic compounds.

What Are The Advantages Of Using Press Molds In Laboratories?

Press molds offer several advantages, including quick setting changes and easy switching between different sample types and materials. This flexibility is not typically available in production presses or injection molding machines, which are more cumbersome and time-consuming for such transitions. Additionally, press molds provide high precision and uniformity in sample preparation.

What Types Of Laboratory Pellet Presses Are Available?

There are several types of laboratory pellet presses available, including manual hydraulic presses, automatic hydraulic presses, and split electric presses. Manual presses are ideal for basic applications, while automatic presses offer enhanced precision and efficiency for more demanding tasks. Split electric presses provide advanced pressure control and are compact, making them suitable for versatile applications. Additionally, there are specialized presses like isostatic presses and those designed for glove box use or specific analytical techniques like XRF and FTIR.

What Are The Drawbacks Of Manual KBr Pellet Presses?

Manual presses are portable, simple to use without complex machinery, and cost-effective. However, they can be labor-intensive for large batches and may have difficulty maintaining consistent pressure across samples.

Can Press Molds Be Customized For Specific Laboratory Needs?

Yes, many press molds can be customized in terms of size, shape, and material to meet specific laboratory requirements. Customizable options include special shapes, sizes ranging from Φ3-80mm, and materials tailored for specific applications such as XRF analysis, battery research, or material testing.

How Do Press Molds Ensure High-precision Sample Preparation?

Press molds ensure high-precision sample preparation through their precision-engineered designs, which provide uniform pressure and consistent compaction. Features such as bidirectional pressure, durable materials, and advanced hydraulic systems contribute to the accuracy and reliability of the samples produced.

What Are The Benefits Of Using Heated Press Molds?

Heated press molds offer benefits such as rapid heating (up to 500°C), precise temperature control, and the ability to process materials that require heat for compaction or bonding. These molds are ideal for applications in battery research, ceramics, and other materials that need controlled heating during preparation.

How Do Press Molds Contribute To Efficient Laboratory Workflows?

Press molds enhance laboratory efficiency by enabling quick and easy sample preparation with minimal setup time. Their ability to switch between different sample types and materials rapidly, along with features like programmable settings and digital displays, streamlines the workflow and reduces downtime.

What Should I Consider When Choosing A Press Mold For My Laboratory?

When selecting a press mold, consider factors such as the type of samples you will be preparing, the required pressure and temperature ranges, the size and shape of the molds, and the material compatibility. Additionally, evaluate whether manual or automated models better suit your workflow and if any customization options are needed for your specific applications.
