Square Lab Press Mold for Laboratory Use

Laboratory Press Molds

Square Lab Press Mold for Laboratory Use

Item Number : PMS

Price varies based on specs and customizations


Material
Cr12MoV
Indenter hardness
HRC60-HRC62
Sample size
3×3 mm to 200×200 mm
ISO & CE icon

Shipping:

Contact us to get shipping details Enjoy On-time Dispatch Guarantee.

Get Quote

Why Choose Us

Reliable Partner

Easy ordering process, quality products, and dedicated support for your business success.

Easy Process Quality Assured Dedicated Support

KINTEK's Square Lab Press Molds are expertly designed for creating uniform, slender strip samples with ease. Featuring a comprehensive range of sizes and interchangeable accessories, these molds are an essential tool for diverse laboratory applications. Explore the details and discover how they can enhance your sample preparation process.

Detail & Parts

Square mold [width 3-10mm]
Square mold [width 3-10mm]

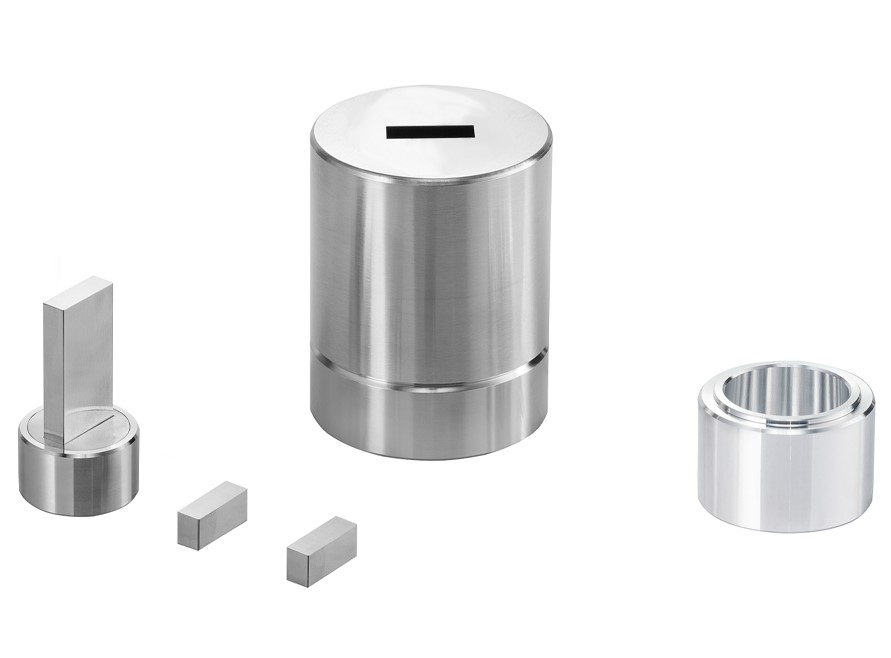

Square mold [width 11-20mm]
Square mold [width 11-20mm]
Square mold [width 21-30mm]
Square mold [width 21-30mm]
Square mold [width 31-40mm]
Square mold [width 31-40mm]
Square mold [width 41-80mm]
Square mold [width 41-80mm]

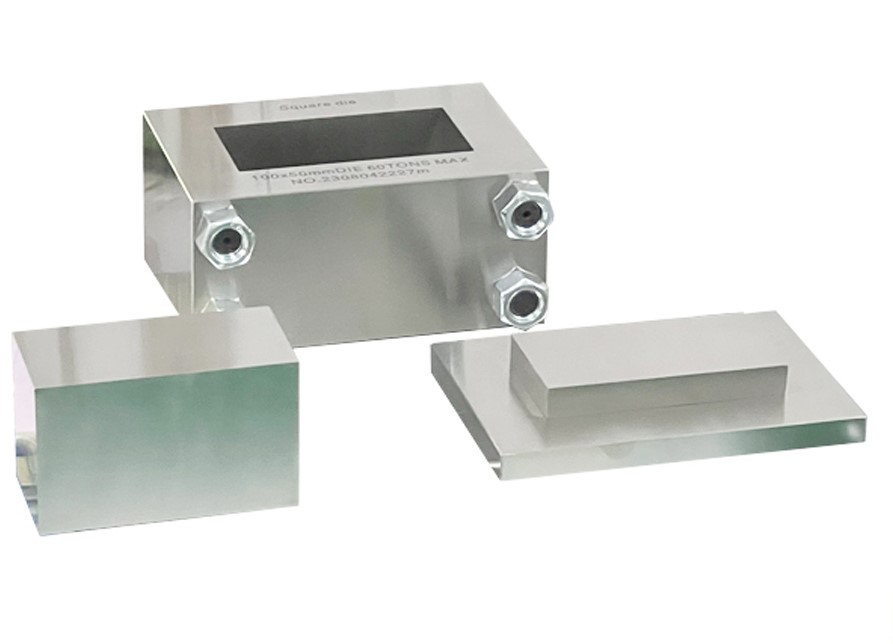

Splicing square mold [width 81-150mm]
Splicing square mold [width 81-150mm]
Splicing square mold [width 151-200mm]
Splicing square mold [width 151-200mm]
Square splicing mold
Square splicing mold
Sample preparation process and demolding process
Sample preparation process and demolding process
Sample preparation process and demolding process
1) Sample Preparation Process  2)Release Process

Key Features & Benefits

Our Square Lab Press Molds are engineered for precision and longevity, offering significant advantages for your laboratory work:

  • High-Quality Material: Crafted from Japanese high-speed steel (Cr12MoV), these molds exhibit high hardness (indenter hardness HRC60-HRC62), ensuring they are resistant to deformation and offer a long service life.
  • Versatile Design: Ideal for forming easy-to-shape slender strip samples. We provide a complete range of mold sizes with interchangeable accessories, offering flexibility for various research needs.
  • Consistent Performance: Achieve reliable and repeatable sample preparation thanks to the robust construction and precision engineering of our molds.

Technical Specifications

Below are the standard specifications for our Square Lab Press Molds. Please review the details to find the model that best suits your requirements.

Model PMS-A PMS-B PMS-C PMS-D PMS-E PMS-F PMS-G
Material Cr12MoV
Indenter hardness HRC60-HRC62
Sample size 3×3 /4×4 /5×5 /6×6 /8×8 /10×10 mm 12×12 /15×15 /16×16 /18×18 /20×20 mm 22×22 /25×25 /30×30 mm 32×32 /35×35 /40×40 mm 50×50 /60×60 /70×70 mm 81-150 mm(long side) 151-200 mm(long side)
Cavity depth 20 mm 30 mm 40 mm 45 mm 55/60/65 mm 60 mm 60 mm
External dimensions φ43×93mm φ53×120mm φ73×133mm φ88×150mm φ98×150mm/φ118×180mm/φ138×180mm 160×140mm 220×160mm
Weight(Kg) 0.65 1.2 2.4 4.8 7.3/11.4/20 25kg-40kg 45kg-80kg
Other sizes can be customized. Contact us for details.

Wide Range of Applications

KINTEK's Square Lab Press Molds are indispensable tools across numerous scientific and industrial fields. Their robust design and precision make them suitable for:

  • Battery material research and development
  • Superconductor material preparation
  • Cement and ceramics analysis
  • Catalysis studies
  • Silicate testing
  • Powder metallurgy
  • Sea mud analysis
  • Biochemical analysis
  • New material sample preparation

Additionally, these molds are compatible for use with various analytical instruments, including calcium iron testers, infrared spectrometers, X-ray fluorescence (XRF) analyzers, and other testing equipment, facilitating comprehensive sample characterization.

Easy Operation Steps

Our rectangular molds are designed for straightforward use, particularly for samples that are easy to form and require a slender strip shape. The simple structure ensures easy operation:

Step 1: Assemble the die according to the operation diagram and install the sample in the cavity.

Step 1: Assemble the die according to the operation diagram and place the sample material into the cavity.

Step 2: Place the Mold in the Press.

Step 2: Position the assembled die in the center of your hydraulic press. Apply pressure as required for your sample.

Step 3: Eject the sample.

Step 3: After pressing, assemble the die for sample release. Use the screw rod (if applicable) to carefully eject the formed sample from the die bushing.

Step 4: Remove the sample.

Step 4: Take the die out of the hydraulic press. Gently remove the sample from the mold components.

Custom Molds & Inquiries

At KINTEK, we understand that standard dimensions may not always fit your unique research needs. We are pleased to offer customization services for our Square Lab Press Molds. If you require specific dimensions or have unique design considerations, our team is ready to assist.

To discuss your custom requirements, request a quote, or for any further information about our lab press molds, please contact us through our inquiry form. We are committed to providing you with the perfect sample preparation solution.

Full range of types of laboratory press molds

We have a full range of molds for you to choose from, and the molds fit the body perfectly.

If you need molds with special shapes, we can also customize them for you.

laboratory press mold

Click to see all press molds.

The Right Lab Press Awaits

The right lab press for your needs awaits

See All Lab Press Types.

Expert Advice? We're Here. Get in Touch!

FAQ

What Are The Main Applications Of Press Molds In Laboratories?

Press molds are widely used in pharmaceutical development for creating uniform tablets, in spectroscopy for sample preparation, in bomb calorimetry for consistent combustion measurement, and in XRF analysis for determining elemental composition. They help in providing standardized samples for accurate testing and analysis across these fields.

What Types Of Press Molds Are Available For Laboratory Use?

There are various types of press molds available, including square bidirectional pressure molds, ring press molds, ball press molds, cylindrical press molds, anti-cracking press molds, polygon press molds, and special shape press molds. These molds come in different sizes and materials to suit various laboratory needs.

What Are The Key Features Of Laboratory Press Molds?

Laboratory press molds feature precision-engineered hydraulic systems for consistent performance. Advanced models may include digital pressure displays and programmable settings. They are available in both manual and automated versions, with sizes ranging from compact benchtop units to larger floor-standing presses to accommodate different laboratory spaces and sample sizes.

What Materials Are Commonly Used To Make Press Molds?

Press molds are typically made from durable materials such as Cr12MoV alloy steel, carbide (e.g., YT15), and hardened steel. These materials are chosen for their high hardness, durability, and resistance to wear and high pressure, ensuring long-lasting performance in laboratory environments.

What Are The Advantages Of Using Press Molds In Laboratories?

Press molds offer several advantages, including quick setting changes and easy switching between different sample types and materials. This flexibility is not typically available in production presses or injection molding machines, which are more cumbersome and time-consuming for such transitions. Additionally, press molds provide high precision and uniformity in sample preparation.

Can Press Molds Be Customized For Specific Laboratory Needs?

Yes, many press molds can be customized in terms of size, shape, and material to meet specific laboratory requirements. Customizable options include special shapes, sizes ranging from Φ3-80mm, and materials tailored for specific applications such as XRF analysis, battery research, or material testing.

How Do Press Molds Ensure High-precision Sample Preparation?

Press molds ensure high-precision sample preparation through their precision-engineered designs, which provide uniform pressure and consistent compaction. Features such as bidirectional pressure, durable materials, and advanced hydraulic systems contribute to the accuracy and reliability of the samples produced.

What Are The Benefits Of Using Heated Press Molds?

Heated press molds offer benefits such as rapid heating (up to 500°C), precise temperature control, and the ability to process materials that require heat for compaction or bonding. These molds are ideal for applications in battery research, ceramics, and other materials that need controlled heating during preparation.

How Do Press Molds Contribute To Efficient Laboratory Workflows?

Press molds enhance laboratory efficiency by enabling quick and easy sample preparation with minimal setup time. Their ability to switch between different sample types and materials rapidly, along with features like programmable settings and digital displays, streamlines the workflow and reduces downtime.

What Should I Consider When Choosing A Press Mold For My Laboratory?

When selecting a press mold, consider factors such as the type of samples you will be preparing, the required pressure and temperature ranges, the size and shape of the molds, and the material compatibility. Additionally, evaluate whether manual or automated models better suit your workflow and if any customization options are needed for your specific applications.
