Lab XRF Boric Acid Powder Pellet Pressing Mold for Laboratory Use

Item Number : PMXB

Price varies based on specs and customizations

Standard Sample Sizes: Φ32mm, Φ40mm
Mold Material: Alloy tool steel: C-12Nov
Indenter Hardness: HRC60-HRC62

Shipping:

Description
Downloads

View Specs Request Your Custom Quote 👋

Request Quote

Live Chat View Specs

Why Choose Us

Easy ordering process, quality products, and dedicated support for your business success.

Easy Process Quality Assured Dedicated Support

Precision Sample Preparation: XRF Boric Acid Powder Pellet Pressing Mold

The KINTEK XRF Boric Acid Powder Pellet Pressing Mold is expertly designed for creating high-quality, consistent pellets from boric acid-mixed powder samples. This is essential for accurate X-ray Fluorescence (XRF) spectrometry analysis, ensuring reliable and reproducible results in your laboratory.

Our molds are built for durability and precision, making your sample preparation process efficient and effective. Achieve uniform pellets every time, minimizing variability and enhancing the quality of your analytical data.

Key Features & Benefits:

Superior Sample Quality: Produces smooth, dense, and homogenous pellets ideal for XRF analysis.
Durable Construction: Crafted from high-grade alloy tool steel (C-12Nov) with an indenter hardness of HRC60-HRC62, ensuring long service life and resistance to wear.
Optimized Design: Specifically engineered for wrapping samples in boric acid and pressing them into solid forms suitable for all X-ray fluorescence spectrometers.
Ease of Use: Simple assembly, operation, and demolding process.
Versatile Sizing: Standard sample sizes of Φ32mm and Φ40mm available, with custom sizes upon request.

Detailed Components & Operation

The mold set includes all necessary parts for efficient pellet preparation. Below is an illustration of the mold components and a typical sample preparation workflow.

XRF Boric Acid lab Powder Pellet Pressing Mold details — Assembled XRF Boric Acid Lab Powder Pellet Pressing Mold

Technical Specifications

Instrument model	PMXB

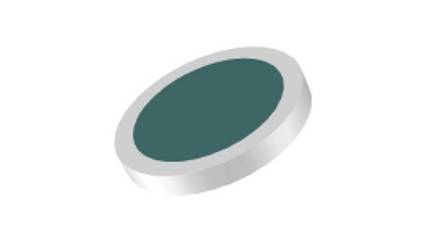

Pressed Sample Shape & Typical Outcome
Mold Material	Alloy tool steel: C-12Nov
Indenter Hardness	HRC60-HRC62
Standard Sample Sizes	Φ32mm, Φ40mm
Depth of Cavity	45mm (N)
External Dimensions (Diameter x Height)	Φ73mm X 133mm
Mold Weight	3.2Kg

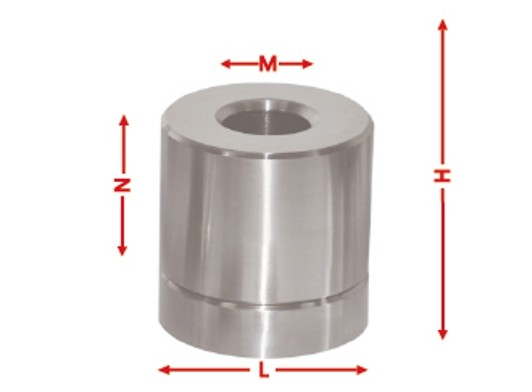

Size Diagram

Mold Pressure Conversion Table

Pressure [MPa]	50	100	200	300	400	600	800	1000	1200	1500
Force for Φ32mm Sample [Tons]	4.02	8.04	16	24.1	32.1	48.2	64.3	80.4	96.5	120
Force for Φ40mm Sample [Tons]	6.28	12.5	25.1	37.6	50.2	75.3	100	125	150	188
Tip: The mold is optimally used in the 100-800 MPa range. The maximum pressure limit for the mold is 1500 MPa.

Simple Operation Steps

Prepare your XRF samples efficiently. Standard die sheet size is outer diameter 40mm (for a Φ32mm sample) or Φ40mm sample, with typical pellet thickness of 5-8mm.

Step 1: Assemble the die and install the sample.

Step 1: Assemble the die according to the operation diagram. Place the boric acid-mixed sample powder into the die cavity.

Step 2: Pressurize the die in a hydraulic press.

Step 2: Position the assembled die in the center of your laboratory press. Apply the required pressure based on your sample and desired pellet density.

Step 3: After pressing, reconfigure the die for demolding (as per the release diagram). Carefully eject the formed pellet from the die sleeve, typically using the press or a dedicated ejector.

Step 4: Gently retrieve the finished pellet. Your sample is now optimally prepared for XRF analysis.

Customization and Expert Support

KINTEK specializes in a comprehensive range of lab press machines, including automatic lab presses, lab isostatic presses, and heated lab presses, alongside essential accessories like this pellet pressing mold.

Do you have unique sample preparation needs? We offer customization services for special die sizes and configurations to perfectly match your specific laboratory requirements. Our experienced team is here to help you select or design the ideal solution.

Ready to improve your XRF sample preparation process? For inquiries, custom requests, or to get a quote for the XRF Boric Acid Powder Pellet Pressing Mold, please contact us using the form below. We look forward to assisting you!

Full range of types of laboratory press molds

We have a full range of molds for you to choose from, and the molds fit the body perfectly.

If you need molds with special shapes, we can also customize them for you.

laboratory press mold

Click to see all press molds.

The Right Lab Press Awaits

The right lab press for your needs awaits

See All Lab Press Types.

Expert Advice? We're Here. Get in Touch!

Trusted by Industry Leaders

FAQ

What Are The Main Applications Of Press Molds In Laboratories?

Press molds are widely used in pharmaceutical development for creating uniform tablets, in spectroscopy for sample preparation, in bomb calorimetry for consistent combustion measurement, and in XRF analysis for determining elemental composition. They help in providing standardized samples for accurate testing and analysis across these fields.

What Are The Main Applications Of A Laboratory Pellet Press?

Laboratory pellet presses are widely used in various fields including materials science (for preparing metal, ceramic, and plastic samples), chemistry (for catalysts and electrode materials), geology (for rock and ore samples), materials characterization (such as SEM and XRD analysis), energy sector (for battery electrodes and fuel cells), medicine (for drug preparation), and food/agriculture (for food ingredient samples). They are also essential in pharmaceutical analysis, environmental analysis, and material science research.

What Are The Main Applications Of A KBr Pellet Press?

A KBr pellet press is used in various industries and scientific research for forming precise pharmaceutical tablets, crafting uniform samples in materials science for testing properties like tensile strength and thermal conductivity, and optimizing manufacturing processes for ceramic and metal alloy samples. It is also vital for producing homogenous, high-density fuel pellets in nuclear energy, which directly affects reactor performance.

What Types Of Press Molds Are Available For Laboratory Use?

There are various types of press molds available, including square bidirectional pressure molds, ring press molds, ball press molds, cylindrical press molds, anti-cracking press molds, polygon press molds, and special shape press molds. These molds come in different sizes and materials to suit various laboratory needs.

What Features Should I Consider When Choosing A Laboratory Pellet Press?

When selecting a laboratory pellet press, consider factors such as sample volume, pressure requirements, and space constraints. Key features to evaluate include force gauges for precise pressure control, heated platens for materials that require heat, and customization options like interchangeable dies and plungers. Additionally, look for durability, ease of operation, and the ability to handle specific materials relevant to your research or industry.

What Are The Key Features Of A KBr Pellet Press?

The key features of a KBr pellet press include full hydraulic operation for precise pressure application, an integrated pressure gauge for real-time feedback, a user-friendly design for ease of use, low cost of ownership due to durability and minimal maintenance, and suitability for producing high-quality pellets for FTIR analysis.

What Are The Key Features Of Laboratory Press Molds?

Laboratory press molds feature precision-engineered hydraulic systems for consistent performance. Advanced models may include digital pressure displays and programmable settings. They are available in both manual and automated versions, with sizes ranging from compact benchtop units to larger floor-standing presses to accommodate different laboratory spaces and sample sizes.

How Does A Laboratory Pellet Press Work?

A laboratory pellet press operates using a hydraulic cylinder to apply controlled pressure to materials, compressing them into pellets. Some models also include a heating system for temperature control, which is useful for processing materials like rubber, polymers, and composites. The press allows for precise adjustment of pressure and speed, ensuring reproducible results and efficient batch production.

How Does A KBr Pellet Press Work?

The KBr pellet method is based on the fact that potassium bromide becomes plastic under high pressure and forms a transparent matrix when compressed. This matrix allows infrared light to pass through, making it ideal for IR spectroscopy. The sample is mixed with KBr powder in a specific ratio (typically 1:100 to 1:200, sample to KBr) to ensure even distribution and minimal blockage of IR light.

What Materials Are Commonly Used To Make Press Molds?

Press molds are typically made from durable materials such as Cr12MoV alloy steel, carbide (e.g., YT15), and hardened steel. These materials are chosen for their high hardness, durability, and resistance to wear and high pressure, ensuring long-lasting performance in laboratory environments.

What Are The Advantages Of Using A Laboratory Pellet Press?

The advantages of using a laboratory pellet press include precise control over pressure and temperature, high adjustability in terms of pressure and speed, capability for batch production, and the ability to produce reproducible results. These presses are versatile, handling both pellets and powders efficiently, and are designed for time and cost efficiency. They are also easy to operate and built with durable materials for long-term reliability in laboratory settings.

What Are The Advantages Of Using A KBr Pellet Press?

The advantages include transparency to IR radiation for clear spectral analysis, versatility with a wide range of solid samples, and high reproducibility ensuring consistent results. Additionally, it offers high sensitivity for detecting trace amounts due to thin and uniform sample distribution, minimal sample preparation with quick and efficient steps, and versatility suitable for a wide range of solid samples, including polymers, pharmaceuticals, and inorganic compounds.

What Are The Advantages Of Using Press Molds In Laboratories?

Press molds offer several advantages, including quick setting changes and easy switching between different sample types and materials. This flexibility is not typically available in production presses or injection molding machines, which are more cumbersome and time-consuming for such transitions. Additionally, press molds provide high precision and uniformity in sample preparation.

What Types Of Laboratory Pellet Presses Are Available?

There are several types of laboratory pellet presses available, including manual hydraulic presses, automatic hydraulic presses, and split electric presses. Manual presses are ideal for basic applications, while automatic presses offer enhanced precision and efficiency for more demanding tasks. Split electric presses provide advanced pressure control and are compact, making them suitable for versatile applications. Additionally, there are specialized presses like isostatic presses and those designed for glove box use or specific analytical techniques like XRF and FTIR.

What Are The Drawbacks Of Manual KBr Pellet Presses?

Manual presses are portable, simple to use without complex machinery, and cost-effective. However, they can be labor-intensive for large batches and may have difficulty maintaining consistent pressure across samples.

Can Press Molds Be Customized For Specific Laboratory Needs?

Yes, many press molds can be customized in terms of size, shape, and material to meet specific laboratory requirements. Customizable options include special shapes, sizes ranging from Φ3-80mm, and materials tailored for specific applications such as XRF analysis, battery research, or material testing.

How Do Press Molds Ensure High-precision Sample Preparation?

Press molds ensure high-precision sample preparation through their precision-engineered designs, which provide uniform pressure and consistent compaction. Features such as bidirectional pressure, durable materials, and advanced hydraulic systems contribute to the accuracy and reliability of the samples produced.

What Are The Benefits Of Using Heated Press Molds?

Heated press molds offer benefits such as rapid heating (up to 500°C), precise temperature control, and the ability to process materials that require heat for compaction or bonding. These molds are ideal for applications in battery research, ceramics, and other materials that need controlled heating during preparation.

How Do Press Molds Contribute To Efficient Laboratory Workflows?

Press molds enhance laboratory efficiency by enabling quick and easy sample preparation with minimal setup time. Their ability to switch between different sample types and materials rapidly, along with features like programmable settings and digital displays, streamlines the workflow and reduces downtime.

What Should I Consider When Choosing A Press Mold For My Laboratory?

When selecting a press mold, consider factors such as the type of samples you will be preparing, the required pressure and temperature ranges, the size and shape of the molds, and the material compatibility. Additionally, evaluate whether manual or automated models better suit your workflow and if any customization options are needed for your specific applications.
