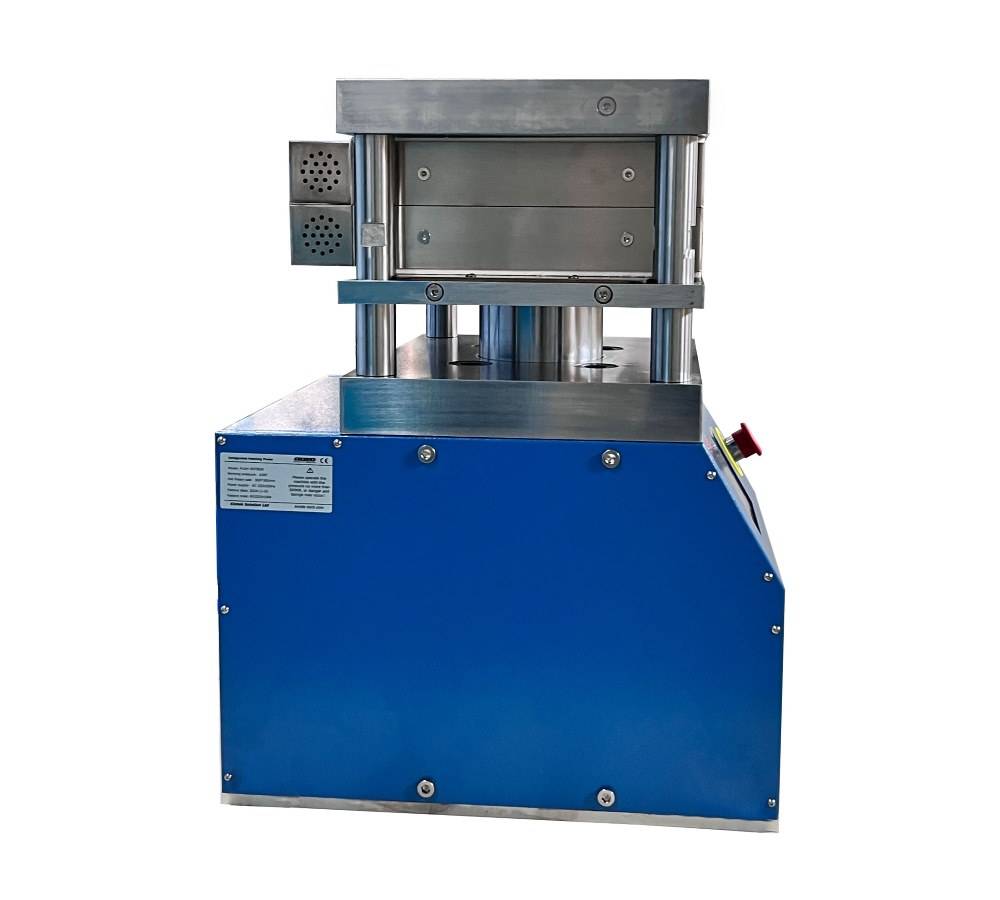

Automatic Heated Hydraulic Press Machine with Hot Plates for Laboratory

KINTEK Automatic Lab Heat Press: Precision, Efficiency, and Reliability for Your Laboratory

Elevate your material research and sample preparation with KINTEK's state-of-the-art Automatic Lab Heat Press. Designed for laboratories demanding precision and efficiency, our presses deliver consistent, reproducible results for a wide range of applications. As specialists in lab press machines, KINTEK offers solutions including automatic lab presses, lab isostatic presses, and heated lab presses tailored to your specific needs.

Why Choose KINTEK's Automatic Lab Heat Press?

Our Automatic Lab Heat Press is engineered to enhance your laboratory's capabilities. After samples are heated and pressurized, their chemical stability is significantly improved, making them less prone to breaking and easier to cut and preserve.

• Precision Automation & Control: Achieve reproducible results with fully automatic, programmable pressurization, pressure holding, and timed pressure relief. Reach temperatures up to 500°C (model dependent) with precise control, crucial for demanding sample preparation.
• Efficient Heating & Cooling: Benefit from fast single or double-sided heating plates. Our integrated water circulating system allows for rapid cooling, protecting the press and expediting your workflow.
• Compact & Versatile Design: Its small footprint and light weight make it easy to carry, move, and even operate within a vacuum glove box, maximizing your lab space and allowing for processing under vacuum environments.
• User-Friendly Operation: Features a clear LCD screen for intuitive control and simplified loading/ejection processes, shortening operating time and improving overall work efficiency.

Ready to enhance your lab's efficiency and precision? Discuss your requirements with our experts today!

Detailed Views & Key Components

Explore the thoughtful design and robust construction of our Automatic Lab Heat Press:

Our cooling system is designed for efficiency and safety:

• For heating plate temperatures below 300℃, air-cooling can be supplemented by water cooling for rapid return to room temperature.
• Above 300℃, water is circulated to the heat insulation plate to protect the entire machine from excessive temperature rise.

Key Advantages of KINTEK Lab Presses

1. Superior Design & Aesthetics: Electroplated countersunk head hexagonal screws on the upper plate for a clean, space-saving design. All-aluminum alloy handwheel is beautiful, practical, and durable.
2. Durable & Leak-Proof Construction: Chrome-plated cylinder ensures a smooth, rust-free surface and excellent sealing with high-quality rubber rings to prevent oil leakage. The one-piece mainboard structure (oil pool, mainboard, oil cylinder integrated) eliminates seal connections, enhancing reliability.
3. Robust Performance: Extended pulling spring provides excellent rebound and longevity, allowing 30mm cylinder return without deformation. Mold crafted from Japanese high-speed steel offers superior material quality, high hardness, deformation resistance, and long service life.
4. Precise Pressure Control: Digital display pressure gauge offers more accurate pressure control, with display accuracy to 0.01MPa.
5. Ease of Maintenance: External oil pool for easy oil replacement, with an integrated hydraulic oil filtration device.
6. Optimized Pressurizing Device: Strategically placed at the lowermost corner of the mainframe for reasonable angle and force application, preventing tilting.

Applications

KINTEK's Automatic Lab Heat Press is an indispensable, high-efficiency tool for sample preparation, widely utilized in:

• Material Researching Labs
• Pharmaceutical Development
• Catalytic Reaction Studies
• Ceramics Industry
• Electronic Industries

Its versatility allows for standard hot pressing and processing under vacuum environments when used within a glove box.

Technical Specifications

Need a specific configuration or have questions about our specifications? Contact our technical team now!

Operating Steps & Maintenance

​How to replace accessories and precautions

A quick overview of the operating procedure:

Step 1: Place the sample into the heating mold.

Step 2: Press the "Pre pressing" button to clamp the sample.

Step 3: Press "Settings" to enter the programming menu.

Step 4: Use "+/-" buttons to set desired heating plate temperature.

Step 5: Use "+/-" buttons to set the pressure to be applied.

Step 6: Return to the operation menu; press heating buttons to start heating.

Step 7: Once set temperature is reached, press pressurization button to start the cycle.

Step 8: After cycle completion, carefully remove the sample from the mold.
