Automatic High Temperature Heated Hydraulic Press Machine with Heated Plates for Lab

KINTEK High Temperature Hot Press: Precision Sintering & Material Processing

KINTEK's High Temperature Hot Press is expertly engineered for laboratories demanding precise material pressing, sintering, and processing in extreme temperature environments. Operating reliably from hundreds to thousands of degrees Celsius, this machine is your key to unlocking advanced material research and development.

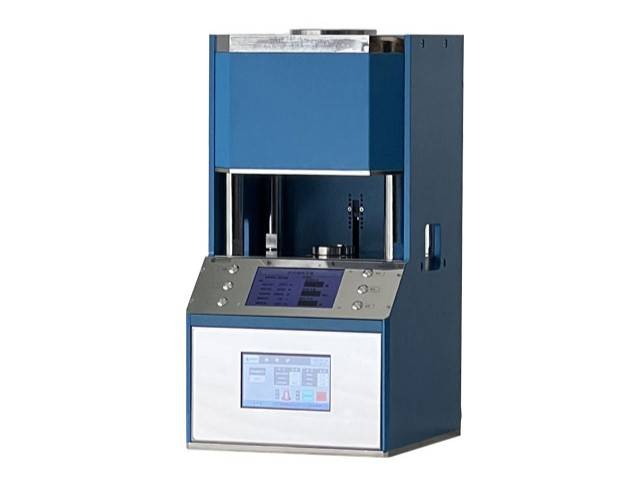

Visual Showcase: Explore the High Temperature Hot Press

Ready to advance your material processing capabilities? Contact our specialists today to discuss your application and get a quote!

Key Features & Your Advantages

Our High Temperature Hot Press is designed to deliver exceptional performance and versatility for your laboratory needs:

• Extreme Temperature Capability: Achieve stable operation at temperatures ranging from hundreds up to thousands of degrees Celsius, essential for advanced material synthesis and testing.
• Precision Control for Repeatable Results: Equipped with sophisticated temperature and pressure control systems, ensuring accurate and consistent processing critical for research and quality control. Program up to 20 distinct temperature rise control segments to meet complex experimental requirements.
• Versatile Material Processing: Effectively handles a diverse range of materials, including metals, ceramics, composites, and more, making it a valuable asset for various research fields.
• Robust and High-Performance Design: Engineered for durability and high productivity, enabling you to produce high-quality samples and components efficiently.
• Customized Processing Solutions: We understand unique research needs. Our machine allows for tailored processes, supporting your specific experimental designs and production goals.
• Drive Material Innovation: An indispensable tool for the development and research of new materials, pushing the boundaries of material science and engineering.
• Enhance Material Properties: Improve the mechanical strength, heat resistance, and corrosion resistance of your materials through precise high-temperature hot pressing.

Applications Across Industries

KINTEK's High Temperature Hot Presses are pivotal in laboratories focused on:

• High-Temperature Alloy Manufacturing: Essential for creating components for aerospace engines, spacecraft, and other demanding applications.
• Powder Metallurgy: Ideal for manufacturing precision parts and complex metal products from powders.
• Advanced Ceramic Materials: Perfect for sintering and processing high-performance ceramics for various industrial and scientific uses.
• Electronic Materials Development: Facilitates the manufacturing of semiconductor materials, magnetic materials, and other critical electronic components.

Have a unique application? Let's explore how our High Temperature Hot Press can meet your challenge.

Technical Specifications

Instrument model	PHA
Pressure range	0-10T
Pressure process	Program pressurization-Program pressure maintenance-timed pressure release
Pressure holding time	1 second~∞ seconds
Cylinder stroke	80mm
Heating temperature	Maximum 1000℃
Mold material	Nickel-based alloy (high temperature resistant material)
Sample size	Diameter 10-30mm
Mold shape	Diameter 50*90mm (referring to outer dimensions or specific mold type)
Furnace diameter	Diameter 60mm
Complete machine size	400*380*780 (L*W*H) mm
Power supply	220V 50Hz

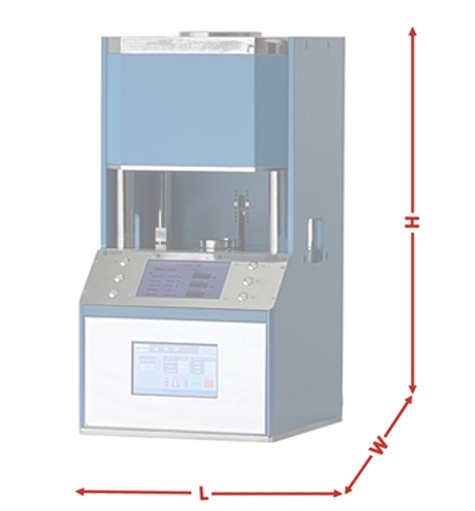

Powder tablet press size diagram

Streamlined Operation: A Step-by-Step Visual Guide

Experience efficient and user-friendly operation with our High Temperature Hot Press:

1. Place the sample in the mold.

2. Place the mold in the hot press.

3. Set the required pressure and holding time.

4. Pre-press the sample.

5. Enter the data screen, set heating temperature and time (up to 20 heating programs available).

6. Return to the main interface, click "Heating Start." The equipment heats according to the set program.

7. When the temperature reaches the set point, start pressurizing as per your program.

8. After the cycle completes and cools, take out the sample. The equipment stops automatically and will terminate if set parameters are not met (e.g., temperature not reached within specified time).

Understanding the Principle: How High Temperature Hot Pressing Works

High-Temperature Hot Presses leverage the combined physical and chemical effects of high-temperature and high-pressure environments. By applying intense pressure and heat, the material's molecules are prompted to rearrange or crystallize. High temperatures enable atoms to overcome energy barriers more easily, facilitating chemical reactions, grain growth, and material densification. This process significantly improves mechanical properties, heat resistance, and allows for the fabrication of complex structural materials.

Partner with KINTEK for Your Advanced Laboratory Needs

At KINTEK, we specialize in providing high-quality lab press machines, including automatic lab presses, lab isostatic presses, and heated lab presses, tailored to your laboratory's unique requirements. Our High Temperature Hot Press is a testament to our commitment to innovation and precision in material science.

Take the next step in your research. Contact us via the form below to learn more about the High Temperature Hot Press, request a detailed quotation, or discuss customization options with our expert team. We're here to support your laboratory's success.

Full range of types of laboratory press molds

We have a full range of molds for you to choose from, and the molds fit the body perfectly.

If you need molds with special shapes, we can also customize them for you.
