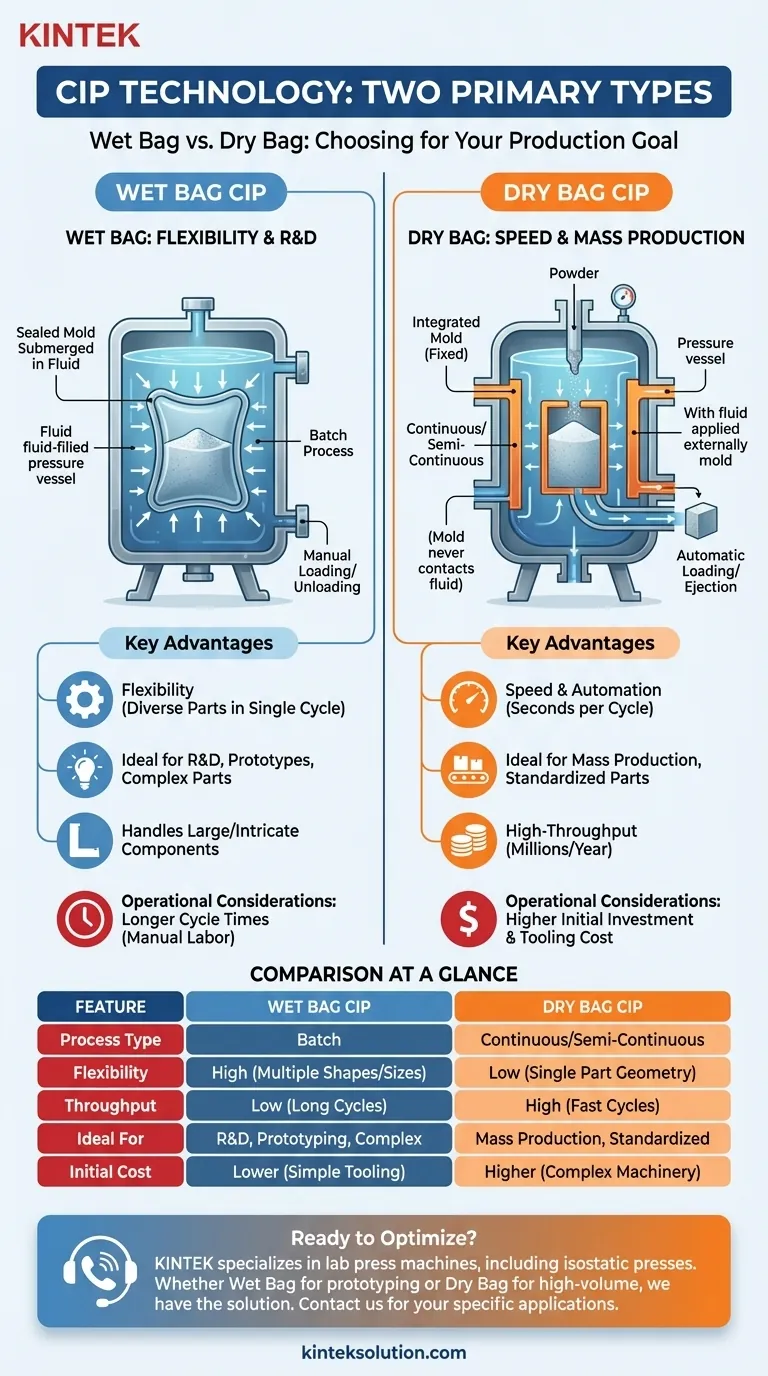

The two primary types of Cold Isostatic Pressing (CIP) are wet bag and dry bag technology. The fundamental difference between them is how the flexible mold containing the powder interacts with the pressure-transmitting fluid. In wet bag CIP, the sealed mold is fully submerged in the fluid within a pressure vessel, while in dry bag CIP, the mold is an integrated component of the pressure vessel itself.
While both methods achieve powder consolidation through uniform pressure, the choice is a strategic decision. Wet bag offers unparalleled flexibility for prototypes and complex, low-volume parts, whereas dry bag is purpose-built for the high-speed, high-throughput demands of mass production.
The Mechanics of Wet Bag CIP
Wet bag is the classic and most versatile form of isostatic pressing. It operates as a batch process, making it highly adaptable for a wide range of applications.
How It Works
The process involves filling a flexible, elastomeric mold with powder and then hermetically sealing it. This sealed mold is then submerged in a fluid-filled pressure vessel. The vessel is closed, and high isostatic pressure is applied to the fluid, which in turn transmits the pressure uniformly to the mold, compacting the powder inside.
Key Advantages
The primary advantage of wet bag CIP is flexibility. Because the molds are independent of the machine, multiple parts of different sizes and shapes can be processed within a single cycle. This makes it ideal for research and development, prototyping, and the production of large or highly complex components.
Operational Considerations
This flexibility comes at the cost of speed. The process is manual and labor-intensive, requiring operators to load and unload the molds for each cycle. Consequently, cycle times are significantly longer compared to the dry bag method.
The Mechanics of Dry Bag CIP
Dry bag technology was developed to overcome the speed limitations of wet bag pressing, specifically for high-volume manufacturing environments.
How It Works
In a dry bag system, the flexible mold is a fixed, integrated part of the pressure vessel. Powder is introduced directly into this built-in mold, the vessel is pressurized, and the compacted part is then ejected. The "bag" or mold remains in the press and never comes into direct contact with the pressurizing fluid, hence the name "dry bag."
Key Advantages
The key benefits are speed and automation. With cycle times often measured in seconds rather than many minutes, dry bag CIP is perfectly suited for mass production. It enables a continuous or semi-continuous workflow, drastically reducing per-unit processing time and labor costs.
Operational Considerations
This efficiency requires a higher initial investment in both the machinery and the dedicated tooling. The process is also far less flexible, as the press is designed to produce a single, standardized part geometry.
Understanding the Trade-offs: Flexibility vs. Scalability
Choosing between wet and dry bag CIP is not about which is "better," but which is right for your specific production goal. The decision hinges on the balance between versatility and throughput.
Cycle Time and Throughput
This is the most significant differentiator. Dry bag processing is orders of magnitude faster, enabling high-volume production of millions of parts per year. Wet bag is a deliberate, batch-oriented process suitable for low-volume needs.
Tooling and Initial Investment
Wet bag tooling is simple and inexpensive, often consisting of just a basic elastomeric mold. In contrast, dry bag systems are complex automated machines that represent a significant capital investment.
Part Complexity and Size
Wet bag excels at producing large, intricate components and can handle a diverse mix of parts simultaneously. Dry bag is optimized for producing large quantities of a single, often simpler, part design, like ceramic tubes or spark plug insulators.
Making the Right Choice for Your Application
Your production requirements will dictate the correct technology. By evaluating your goals for volume, part complexity, and budget, you can make a clear and effective decision.
- If your primary focus is R&D or producing complex, low-volume parts: Wet bag technology offers the necessary design flexibility and a much lower barrier to entry regarding tooling costs.
- If your primary focus is high-volume, standardized production: Dry bag technology is the superior choice for its speed, automation, and lower per-unit cost at scale.
- If your primary focus is integrating with modern automated workflows: Dry bag systems are increasingly designed with advanced sensors and digital twin capabilities, aligning them directly with Industry 4.0 principles.
By understanding this fundamental distinction, you can align your manufacturing strategy with the correct CIP method to achieve your specific production goals.
Summary Table:
| Feature | Wet Bag CIP | Dry Bag CIP |
|---|---|---|
| Process Type | Batch | Continuous/Semi-continuous |
| Flexibility | High (multiple shapes/sizes) | Low (single part geometry) |
| Throughput | Low (long cycle times) | High (fast cycle times) |
| Ideal For | R&D, prototyping, complex parts | Mass production, standardized parts |
| Initial Cost | Lower (simple tooling) | Higher (complex machinery) |
