In the world of powder metallurgy, Dry Bag Cold Isostatic Pressing (CIP) is distinguished by three core advantages: superior cleanliness, exceptionally rapid cycle times, and a high degree of suitability for automation. Its unique design, where a flexible membrane is permanently integrated into the pressure vessel, isolates the mold from the pressurizing fluid, enabling a streamlined process ideal for high-volume manufacturing.
The primary distinction of Dry Bag CIP is its optimization for speed and repeatability. While all CIP methods produce parts with high, uniform density, Dry Bag technology sacrifices the geometric flexibility of its "Wet Bag" counterpart to achieve the rapid, clean, and automated cycles necessary for cost-effective mass production.
The Mechanics of Dry Bag CIP
To appreciate its advantages, it's essential to understand how Dry Bag CIP fundamentally works and how it differs from other methods. The innovation lies in the vessel's construction.
The Integrated Membrane Design
At the heart of a Dry Bag system is a flexible, durable membrane that is a built-in component of the pressure vessel. This membrane effectively creates a permanent, sealed barrier.
The pressurizing fluid (typically oil or water) fills the space between the steel vessel wall and the outside of this membrane, but never touches the mold or the powder.
The "Dry" Process
A mold, often called the "dry bag," is filled with powder and sealed. It is then inserted into the cavity within the integrated membrane.
When the system is activated, the fluid pressurizes the membrane, which in turn collapses uniformly around the mold. This transmits isostatic pressure—equal pressure from all directions—to compact the powder. The mold itself remains completely dry.
Isostatic Pressure Application
Like all CIP processes, applying pressure from all sides produces components with exceptionally uniform density and minimal internal stress. This leads to predictable shrinkage during subsequent sintering and creates strong, reliable final parts, including those with irregular shapes or long, thin profiles.
Key Advantages for High-Volume Production
The design of Dry Bag CIP directly translates into benefits that are critical for any mass-production environment. The entire process is engineered for efficiency and repeatability.
Unmatched Cycle Speed
This is the most significant advantage. Because the pressurizing fluid is permanently contained and the mold is simply inserted and removed, cycle times are extremely rapid. There is no need to decontaminate parts or clean the vessel between cycles, which is a major bottleneck in other systems.
Superior Cleanliness and Reduced Contamination
By isolating the mold from the fluid, Dry Bag CIP eliminates a primary source of contamination. This results in a cleaner working environment, less post-processing cleanup of the parts, and significantly reduced risk of cross-contamination between different powder batches.
Designed for Automation

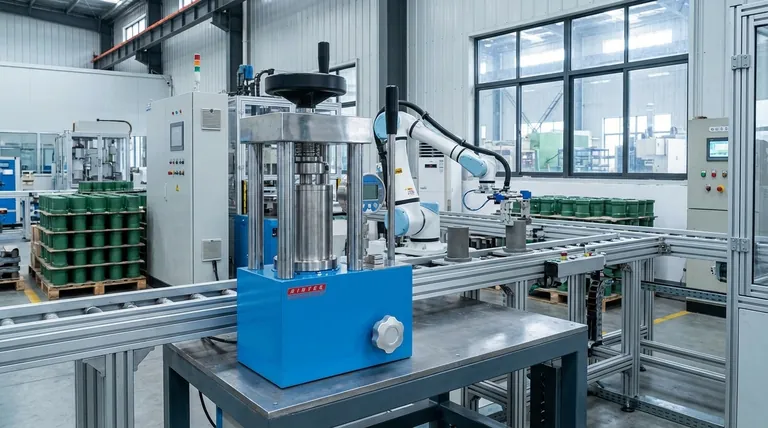

The combination of rapid cycles and a simple, repeatable loading/unloading process makes Dry Bag technology perfectly suited for fully automated production lines. Robots or other handling systems can manage the entire workflow, from filling molds to ejecting the pressed "green" parts, with minimal human intervention.
Understanding the Trade-offs: Dry Bag vs. Wet Bag
No technology is superior in all situations. The advantages of Dry Bag CIP come with specific trade-offs, particularly when compared to the more flexible Wet Bag CIP method.
The Limitation of Part Geometry
Dry Bag presses are built to accommodate a specific range of mold sizes. The integrated membrane design, while efficient, inherently limits the maximum size and shape of the parts you can produce. Wet Bag CIP, where a standalone rubber mold is submerged in a fluid-filled vessel, offers far greater flexibility for producing very large or intricately shaped components.
Lower Flexibility in Production Runs
Dry Bag systems are optimized for producing thousands of identical parts in sequence. In contrast, Wet Bag systems excel at low-volume, high-mix production. In a single Wet Bag cycle, you can process multiple bags of different shapes and sizes simultaneously, which is impossible in a Dry Bag press.
The Focus on Repetition over Versatility
Ultimately, the choice comes down to specialization. Dry Bag is a specialized tool for high-speed repetition. Wet Bag is a versatile tool for prototyping, small-batch production, and handling one-off or oversized components.
Making the Right Choice for Your Goal
Your choice between Dry Bag and other CIP methods hinges entirely on your specific production objectives.
- If your primary focus is mass production and speed: Dry Bag CIP is the clear choice due to its rapid, automated cycles and operational cleanliness.
- If your primary focus is prototyping or producing diverse parts: Wet Bag CIP offers superior flexibility for handling various shapes, sizes, and small-batch runs.
- If your primary focus is creating very large or complex components: Wet Bag CIP's ability to accommodate custom, oversized molds makes it the more suitable technology.
By understanding this fundamental trade-off between specialized speed and operational flexibility, you can confidently select the pressing technology that aligns with your manufacturing needs.
Summary Table:
| Advantage | Description |
|---|---|
| Cleanliness | Isolates mold from fluid, reducing contamination and post-processing cleanup. |
| Rapid Cycle Times | Fast processing with no need for vessel cleaning between cycles. |
| Automation Suitability | Ideal for automated production lines, enabling high-volume, repeatable output. |
| Uniform Density | Applies isostatic pressure for consistent part quality and minimal stress. |
