In short, flexible molds are essential for isostatic compaction because they serve as the barrier that transmits uniform, all-around pressure from a fluid onto a powder. This unique capability allows the process to form parts with highly complex geometries and, more importantly, ensures the powder is compacted with exceptionally consistent density.
The core function of a flexible mold is not just to define a shape, but to act as the medium through which "isostatic" (equal from all directions) pressure is applied. This uniform pressure is the key to producing high-integrity components that are free from the internal stresses found in parts made by traditional methods.
The Principle of Isostatic Compaction
To understand the role of the mold, you must first understand the process it enables. Isostatic compaction is fundamentally different from conventional powder pressing.
The Meaning of "Isostatic"
The term isostatic means "uniform pressure." In this manufacturing process, a powder-filled flexible mold is submerged in a fluid within a high-pressure chamber.
Pressure is then applied to the fluid, which in turn exerts that pressure equally on all surfaces of the flexible mold. This is analogous to the way water pressure acts on a submarine deep in the ocean—it's equal from every direction.
Contrast with Uniaxial Pressing
This stands in stark contrast to traditional uniaxial pressing, which uses rigid steel dies. In that method, pressure is applied from only one or two directions (top and bottom).
This directional pressure creates density gradients and internal stresses within the part, which can lead to warping, cracking, or failure during the subsequent sintering (heating) phase.
The Critical Function of the Flexible Mold
The flexible mold is not an optional accessory; it is the core technology that makes the entire isostatic process possible. Its role is twofold: shaping and pressure transmission.
1. Transmitting Uniform Pressure
The mold's primary job is to be a pressure-transmitting barrier. It keeps the powder contained and separate from the surrounding fluid (typically water or oil).
Because the mold is made from a flexible, elastomeric material like rubber or polyurethane, it does not resist the hydraulic pressure. Instead, it faithfully transmits it directly and uniformly to the powder inside, compacting it evenly from all sides.
2. Enabling Complex Geometries
The flexibility of the mold allows for the creation of intricate shapes with undercuts, complex curves, and varying wall thicknesses.
These are features that are often impossible or prohibitively expensive to produce with rigid steel dies, which require straight-line ejection from the mold cavity.
3. Ensuring Uniform Density
The direct result of uniform pressure is uniform density. By compacting the powder equally from all directions, the process eliminates the internal density variations common in uniaxially pressed parts.
This homogeneity results in more predictable shrinkage during sintering and produces a final component with superior mechanical strength and reliability.
Understanding the Trade-offs
While powerful, using flexible molds in isostatic compaction is not without its considerations. An objective analysis requires acknowledging the limitations.
Mold Lifespan and Wear
Flexible molds have a finite lifespan. They can be punctured by sharp powder particles or degrade over time from repeated flexing under extreme pressure. This makes them a consumable tool, unlike hardened steel dies.
Tooling Cost and Lead Time
Designing and fabricating a high-quality flexible mold requires expertise and can represent a significant upfront investment in time and cost, especially for a new part design.
Dimensional Tolerance
While the resulting part is very consistent, the "green" (pre-sintered) compact may have slightly looser dimensional tolerances than a part produced in a precision-machined rigid die. The inherent flexibility that is the mold's strength can also be a source of minor dimensional variability.
Making the Right Choice for Your Goal
Your choice of compaction method depends entirely on the requirements of the final component.
- If your primary focus is complex geometries or superior material integrity: Isostatic compaction with a flexible mold is the definitive method for achieving uniform density and minimizing internal stress.
- If your primary focus is high-volume production of simple shapes: Traditional uniaxial pressing with rigid dies is often faster and more cost-effective.
- If your primary focus is producing near-net-shape parts to minimize post-machining: Isostatic compaction excels, as its uniform shrinkage is highly predictable.
Ultimately, mastering the isostatic process begins with understanding that the flexible mold is the key that unlocks its unique advantages.
Summary Table:
| Aspect | Role in Isostatic Compaction |
|---|---|
| Pressure Transmission | Transmits uniform hydraulic pressure to powder for even compaction |
| Geometry Capability | Enables creation of complex shapes with undercuts and curves |
| Density Uniformity | Ensures consistent density, reducing internal stresses and defects |
| Trade-offs | Includes mold wear, higher initial cost, and dimensional variability |
Ready to enhance your lab's capabilities with reliable isostatic compaction? KINTEK specializes in lab press machines, including automatic lab presses, isostatic presses, and heated lab presses, designed to deliver uniform density and handle complex geometries for superior material integrity. Contact us today to discuss how our solutions can meet your specific laboratory needs and boost your efficiency!

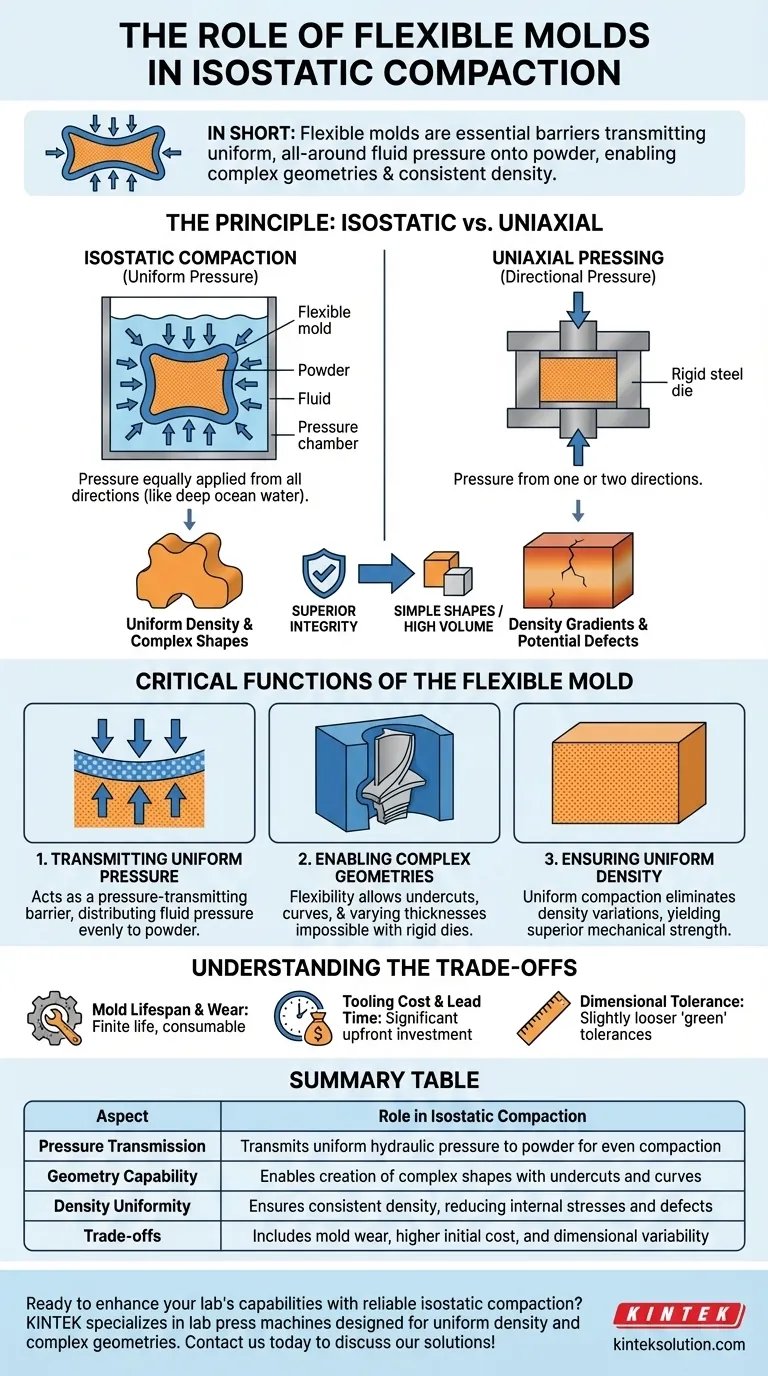

Visual Guide
