At its core, Cold Isostatic Pressing (CIP) is energy-efficient and environmentally friendly primarily because it substitutes intense heat with uniform pressure. By operating at or near room temperature, it bypasses the high energy consumption and emissions associated with the high-temperature sintering required by many conventional powder metallurgy processes.
The key advantage of CIP is its shift from thermal energy to mechanical pressure. This fundamental difference not only slashes direct energy use but also creates a cleaner, more efficient manufacturing cycle with less material waste and fewer harmful byproducts.
The Core Principle: Pressure Over Heat
The efficiency of CIP stems from its fundamental mechanism. Instead of using heat to fuse powder particles together, it uses a liquid medium to apply extreme, uniform pressure from all directions.
Eliminating High-Temperature Sintering
Most traditional powder compaction methods require a subsequent high-temperature sintering phase, where parts are heated in a furnace to bond the particles. This step is incredibly energy-intensive.
CIP consolidates powder into a dense, solid part—often called a "green body"—that possesses significant strength without this heating step, eliminating a major source of energy consumption.
Reducing Emissions and Waste
Because high-temperature sintering is avoided, the process produces significantly less waste gas. Likewise, the wastewater associated with cooling and cleaning high-temperature equipment is also eliminated from this stage of production.
How CIP Drives Process Efficiency
Beyond direct energy savings, the CIP method enhances overall production efficiency through precision, automation, and material conservation.
High Material Yield and Reduced Waste
The uniform pressure ensures highly consistent density and dimensional accuracy throughout the part. This creates near-net-shape components that require minimal post-processing or machining.
By using raw materials more effectively and reducing scrap, CIP directly lowers material consumption and associated production costs.
Automation and Cycle Time Reduction
Modern Electrical CIP systems automate the entire pressurization cycle, reducing manual labor and the risk of operator error.
This automation allows for precise control of pressure and rapid cycling, saving between 40% to 60% of the forming time compared to older, manual CIP processes and boosting overall throughput.
Contained and Cleaner Medium
The process uses a working fluid, typically water with a corrosion inhibitor, within a closed-loop system. This containment minimizes the risk of medium pollution and allows the fluid to be reused, contributing to a cleaner operational environment.
Understanding the Trade-offs and Dependencies
While highly efficient, the success of CIP is not automatic. Its effectiveness is contingent on several critical factors that must be properly managed.
The Importance of Powder Quality
The efficiency gains of CIP are directly tied to the quality of the raw powder. The material must have the correct particle size, flowability, and density to ensure it compresses uniformly.
Using improper powder can lead to defects, inconsistent density, and failed parts, negating any potential efficiency benefits.
The Critical Role of Tooling Design
The flexible mold or "tooling" is central to the process. Its design must be engineered to accommodate the specific powder material and the desired final shape.
Poor tooling can lead to slow cycle times, part defects, or premature failure, making expert design a prerequisite for achieving high efficiency.
Making the Right Choice for Your Application
To leverage CIP effectively, align your goals with the specific strengths of the process.
- If your primary focus is minimizing energy consumption: CIP is an exceptional choice for creating dense parts without the massive energy budget required for high-temperature furnace operations.
- If your primary focus is production speed and throughput: Automated Electrical CIP offers significant cycle time reductions, making it highly suitable for stable, mass-production environments.
- If your primary focus is sustainable manufacturing: The process excels at producing near-net-shape parts with high material utilization, reducing both scrap and the need for energy-intensive secondary machining.
Ultimately, understanding CIP as a pressure-based system empowers you to make an informed decision for efficient, clean, and precise component manufacturing.
Summary Table:
| Aspect | Benefits |
|---|---|
| Energy Efficiency | Eliminates high-temperature sintering, reducing energy consumption by up to 60% in cycle times |
| Environmental Friendliness | Lowers emissions and waste, uses reusable fluid in closed-loop systems |
| Process Efficiency | Achieves near-net-shape parts with high material yield and automation |
| Key Factors | Dependent on powder quality and tooling design for optimal performance |
Ready to enhance your laboratory's efficiency with Cold Isostatic Pressing? KINTEK specializes in lab press machines, including automatic lab presses, isostatic presses, and heated lab presses, designed to deliver precise, energy-efficient solutions that reduce waste and operational costs. Contact us today via our contact form to discuss how our equipment can meet your specific needs and drive sustainable innovation in your lab!

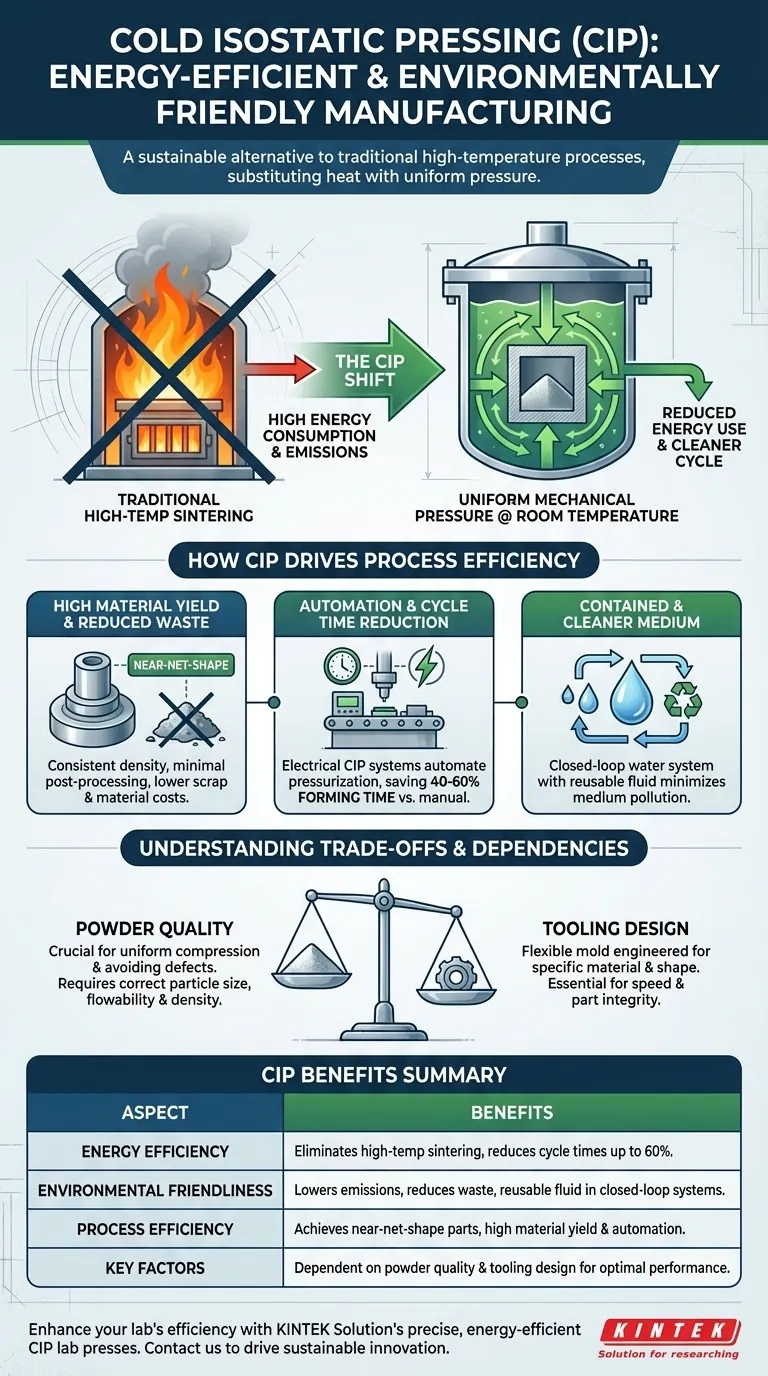

Visual Guide
