What Are Some Research Applications Of Electric Lab Cips? Unlock Uniform Powder Densification For Advanced Materials

In research and development, electric lab-scale Cold Isostatic Presses (CIPs) are primarily used for three key applications: the densification of advanced ceramic powders, the consolidation of metal and superalloy powders, and specialized carbon impregnation processes. These applications leverage the unique ability of a CIP to create highly uniform, pre-sintered components from a powder starting material.

The core value of a Cold Isostatic Press in a research setting is its use of uniform, liquid-based pressure. This creates a compacted powder part, known as a "green body," with exceptionally consistent density and minimal internal stress, which is a critical prerequisite for manufacturing high-performance materials.

What are some research applications of electric lab CIPs? Unlock Uniform Powder Densification for Advanced Materials

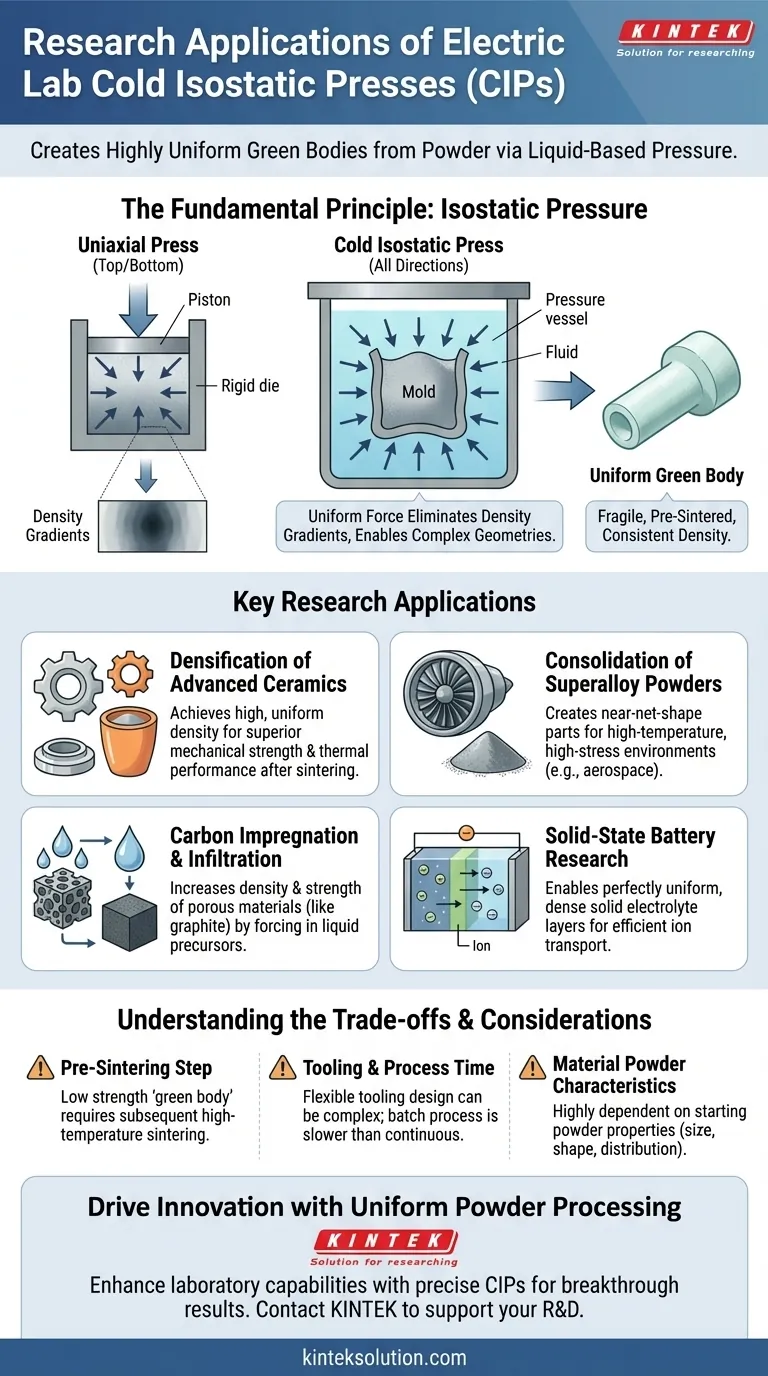

The Fundamental Principle: Why Isostatic Pressure is Crucial

The term "isostatic" means that pressure is applied equally from all directions. This is the fundamental concept that makes a CIP such a powerful research tool, differentiating it from more common uniaxial (single-direction) presses.

From Powder to "Green Body"

The basic process involves placing a powder-filled, flexible mold into a high-pressure vessel filled with a fluid (usually water or oil). The electric press then pressurizes this fluid, which in turn compacts the powder inside the mold. The resulting object is a fragile, chalk-like component called a green body.

Eliminating Density Gradients

Unlike a uniaxial press that pushes from the top and bottom, isostatic pressure ensures every part of the powder mass experiences the same force. This eliminates the density gradients and internal shear stresses that often cause cracks, warping, and weak points in parts made by other methods.

Enabling Complex Geometries

Because the pressure conforms perfectly to the mold shape, CIP is exceptionally well-suited for creating complex or high-aspect-ratio geometries. It avoids the friction-related problems with die walls that limit the complexity of uniaxially pressed parts.

Key Research Applications in Detail

The ability to create uniform green bodies is the foundation for several critical research applications.

Densification of Advanced Ceramics

High density is directly linked to the mechanical strength, hardness, and thermal performance of technical ceramics. Researchers use lab CIPs to create highly uniform ceramic green bodies that can then be sintered at high temperatures to achieve near-theoretical density, unlocking their full performance potential.

Consolidation of Superalloy Powders

In aerospace and energy research, CIP is used to consolidate superalloy powders (like nickel or titanium-based alloys) into a solid form called a near-net-shape. This consolidated part is dense enough to be handled and subsequently processed through sintering or hot isostatic pressing (HIP) to create components for high-temperature, high-stress environments.

Carbon Impregnation and Infiltration

This process is used to increase the density of existing porous materials, such as graphite electrodes or carbon-carbon composites. A porous component is submerged in a liquid carbon precursor (like a phenolic resin or pitch), and the CIP pressurizes the system. This high pressure forces the liquid deep into the component's open pores before it is cured and pyrolyzed, significantly increasing the final material's density and strength.

Emerging Field: Solid-State Batteries

CIP is a key enabling technology in solid-state battery research. Achieving a perfectly uniform and dense solid electrolyte layer is critical for efficient ion transport and preventing the growth of lithium dendrites. Researchers use CIP to press electrolyte powders into thin, dense, and homogenous layers that are impossible to achieve with other consolidation methods.

Understanding the Trade-offs

While powerful, a CIP is a specific tool with its own set of considerations. Understanding its limitations is key to successful application.

It's a "Pre-Sintering" Step

A CIP green body has very low mechanical strength and is not a final product. It is an intermediate step that almost always requires a subsequent high-temperature sintering process to fuse the powder particles together and achieve the material's final strength and properties.

Tooling and Process Time

The process relies on flexible, elastomeric tooling (the "bag" or mold) that holds the powder. While this allows for complex shapes, designing and fabricating robust, repeatable tooling can be a research project in itself. Furthermore, CIP is a batch process, making it slower than continuous methods, though this is rarely a concern for R&D-scale work.

Material Powder Characteristics

The effectiveness of CIP is highly dependent on the characteristics of the starting powder, including particle size, shape, and distribution. Significant research often goes into optimizing the powder to achieve the desired green density and final sintered properties.

Making the Right Choice for Your Research

Your specific goal will determine how you leverage a Cold Isostatic Press.

If your primary focus is maximizing material density: Your main effort will be on optimizing powder characteristics and pressurization cycles before moving to the critical sintering stage.
If your primary focus is creating complex shapes from powder: Your research will concentrate on designing and fabricating robust elastomeric molds that survive the pressure cycles and produce repeatable green bodies.
If your primary focus is improving a pre-existing porous part: You will focus on the impregnation process, exploring precursor viscosity and pressure levels to ensure full infiltration before final heat treatment.

Ultimately, a Cold Isostatic Press empowers researchers to create uniform material precursors that unlock properties otherwise unattainable with conventional pressing methods.

Summary Table:

Application	Key Benefit
Densification of Advanced Ceramics	Achieves high, uniform density for superior mechanical and thermal properties
Consolidation of Superalloy Powders	Creates near-net-shape parts for high-stress environments
Carbon Impregnation Processes	Increases density and strength of porous materials like graphite
Solid-State Battery Research	Enables dense, uniform electrolyte layers for efficient ion transport
