In essence, isostatic pressing excels where conventional methods fall short by applying pressure uniformly in all directions. This fundamental difference allows it to create parts with superior, uniform density and complex geometries that are impossible to achieve with traditional die pressing. It is particularly effective for difficult-to-compact powdered materials, producing components that are very close to their final dimensions, thereby minimizing waste and post-processing.
The core advantage of isostatic pressing is not just one feature, but a cascade of benefits that all stem from a single principle: applying pressure equally from all directions. This eliminates the compromises inherent in pressing from a single axis, unlocking new possibilities in material performance and component design.
How Isostatic Pressing Redefines Compaction
To understand its advantages, you must first grasp how isostatic pressing fundamentally differs from conventional techniques like uniaxial (single-axis) pressing.
The Principle of Uniform Pressure
Conventional pressing uses a rigid die and a punch to compact powder from one direction. Imagine stepping on a box of sugar; the sugar directly under your foot becomes dense, but the sugar at the edges remains loose. This creates density gradients and internal stresses.
Isostatic pressing, by contrast, submerges a flexible mold filled with powder into a fluid. This fluid is then pressurized, exerting equal force on every point of the mold's surface. It’s like squeezing a sealed, powder-filled balloon in your fist—the pressure is consistent everywhere.
Eliminating Internal Voids and Defects
Because pressure is applied uniformly, it efficiently collapses air pockets and voids between powder particles throughout the entire component. This process results in a "green" part (an unsintered part) with exceptionally high and consistent density before it ever goes into a furnace for sintering.
Key Advantages in Practice
This unique mechanism translates directly into tangible manufacturing and performance benefits that are often unattainable with other methods.
Unmatched Density and Uniformity
The lack of density gradients means the final sintered part has highly predictable and uniform material properties, such as strength and thermal conductivity. This uniformity is critical for high-performance applications in aerospace, medical, and defense, where hidden flaws can lead to catastrophic failure.
Freedom for Complex Geometries
Because the "punch" is a fluid, it can conform to any shape. This removes the geometric constraints of rigid dies. Designers can create parts with complex curves, undercuts, and internal cavities that would be impossible to press and eject from a traditional die.
Superior Performance for Difficult Materials
Materials like technical ceramics, refractory metals, and some composites do not compact well under uniaxial pressure. Isostatic pressing is highly effective at consolidating these challenging materials, forcing the particles together to achieve the high density required for them to function correctly.
Achieving Near-Net-Shape Components
By combining high dimensional accuracy with the ability to form complex shapes, isostatic pressing produces parts that are very close to their final (net) shape. This drastically reduces or even eliminates the need for expensive and time-consuming secondary machining, saving both material and labor costs.
Understanding the Trade-offs
No process is universally superior. Acknowledging the trade-offs is essential for making an informed decision.
Higher Initial Equipment Cost
Isostatic pressing systems, which must safely handle extremely high pressures, represent a significantly higher capital investment than conventional mechanical or hydraulic presses.
Slower Cycle Times
The process of loading the powder, sealing the pressure vessel, pressurization, depressurization, and unloading is inherently slower than the rapid stroke of a uniaxial press. This makes it less suitable for products requiring extremely high-volume, low-cost output.
Tooling Considerations
While flexible molds enable complexity, they can have a shorter lifespan than the hardened steel dies used in conventional pressing. The design and fabrication of this flexible tooling require specialized expertise.
Is Isostatic Pressing Right for Your Application?
Choosing the correct forming technique requires aligning the process capabilities with your primary goal.
- If your primary focus is ultimate performance and reliability: Isostatic pressing is the clear choice for creating mission-critical parts with the highest possible density and uniformity.
- If your primary focus is manufacturing a complex geometry: Isostatic pressing provides design freedom that no other compaction method can match, enabling innovative component shapes.
- If your primary focus is high-volume, low-cost production of simple shapes: Conventional pressing will almost always be more economical due to its faster cycle times and lower equipment cost.
Ultimately, selecting isostatic pressing is a strategic decision to prioritize part quality, material performance, and geometric complexity over raw production speed.
Summary Table:
| Advantage | Description |
|---|---|
| Uniform Density | Eliminates density gradients and internal stresses for consistent material properties. |
| Complex Geometries | Enables shapes with curves, undercuts, and cavities impossible with traditional dies. |
| Difficult Materials | Effective for compacting technical ceramics, refractory metals, and composites. |
| Near-Net-Shape | Produces parts close to final dimensions, minimizing machining and waste. |
| Trade-offs | Higher equipment cost, slower cycles, and specialized tooling considerations. |
Ready to enhance your lab's capabilities with isostatic pressing? KINTEK specializes in lab press machines, including automatic lab presses, isostatic presses, and heated lab presses, designed to meet the needs of laboratories working with advanced materials. Our solutions deliver superior density, complex geometries, and reduced waste for high-performance applications. Contact us today to discuss how our equipment can optimize your processes and drive innovation in your projects!

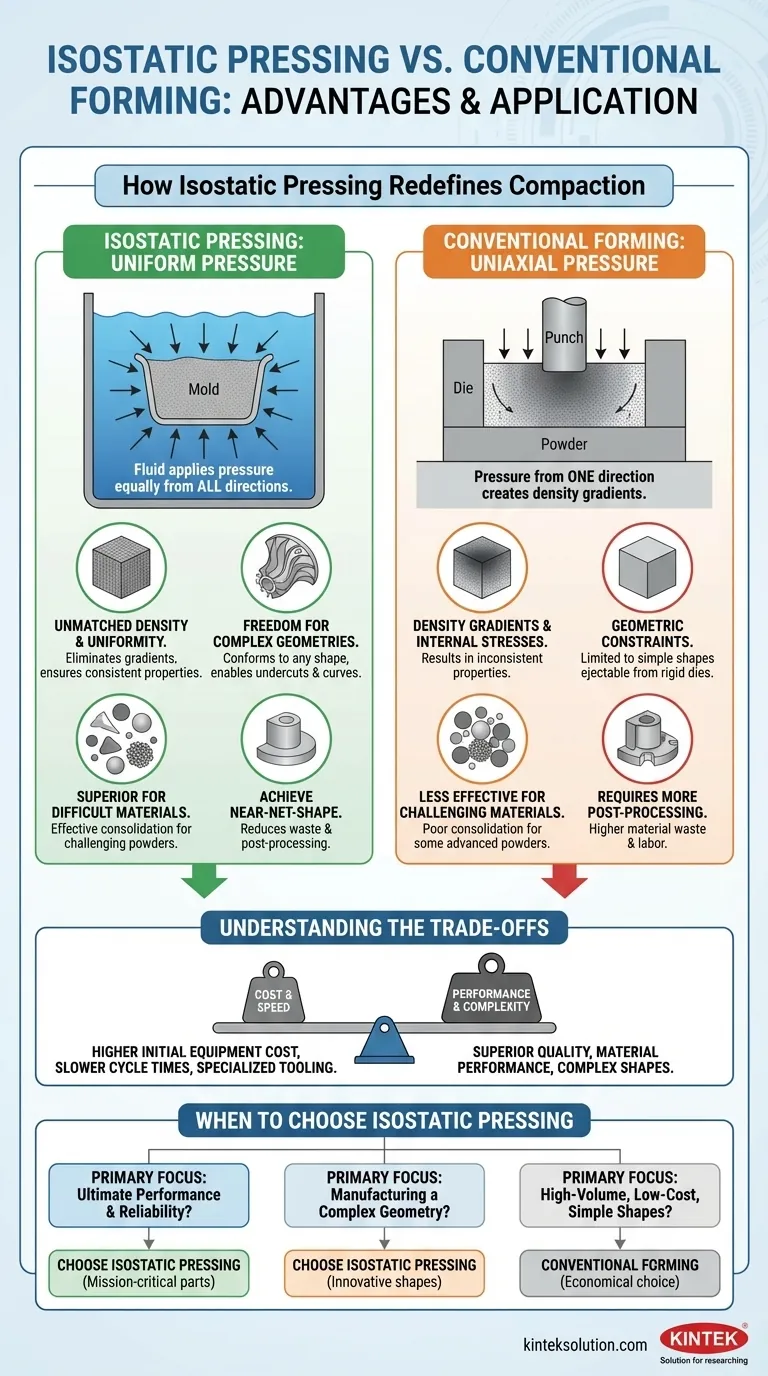

Visual Guide
