At its core, cold isostatic pressing (CIP) is a manufacturing process that uses a high-pressure liquid to uniformly compact powdered materials. This method excels at forming these powders into a solid, homogeneous mass, creating complex shapes with consistent density and structural integrity before they undergo final machining or sintering.
The fundamental trade-off of CIP is sacrificing some degree of final dimensional precision in exchange for superior material uniformity and the ability to create complex geometries. This makes it an invaluable process for high-performance components where internal integrity is more critical than exact initial dimensions.
How Cold Isostatic Pressing Achieves Uniformity
The unique advantage of CIP comes from its method of applying pressure. Unlike conventional pressing which applies force from one or two directions, CIP surrounds the material with pressure.
The Core Mechanism: Isostatic Pressure
The process begins by placing a powdered material inside a flexible, sealed mold. This entire assembly is then submerged in a chamber filled with a liquid, typically water.
An external pump then pressurizes this liquid, creating isostatic pressure. This means the pressure is applied equally and simultaneously on every single point of the mold's surface.
The Role of the Flexible Mold
The flexible mold is the key that translates the liquid pressure directly to the powder within. As the fluid pressure increases, the mold collapses inward uniformly, compressing the powder from all sides at once.
The Result: A High-Integrity "Green Body"
This uniform compression results in a part, often called a "green body," with exceptionally consistent density throughout its volume. It effectively eliminates the density gradients and internal stresses that cause weakness and warping in parts made by other methods.
Key Advantages for Demanding Applications
The uniform density achieved through CIP translates directly into superior material properties and design freedom, making it essential for critical industries like aerospace, medical, and automotive.
Superior Density and Microstructure
By minimizing voids and ensuring consistent particle packing, CIP produces parts that are stronger and more durable after the final sintering (firing) stage. This is crucial for components that must withstand extreme stress or temperature.
Freedom to Create Complex Geometries
Because the pressure conforms to the shape of the flexible mold, CIP allows for the production of highly complex and intricate shapes. This includes components with undercuts, hollow sections, or variable wall thicknesses that are difficult or impossible to achieve with rigid dies.
Minimized Distortion and Cracking
The absence of internal stress gradients means that components pressed via CIP are far less likely to distort, warp, or crack during the high-temperature sintering process. This leads to higher yields and more reliable final parts.
Understanding the Trade-offs and Challenges
While powerful, CIP is not a universal solution. A successful outcome depends on carefully managing its inherent technical requirements and limitations.
The Challenge of Dimensional Control
The use of a flexible mold means that achieving tight dimensional tolerances directly out of the press can be difficult. The final part will often require some level of machining to meet precise specifications, which must be factored into the overall process cost.
The Critical Importance of Powder Quality
CIP is highly sensitive to the characteristics of the starting powder. The material must have the right particle size distribution, flowability, and density to ensure it compacts evenly and predictably under pressure.
The Nuances of Tooling Design
The design of the flexible mold, or tooling, is critical. It must be engineered to deform correctly under pressure to produce the desired shape while also being durable enough to withstand the high-pressure cycles.
Making the Right Choice for Your Project
Selecting the right manufacturing process requires aligning its capabilities with your primary goal. CIP offers a distinct set of advantages for specific objectives.
- If your primary focus is maximum material integrity and complex shapes: CIP is an excellent choice for components like medical implants or aerospace turbine parts where internal strength is paramount.
- If your primary focus is high-volume production with tight dimensional tolerances: A different method like conventional uniaxial pressing might be more cost-effective for simpler parts like standard fasteners.
- If you are working with brittle or difficult-to-press powders: CIP's uniform, non-directional pressure provides a significant advantage for materials like advanced ceramics, graphite, and refractory metals.
By understanding this unique balance of strengths and limitations, you can leverage CIP to produce high-performance components that are simply not possible with conventional methods.
Summary Table:
| Key Aspect | Description |
|---|---|
| Process | Uses high-pressure liquid for uniform powder compaction |
| Main Advantage | Superior material uniformity and complex shape capability |
| Key Trade-off | Sacrifices dimensional precision for internal integrity |
| Ideal Applications | Aerospace, medical implants, automotive components |
| Common Materials | Advanced ceramics, graphite, refractory metals |
Ready to enhance your lab's capabilities with cold isostatic pressing? KINTEK specializes in lab press machines, including automatic lab presses, isostatic presses, and heated lab presses, designed to meet the demanding needs of laboratories. Our solutions deliver precise compaction, improved material integrity, and the ability to create complex shapes for high-performance applications. Contact us today to discuss how our equipment can optimize your processes and drive innovation in your projects!

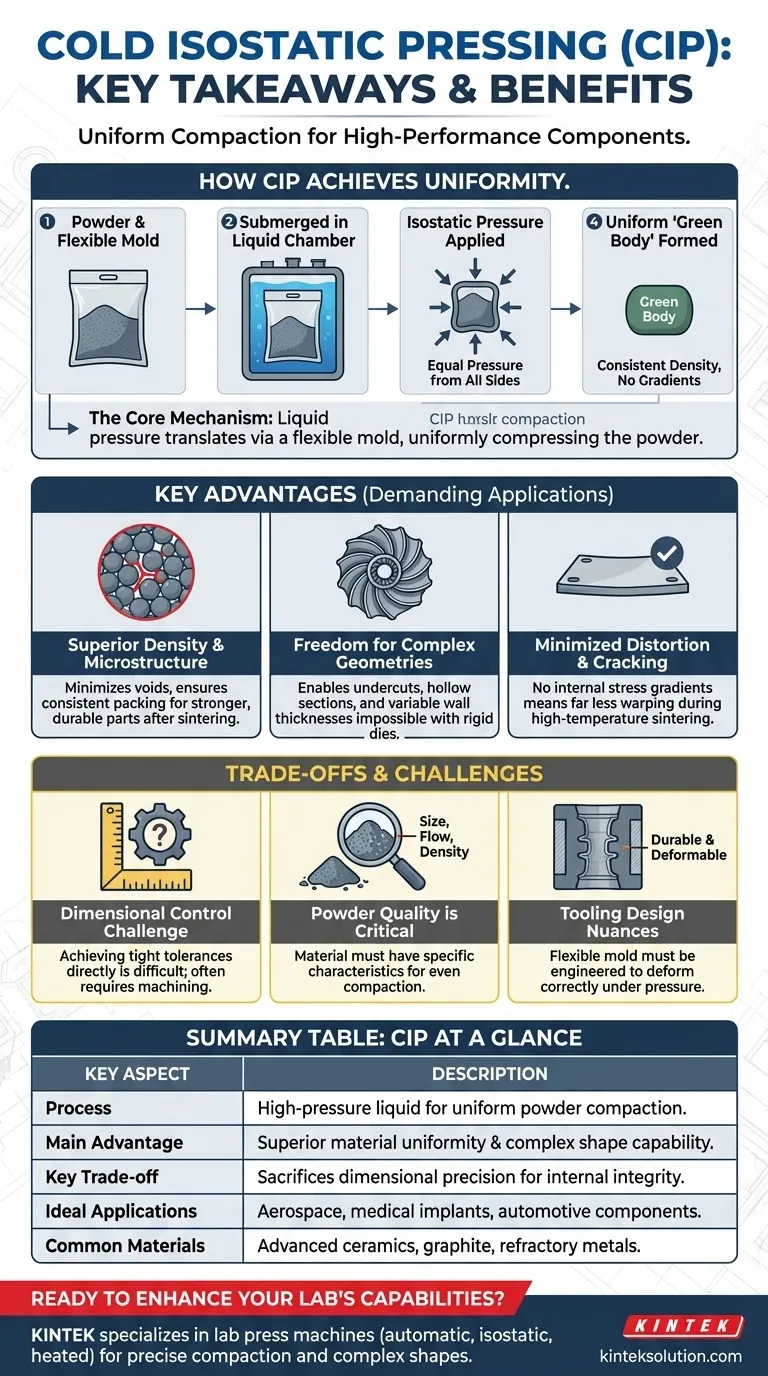

Visual Guide
