In X-ray Fluorescence (XRF) sample preparation, the two primary types of pellet dies are the standard die and the ring die. The fundamental difference lies in how the final sample pellet is formed and handled. Standard dies create a simple, standalone pressed disc of material, often supported by an aluminum cup, while ring dies encase the sample within a durable steel ring for automated handling.
The choice between a standard die and a ring die hinges on your laboratory's workflow and equipment. Standard dies offer flexibility for manual handling and fragile samples, while ring dies are built for the durability and consistency required by automated, high-throughput systems.
The Purpose of a Pellet Die in XRF
Why Press a Pellet?
The goal of XRF sample preparation is to create a perfectly flat, smooth, and homogenous sample surface to present to the spectrometer.
Pressing loose powder into a dense pellet minimizes analytical errors caused by particle size variations, surface voids, and inconsistent density, leading to more accurate and repeatable results.
The Die's Core Function
The pellet die is the tool that accomplishes this transformation. It consists of a hardened steel body and plungers that contain the sample powder. Under immense pressure from a hydraulic press, the die compacts the powder into a solid, stable disc suitable for analysis.
A Closer Look at Standard Dies
Design and Operation
A standard die is the most straightforward design, typically consisting of a cylindrical body, a base, and one or two plungers. The resulting pellet is a simple, standalone disc of compressed powder that must be handled carefully.
The Role of Support Cups
For samples that are brittle, fragile, or available only in small amounts, a crushable aluminum cup is often used. The cup is placed in the die body first, the sample powder is added, and the assembly is pressed. The cup deforms around the sample, providing a supportive backing and a reinforced edge.
When to Use a Standard Die
Standard dies are ideal for research and development labs, academic institutions, or any environment with lower sample throughput. They offer the most flexibility for handling a wide variety of materials and are perfectly suited for manual loading into a spectrometer.
A Closer Look at Ring Dies
Design and Operation
A ring die operates by first placing a rigid steel or plastic ring inside the die body. The sample powder is then added into the center of this ring and pressed. The result is a sample pellet that is permanently and securely encased within the protective outer ring.
Built for Automation
The durable ring serves a critical purpose: it protects the brittle sample from chipping and provides a uniform, robust shape that can be reliably gripped by the robotic arms of automated spectrometers. This is essential for high-throughput, 24/7 industrial environments.
When to Use a Ring Die
Ring dies are the standard in high-volume settings like cement plants, mining operations, and industrial quality control labs. If your spectrometer has an automated sample loading system, you will almost certainly need to use a ring die.
Understanding the Trade-offs
Sample Integrity vs. Throughput
The core trade-off is between sample support and handling speed. Standard dies with aluminum cups provide the best reinforcement for delicate pellets. Ring dies prioritize the pellet's external durability for the demands of high-speed automation.
Consumables and Cost
Ring dies require a constant supply of steel rings, which represents an ongoing operational cost. Standard dies can be used with or without aluminum cups, offering more flexibility. Using a standard die without any support cup is the most economical method, but only if your material forms a strong pellet on its own.
The Universal Role of Binders
Regardless of the die you choose, a binding agent like cellulose wax is often mixed with the sample powder (typically at a 20-30% ratio). The binder lubricates the powder during pressing and improves the final pellet's structural integrity. Binders are made of light elements (C, H, O) that are not typically detected by XRF, ensuring they do not interfere with the analysis of the sample itself.
Making the Right Choice for Your Application
Your choice of die directly impacts your workflow efficiency, consumable costs, and compatibility with your instrumentation.
- If your primary focus is research and varied sample types: A standard die offers the most flexibility, especially when using aluminum support cups for new or fragile materials.
- If your primary focus is high-throughput industrial quality control: A ring die is essential for producing the durable, uniformly shaped pellets required by automated spectrometer systems.
- If your primary focus is minimizing consumable costs: A standard die used without support cups is the most economical option, provided your sample material forms a robust pellet on its own.
Understanding your die type is the first step toward creating consistent, high-quality samples for reliable XRF analysis.
Summary Table:
| Die Type | Key Features | Best Use Cases |
|---|---|---|
| Standard Die | Flexible, manual handling, supports aluminum cups for fragile samples | Research labs, academic institutions, low-throughput environments |
| Ring Die | Durable, automated handling, encased in steel ring for protection | High-throughput industrial labs, automated spectrometers, quality control |
Optimize your XRF sample preparation with KINTEK's reliable lab press machines! Whether you're handling delicate research samples or high-throughput industrial processes, our automatic lab presses, isostatic presses, and heated lab presses deliver precise pressure control for consistent, high-quality pellets. Contact us today to discuss your specific needs and enhance your laboratory's efficiency and accuracy.

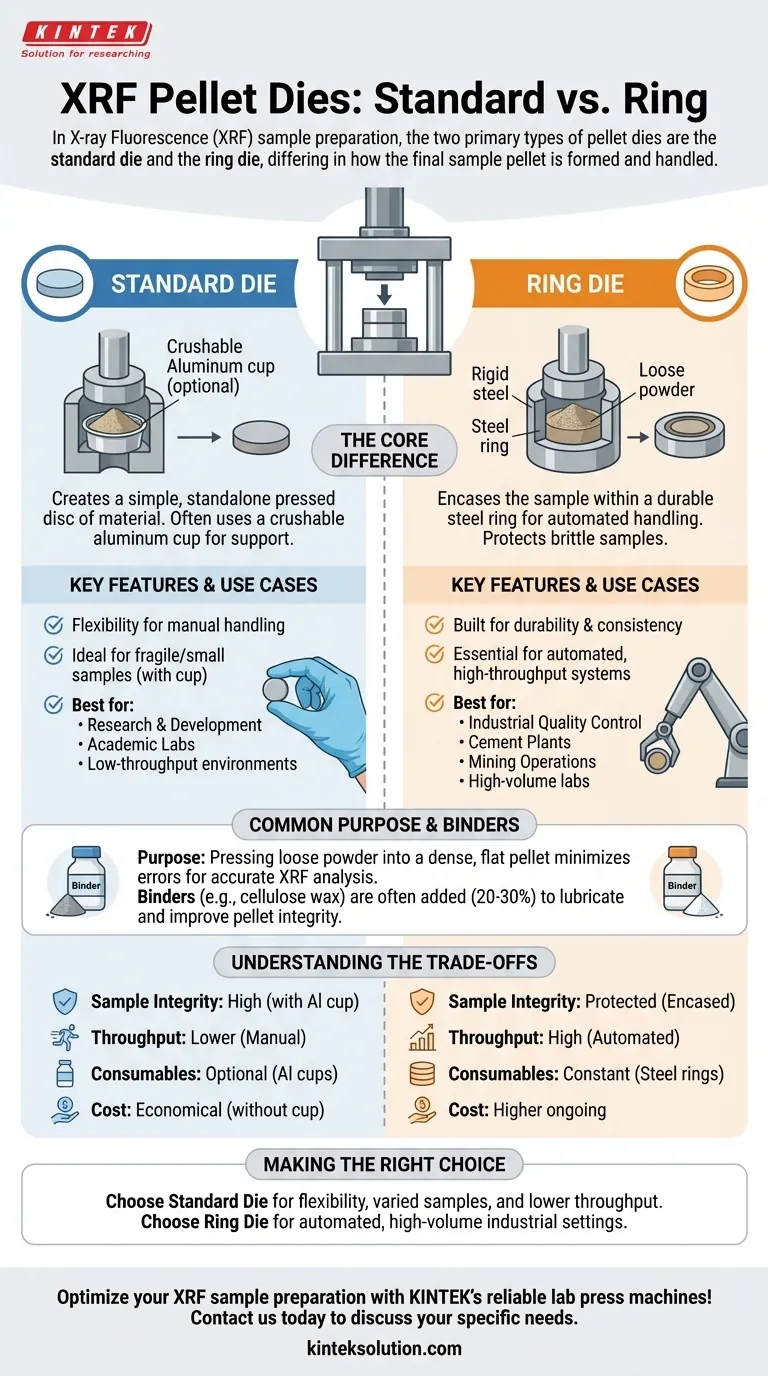

Visual Guide
