At its core, isostatic pressing is a method for compacting powdered materials into a solid, high-density mass. It works by placing the powder into a flexible, sealed mold, submerging it in a fluid-filled pressure vessel, and applying extreme, uniform pressure to the fluid. This pressure is transmitted equally to all surfaces of the mold, eliminating internal voids and creating a highly uniform part.
Isostatic pressing solves a fundamental problem in powder metallurgy: inconsistent density. By using a fluid to apply pressure from all directions simultaneously, it bypasses the limitations of traditional uniaxial pressing and produces components with superior strength and microstructural uniformity, regardless of their geometric complexity.
The Fundamental Principle: Uniform Pressure
The effectiveness of isostatic pressing is rooted in its ability to achieve uniform compaction. This distinguishes it from other common powder consolidation methods.
Why Uniformity Matters
When pressure is applied evenly across the entire surface of a component, the powder particles rearrange and lock together with consistent density. This process eliminates the internal voids and air pockets that weaken the final part. The result is a "green" (unsintered) or fully densified component with isotropic properties, meaning its strength and integrity are the same in all directions.
Contrasting with Uniaxial Pressing
Traditional uniaxial pressing involves compacting powder in a rigid die using one or two punches. This method creates density gradients, as the powder closest to the punch becomes more compacted than the powder farther away. This leads to predictable weak points and limits the complexity of shapes that can be produced effectively. Isostatic pressing has no such limitations.
Deconstructing the Cold Isostatic Pressing (CIP) Process
Cold Isostatic Pressing (CIP) is the most common variation and serves as the foundation for the technology. The process is a sequence of precise, controlled steps.
Step 1: Mold Filling and Sealing
The process begins by filling a flexible, elastomeric mold (often made of rubber or polyurethane) with the desired powder. The mold defines the initial shape of the part. Once filled, it is hermetically sealed to prevent the pressurizing fluid from contaminating the powder.
Step 2: Immersion in the Pressure Vessel
The sealed mold is placed into a high-pressure vessel. This chamber is then filled with a working fluid, typically water (often containing a corrosion inhibitor) or a specialized oil.
Step 3: Pressurization and Compaction
An external pump pressurizes the fluid within the vessel to levels ranging from 400 MPa (60,000 psi) to over 1,000 MPa (150,000 psi). This immense pressure is exerted uniformly over the entire surface of the flexible mold, compacting the loose powder into a solid object with sufficient strength for handling.
Step 4: Depressurization and Part Removal
After a set time, the vessel is depressurized in a controlled manner. The mold is removed from the vessel, and the compacted "green" part is extracted. This part now has uniform density and is ready for subsequent processing, such as machining or sintering (furnace firing).
Understanding the Key Variations
While CIP is foundational, the process can be modified with temperature to achieve different end goals.
Cold Isostatic Pressing (CIP)
Performed at room temperature, CIP is used to create a green part with high uniform density and strength before final sintering. It is ideal for consolidating powders that will be further processed.
Warm Isostatic Pressing (WIP)
WIP operates on the same principle as CIP but at elevated temperatures, typically below the material's sintering point. This can help compact powders that are difficult to press at room temperature, improving green strength.
Hot Isostatic Pressing (HIP)
HIP combines extreme pressure with very high temperatures, often exceeding the material's sintering temperature. This process is used to simultaneously compact and sinter the powder, achieving a final part with nearly 100% theoretical density and eliminating almost all internal porosity.
Common Pitfalls and Considerations
While powerful, successful isostatic pressing requires careful control over key variables to avoid defects.
Process Control Is Critical
The rates of pressurization and depressurization must be carefully managed. If pressure is applied or released too quickly, it can induce stress cracks in the component. The fluid medium and operating pressure must also be selected based on the specific powder material and desired part density.
Tooling and Part Geometry
The design of the flexible mold is crucial for achieving the desired final dimensions, as it must account for the powder's compaction ratio. While the process excels at complex shapes, very sharp internal corners or extreme aspect ratios can still present challenges.
Making the Right Choice for Your Goal
Selecting the right isostatic pressing technique depends entirely on your end objective for the material.
- If your primary focus is creating a high-quality "green" part for later sintering or machining: Cold Isostatic Pressing (CIP) provides the uniform density needed for predictable and successful downstream processing.
- If your primary focus is achieving maximum theoretical density and superior mechanical properties in a single step: Hot Isostatic Pressing (HIP) is the definitive method for producing mission-critical components with no internal voids.
- If your primary focus is cost-effective compaction of complex shapes: CIP often presents a significant advantage over uniaxial pressing by simplifying tooling and eliminating density-related defects.
By understanding these principles, you can effectively leverage isostatic pressing to achieve material properties and component geometries that are unattainable through other methods.
Summary Table:
| Aspect | Details |
|---|---|
| Process Type | Cold Isostatic Pressing (CIP), Warm Isostatic Pressing (WIP), Hot Isostatic Pressing (HIP) |
| Key Principle | Uniform pressure application via fluid for consistent density and isotropic properties |
| Pressure Range | 400 MPa to over 1,000 MPa |
| Common Applications | Powder metallurgy, ceramics, complex-shaped components |
| Main Benefits | Eliminates voids, enhances strength, handles geometric complexity |

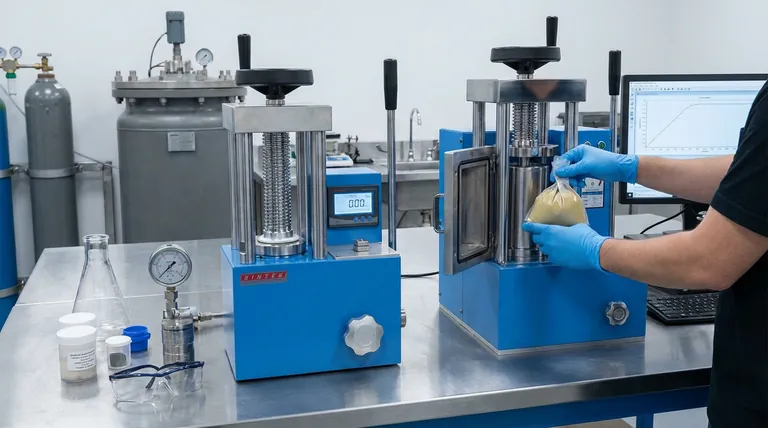

Ready to enhance your lab's capabilities with precise isostatic pressing? KINTEK specializes in lab press machines, including automatic lab presses, isostatic presses, and heated lab presses, designed to deliver uniform density and superior performance for your laboratory needs. Contact us today to discuss how our solutions can optimize your material processing and achieve your research goals!
