At its core, the Wet Bag Cold Isostatic Pressing (CIP) process compacts powder into a solid object using uniform, high-pressure liquid. The raw powder is sealed inside a flexible mold outside of the main equipment, which is then submerged into a fluid-filled pressure vessel where pressure is applied from all directions.
While the Wet Bag CIP process is slower than alternative methods, its defining advantage is unparalleled flexibility. It excels at producing complex, large, or varied batches of parts with exceptional density uniformity, making it ideal for applications where precision and geometry trump sheer speed.
A Step-by-Step Breakdown of the Process
The Wet Bag process is methodical and consists of four distinct stages, with the key differentiator being that the mold is prepared and sealed externally.
Step 1: Mold Preparation and Filling
First, the powdered material (such as ceramic, metal, or composite powders) is carefully loaded into a flexible, reusable mold. These molds are typically made from rubber or elastomers and can be designed with intricate internal geometries.
Step 2: Sealing the "Wet Bag"
Once filled, the mold is hermetically sealed. This creates a self-contained, watertight "bag" that isolates the powder from the pressurizing liquid. This entire step is performed outside of the pressure chamber.
Step 3: Submersion and Pressurization
The sealed mold is then submerged in a hydraulic fluid (often water or oil) within a high-pressure vessel. The vessel is sealed, and high-volume pumps increase the fluid's pressure, subjecting the mold to an isostatic pressure—equal force from all directions.
This uniform pressure compacts the powder inside the mold into a solid, high-density component known as a "green body."
Step 4: Decompression and Part Removal
After a set time (typically 5 to 30 minutes), the pressure is released, the vessel is opened, and the mold is removed. The compacted green body is then carefully extracted from the flexible mold, ready for subsequent processing like sintering or machining.
Key Characteristics and Advantages
The external mold preparation that defines the Wet Bag process directly enables its primary benefits in manufacturing.
Unmatched Shape Complexity
Because the molds are flexible and handled externally, they can be manufactured to produce highly intricate and complex parts that would be impossible with rigid dies.
Superior Density Uniformity
The application of isostatic pressure ensures that the powder compacts evenly throughout the part. This minimizes internal stresses and results in predictable, uniform shrinkage during subsequent heating (sintering), leading to a higher-quality final product.
Flexibility in Production Volume
A single cycle can process multiple bags at once, even if they are of different sizes and shapes. This makes the method highly adaptable for everything from small-batch prototypes to larger-quantity production runs.
Capability for Very Large Components
The Wet Bag process is the industry standard for producing extremely large parts. With pressure vessels reaching diameters of 2000mm (over 6.5 feet) or more, it can create massive components that no other pressing method can accommodate.
Understanding the Trade-offs and Limitations
No single manufacturing process is perfect for every scenario. The flexibility of Wet Bag CIP comes with clear trade-offs, primarily related to speed and labor.
Cycle Time is the Primary Constraint
The process is inherently slower than its "Dry Bag" counterpart. The need to fill, seal, load, and unload molds manually or semi-automatically results in cycle times that are measured in minutes, not seconds.
Increased Labor and Handling
The manual handling of the molds outside the vessel makes the Wet Bag process more labor-intensive. While automation can assist, it does not match the fully automated, in-line nature of other high-volume pressing techniques.
Tooling Investment and Wear
The flexible elastomer molds have a finite lifespan and will eventually wear out, requiring replacement. This tooling cost must be factored into the overall cost per part, especially for high-volume production.
Is Wet Bag CIP Right for Your Application?
Choosing this method depends entirely on your project's priorities. It is a question of trading speed for geometric freedom and part quality.
- If your primary focus is high-volume, standardized production: The slower cycle time of Wet Bag CIP may be a significant bottleneck; a Dry Bag CIP system is likely a better fit.
- If your primary focus is producing large, complex, or prototype parts: Wet Bag CIP is the ideal method, offering unparalleled design freedom and the ability to manufacture massive components.
- If your primary focus is material research and development: The ability to easily use different mold shapes and sizes in the same equipment makes this process perfect for lab-scale experiments and material validation.
Ultimately, understanding this fundamental trade-off between production speed and part flexibility is the key to leveraging Wet Bag CIP effectively.
Summary Table:
| Aspect | Details |
|---|---|
| Process | Uses flexible molds sealed externally, submerged in fluid, and pressurized isostatically for uniform powder compaction. |
| Key Advantages | Unmatched shape complexity, superior density uniformity, flexibility in production volume, capability for large components. |
| Limitations | Slower cycle times, increased labor and handling, tooling wear and replacement costs. |
| Ideal Applications | Complex parts, large components, prototypes, material R&D, and varied batch production. |
Unlock the potential of your laboratory with KINTEK's advanced lab press machines! Whether you're developing new materials or producing complex parts, our automatic lab presses, isostatic presses, and heated lab presses deliver precise, uniform results for superior density and flexibility. Let us help you enhance your R&D and production efficiency—contact us today to discuss your specific needs and discover how KINTEK can support your laboratory goals!

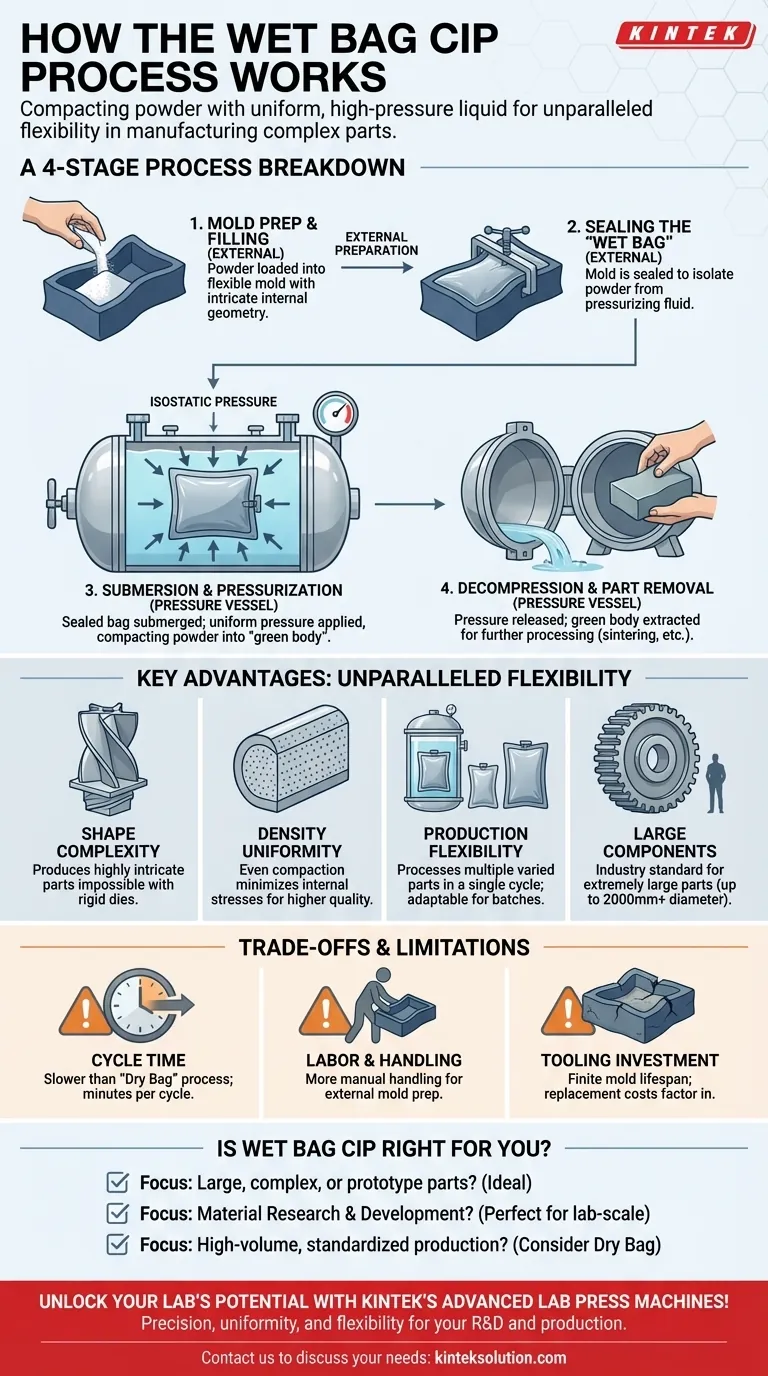

Visual Guide
