In short, the primary advantage of Cold Isostatic Pressing (CIP) is its ability to create parts with exceptional density and uniformity. By applying pressure equally from all directions, CIP overcomes the major limitations of traditional uniaxial pressing, resulting in a higher quality "green" part that sinters more predictably and yields superior final material properties.
The core problem CIP solves is non-uniformity. Unlike traditional pressing which creates density gradients, CIP uses fluid pressure to compact powder evenly, ensuring every part of the component—regardless of its complexity—achieves consistent density and strength.
Why Uniform Pressure is a Game-Changer
Cold Isostatic Pressing works by placing powder in a flexible, sealed mold, submerging it in a fluid within a pressure vessel, and pressurizing the fluid. This method fundamentally changes the quality of the resulting part.
Achieving Superior Density and Uniformity
The defining feature of CIP is the application of isostatic pressure—equal force exerted on all surfaces simultaneously.
This eliminates the density gradients common in uniaxial (single-direction) pressing, where the material closest to the punch is far denser than the material in the middle.
A uniformly dense green body shrinks predictably and evenly during the subsequent sintering phase, drastically reducing the risk of warping, cracking, or internal defects.
Gaining High "Green Strength"
Green strength refers to the mechanical strength of a pressed part before it undergoes final sintering or hardening.
Because CIP compacts the powder so effectively and uniformly, it produces green parts that are significantly stronger and less fragile than those from other methods.
This high green strength is critical for manufacturing, as it allows parts to be handled, machined, or moved between processes with a much lower risk of breakage, ultimately reducing waste and production costs.
Enhancing Final Material Properties
The initial uniformity achieved through CIP directly translates to superior properties in the finished product.
A consistent internal structure leads to enhanced and more reliable mechanical characteristics, such as ductility, strength, and corrosion resistance, across the entire part.
Unlocking Design and Production Freedom
The use of a flexible mold and fluid pressure removes many of the constraints imposed by rigid-die pressing, opening up new possibilities for both design and production efficiency.
Pressing Complex and Irregular Shapes
Rigid dies are limited to simple, extrudable shapes. CIP’s flexible tooling can form highly complex, concave, or intricate geometries that would otherwise be impossible to press in a single step.
Manufacturing Large and High Aspect-Ratio Parts
CIP excels at producing parts that are very long relative to their diameter, such as long rods or tubes. The isostatic pressure ensures these parts are compacted evenly along their entire length.
The process is also highly scalable, making it an efficient choice for producing very large components that would require enormous and costly mechanical presses.
Improving Efficiency and Reducing Waste
By compacting powder more efficiently into a near-net shape, CIP minimizes material waste. This is especially valuable when working with expensive metal or ceramic powders.
Modern electrical CIP systems can automate the process, offering precise pressure control and faster cycle times compared to older manual systems, further reducing labor costs and potential for contamination.
Understanding the Trade-offs
While powerful, CIP is not a universal solution. Its primary trade-off is often speed and initial equipment cost when compared to simpler methods for high-volume production.
Tooling and Dimensional Tolerance
The flexible elastomer molds used in CIP are less rigid than the hard steel dies of a mechanical press. This can result in slightly lower dimensional precision on the "green" part, which is then corrected during sintering.
Cycle Time for Simple Parts
For producing millions of very simple parts like small pills or bushings, the cycle time of a traditional mechanical or hydraulic press is often faster. CIP's process of loading, sealing, pressurizing, and depressurizing can be slower for these applications.
System Complexity and Cost
A CIP system, which includes a high-pressure vessel, pumps, and controls, represents a significant capital investment. The choice to invest depends entirely on the need for the superior quality and geometric freedom it provides.
Making the Right Choice for Your Application
Selecting the correct pressing method depends on balancing the required part quality against production volume and cost.
- If your primary focus is the highest material quality and uniform density: CIP is the superior choice, as it eliminates the internal defects and density variations common in other methods.
- If your primary focus is producing complex shapes or large parts: CIP provides the geometric freedom that rigid tooling cannot, making it the enabling technology for challenging designs.
- If your primary focus is mass-producing simple, small components where good-enough is sufficient: Traditional uniaxial pressing is likely a more cost-effective and faster solution.
Ultimately, choosing Cold Isostatic Pressing is an investment in uniformity, quality, and design flexibility.
Summary Table:
| Advantage | Description |
|---|---|
| Uniform Density | Applies equal pressure from all directions, eliminating density gradients for consistent parts. |
| High Green Strength | Produces strong green parts that reduce breakage during handling and machining. |
| Design Flexibility | Enables pressing of complex, irregular, and large shapes with flexible molds. |
| Enhanced Final Properties | Leads to improved ductility, strength, and corrosion resistance after sintering. |
| Reduced Waste | Compacts powder efficiently into near-net shapes, minimizing material loss. |
Ready to elevate your pellet preparation with Cold Isostatic Pressing? KINTEK specializes in lab press machines, including automatic lab presses, isostatic presses, and heated lab presses, designed to meet the unique needs of laboratories. Our solutions deliver exceptional density, uniformity, and efficiency, helping you achieve superior material properties and reduce production costs. Contact us today to discuss how our CIP systems can optimize your processes and drive innovation in your lab!

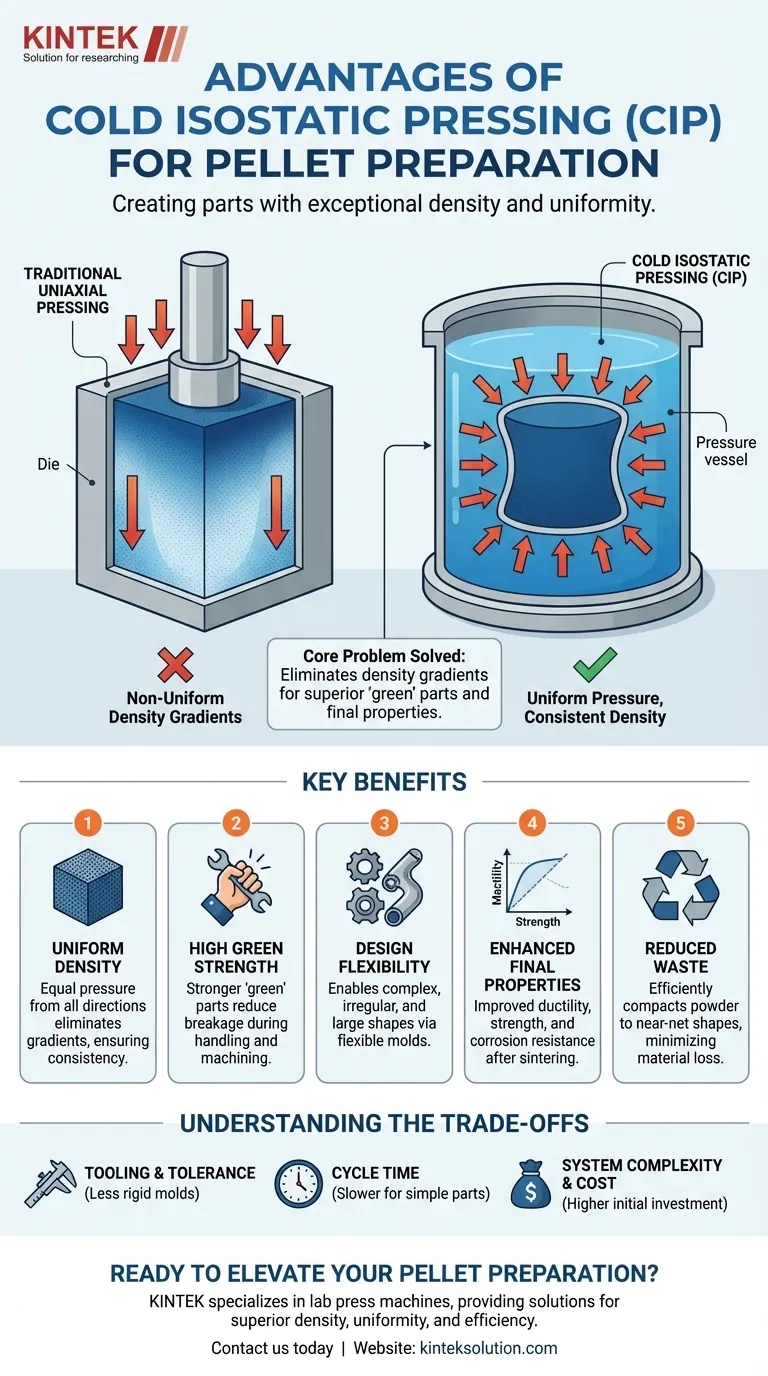

Visual Guide
