In isostatic pressing, the choice between wet bag and dry bag methods comes down to a fundamental trade-off between production volume and manufacturing flexibility. Wet bag pressing is defined by its versatility, making it ideal for producing a wide variety of part shapes in small to large quantities. Conversely, dry bag pressing is engineered for speed and automation, excelling at high-volume production of specific, repetitive parts.
The core decision is simple: Wet bag pressing offers unparalleled flexibility for varied and complex components, while dry bag pressing provides the speed and automation required for mass production of standardized parts. Your application's geometry and required production rate will be the deciding factors.

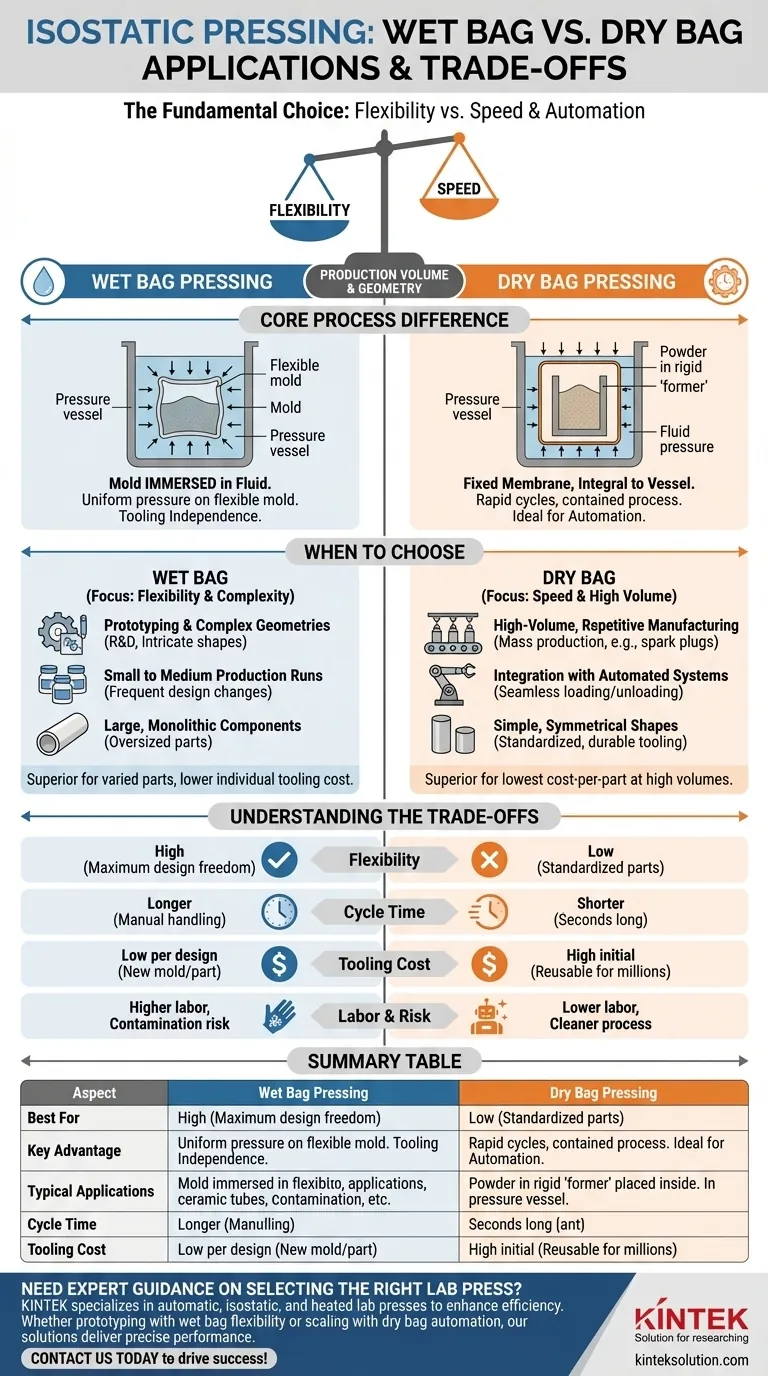

Understanding the Core Process Difference
To select the right method, you must first understand how their mechanics dictate their applications. The names "wet" and "dry" refer to whether the tooling mold is directly immersed in the pressurizing fluid.
How Wet Bag Pressing Works
In wet bag pressing, a flexible, sealed mold filled with powder is completely submerged in a fluid within a high-pressure vessel.
The fluid acts directly on the exterior of the mold, applying uniform pressure from all sides. After the cycle, the mold is removed, stripped from the compacted part, and the process is repeated.
This method's key advantage is tooling independence. You can place virtually any shape of mold into the pressure vessel, making it extremely versatile.
How Dry Bag Pressing Works
In dry bag pressing, the flexible mold is an integral part of the pressure vessel itself. It is a permanent, reusable membrane that is not removed during the production cycle.
Powder is loaded into a separate, rigid tool or "former" which is then placed inside this fixed membrane. Pressure is applied to the fluid surrounding the outside of the fixed membrane, which then compacts the powder within the tool.
This design enables much faster cycles because the "wet" process is contained and tooling does not need to be retrieved from the fluid. It is designed for rapid loading and unloading, making it ideal for automation.
When to Choose Wet Bag Pressing
Wet bag pressing is the superior choice when flexibility and part complexity are the primary concerns.
Prototyping and Complex Geometries
Because any mold shape can be used, wet bag is the industry standard for research and development, prototyping, and producing parts with highly intricate or unusual geometries.
Small to Medium Production Runs
The low cost of individual molds and the ease of switching between different part designs make wet bag pressing highly economical for smaller batches or for products with frequent design changes.
Large, Monolithic Components
Wet bag pressure vessels can often be built to a much larger scale than dry bag systems, making them suitable for producing large single components like ceramic tubes, blocks, or custom aerospace parts.
When to Choose Dry Bag Pressing
Dry bag pressing is the dominant method when production speed and cost-per-part at high volumes are the most critical metrics.
High-Volume, Repetitive Manufacturing
This method is built for the assembly line. It is used to mass-produce millions of identical parts like spark plug insulators, ceramic ball bearings, and other small, standardized industrial components.
Integration with Automated Systems
The clean, rapid, and repetitive nature of the dry bag process allows for seamless integration with robotic systems for loading powder, unloading compacted parts, and transferring them to the next manufacturing stage.
Simple, Symmetrical Shapes
While not a strict limitation, dry bag pressing is most efficient for simpler, often cylindrical or symmetrical shapes where the fixed tooling can be designed for maximum durability and speed.
Understanding the Trade-offs
Choosing a process involves acknowledging its inherent limitations. Your decision must balance capability with operational reality.
Flexibility vs. Speed
This is the central trade-off. Wet bag offers maximum design flexibility but suffers from much longer cycle times due to the manual loading and unloading of molds from the pressure vessel. Dry bag sacrifices this flexibility for cycle times that can be seconds long.
Tooling and Initial Investment
Wet bag tooling is relatively simple and inexpensive per design, but requires a new mold for each part geometry. Dry bag tooling is far more complex and expensive to create, as it is integrated into the machine, but this single investment enables millions of cycles.
Labor and Contamination Risk
The wet bag process is more labor-intensive and carries a higher risk of fluid contamination, as the mold is constantly moved in and out of the pressure medium. Dry bag pressing is cleaner, more contained, and requires significantly less manual intervention.
Making the Right Choice for Your Goal
Selecting the correct pressing method is a strategic decision that aligns your manufacturing capabilities with your product goals.
- If your primary focus is rapid prototyping or producing a wide variety of parts: Wet bag pressing is the clear choice due to its superior flexibility and lower individual tooling cost.
- If your primary focus is mass-producing a specific component at the lowest cost per unit: Dry bag pressing is the superior method, as its speed and automation capabilities are unmatched.
- If your primary focus is producing very large, monolithic components: Wet bag pressing often provides the necessary scale and versatility to accommodate unique, oversized parts.
Ultimately, your choice is dictated by whether your operation values the adaptability of a job shop or the efficiency of a dedicated assembly line.
Summary Table:
| Aspect | Wet Bag Pressing | Dry Bag Pressing |
|---|---|---|
| Best For | Prototyping, complex geometries, small to large batches | High-volume, repetitive manufacturing, automation |
| Key Advantage | Tooling independence and flexibility | Speed and automation |
| Typical Applications | R&D, custom parts, large monolithic components | Spark plug insulators, ball bearings, standardized parts |
| Cycle Time | Longer due to manual handling | Shorter, seconds long |
| Tooling Cost | Low per design, but requires new molds | High initial, but reusable for millions of cycles |
