As a general rule, the standard load for pressing a typical 13 mm diameter FT-IR pellet is approximately 10 tonnes (around 22,000 lbs of force). This force is applied for several minutes to allow the salt matrix, most commonly Potassium Bromide (KBr), to fuse into a transparent disc suitable for analysis.
The specific load is less important than the resulting pressure. The goal is to achieve sufficient pressure (Force ÷ Area) to eliminate air voids and create a glassy, transparent pellet that minimizes light scattering and produces a clean spectrum.
The Goal: From Opaque Powder to Transparent Disc
Understanding the purpose of the pellet is key to mastering the technique. The entire process is designed to suspend your solid sample in an infrared-transparent medium.
Why a Pellet is Necessary
A fine powder scatters infrared light extensively, which obscures the absorption signals from your sample and creates a noisy, unusable spectrum.
By mixing a tiny amount of sample (<1%) with a large amount of an IR-transparent salt like KBr, you prepare it for pressing.
The Role of Pressure
Pressure is the critical force that transforms the opaque salt powder into a transparent disc. When subjected to high pressure, the individual KBr crystals deform and fuse together at their boundaries.
This process, known as cold flow, eliminates the air pockets between particles that cause light scattering, creating a solid, glass-like medium that allows the infrared beam to pass through cleanly.
From Load (Tonnes) to Pressure (MPa)
While "10 tonnes" is the common answer, it is technically a measure of load (total force). The physically relevant quantity is pressure—the force applied over a specific area.
For a 10-tonne load on a standard 13 mm die, the resulting pressure is approximately 740 MPa. This is the pressure required to properly fuse the KBr. If you use a smaller or larger die, the required load will change proportionally to achieve this target pressure.
Understanding the Trade-offs: The "Pressure Window"
Applying the correct pressure is a balancing act. Both too little and too much force will compromise the quality of your results.
The Problem with Too Little Pressure
If the applied load is insufficient, the KBr crystals will not fully fuse.
The resulting pellet will be cloudy, opaque, and mechanically fragile. This opacity causes significant light scattering, leading to a steeply sloping baseline and a very poor signal-to-noise ratio in your final spectrum.
The Problem with Too Much Pressure
Excessive pressure can also cause problems. It can make the pellet too perfect, creating highly parallel surfaces that lead to "interference fringes"—a sinusoidal ripple across your spectral baseline.
More critically, extreme pressure risks cracking the pellet upon release or, in the worst case, damaging the hardened steel pellet die itself, which is an expensive piece of equipment.
How to Apply This to Your Pellet Preparation
Your goal is to find the optimal pressure for your specific setup. Use the standard guidelines as a starting point and adjust based on the visual and spectral results.
- If you are using a standard 13 mm die: Start with the 10-tonne rule of thumb. Ensure your KBr powder is bone-dry, as moisture is the primary cause of cloudy pellets.
- If your pellet is cloudy or opaque: This indicates insufficient fusion. First, confirm your KBr is completely dry, then consider increasing the applied load in small increments on your next attempt.
- If your pellet cracks or the spectrum has interference fringes: This suggests the pressure is too high. Reduce the load on your next press.
- If you are using a different die size: Remember that pressure is the key. A smaller die requires less load, and a larger die requires more load to achieve the same fusing pressure.
Ultimately, visual inspection of the pellet's transparency and the quality of the resulting spectrum are your most reliable guides to perfecting the technique.
Summary Table:
| Aspect | Details |
|---|---|
| Standard Load | 10 tonnes (approx. 22,000 lbs) for 13mm diameter |
| Target Pressure | ~740 MPa to fuse KBr and eliminate air voids |
| Pellet Quality | Transparent disc for minimal light scattering |
| Common Issues | Cloudiness (low pressure), cracking/fringes (high pressure) |
| Key Adjustment | Vary load based on die size and pellet appearance |
Need reliable lab press machines for perfect FT-IR pellets? KINTEK specializes in automatic lab presses, isostatic presses, and heated lab presses designed to deliver precise pressure control for laboratories. Enhance your sample preparation with our durable equipment—contact us today to discuss your needs and boost your analytical accuracy!

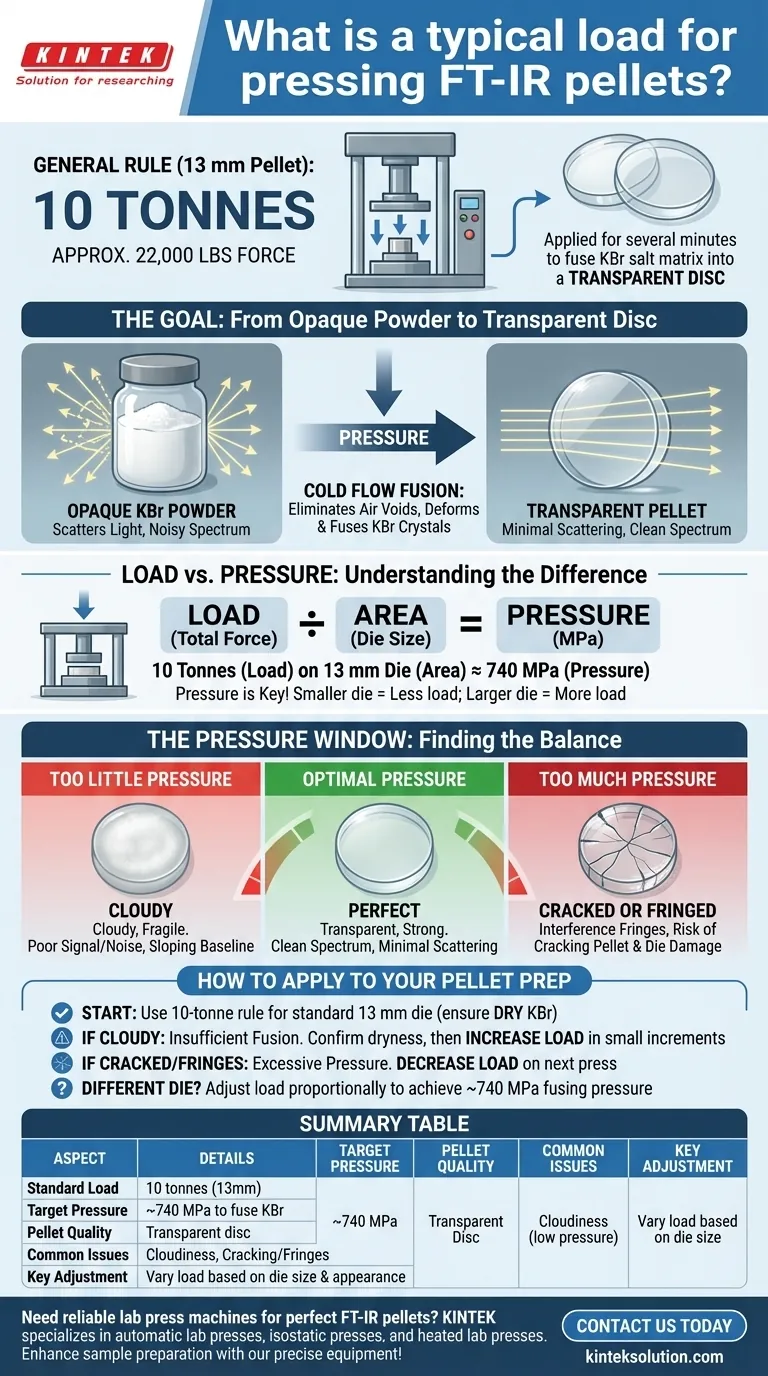

Visual Guide
