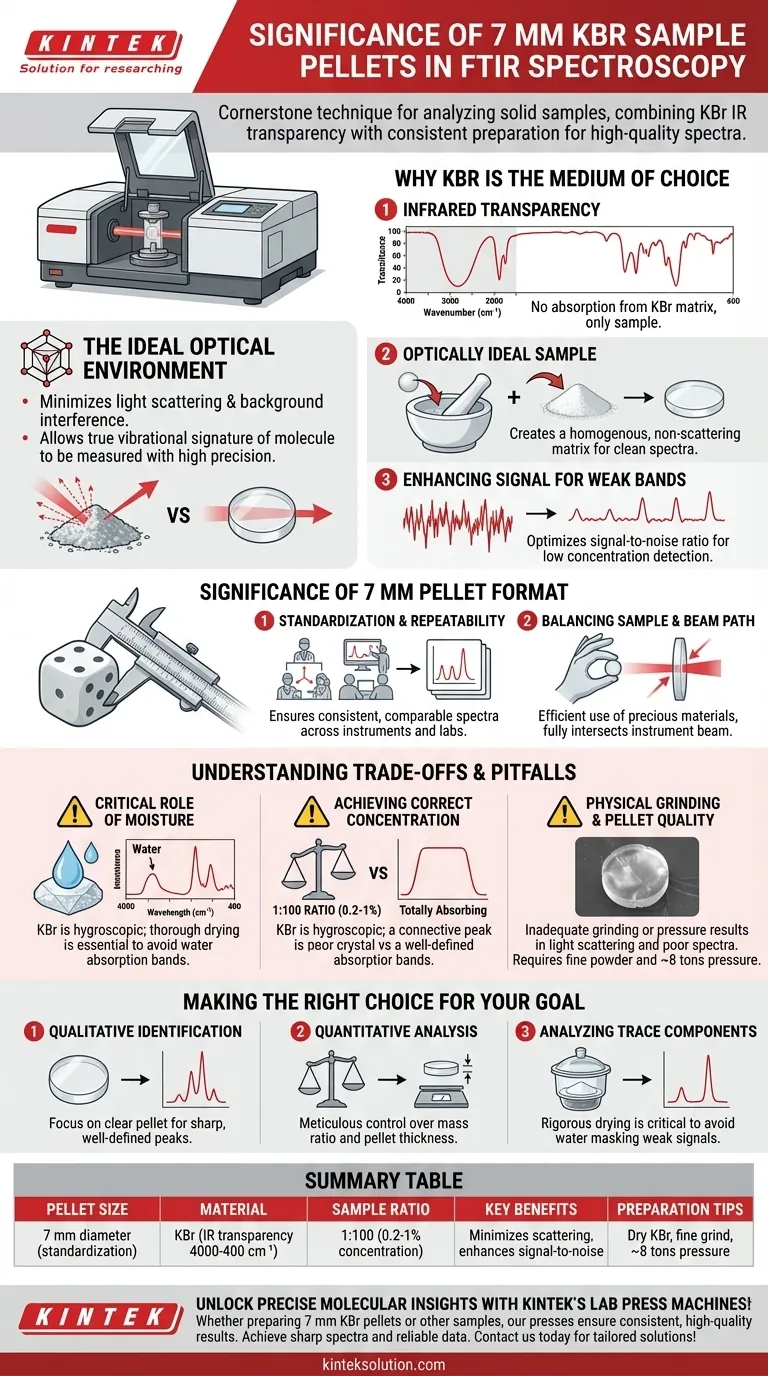

In Fourier Transform Infrared (FTIR) spectroscopy, the 7 mm Potassium Bromide (KBr) pellet method is a cornerstone technique for analyzing solid samples. Its significance lies in its ability to combine KBr's infrared transparency with a simple, consistent preparation process, yielding high-quality spectra with sharp, well-defined peaks perfect for molecular identification.
The core purpose of the KBr pellet method is not just to hold a sample, but to create an ideal optical environment. By uniformly dispersing a small amount of a solid sample within an infrared-transparent matrix, you minimize light scattering and background interference, allowing the true vibrational signature of your molecule to be measured with high precision.
Why KBr is the Medium of Choice
The selection of Potassium Bromide is intentional and critical to the success of the analysis. It possesses unique properties that make it the ideal medium for creating a solid-state sample window.
The Principle of Infrared Transparency
The most important property of KBr is its transparency to infrared light across the vast majority of the mid-IR region (4000-400 cm⁻¹), where most fundamental molecular vibrations occur.
This means the KBr matrix itself does not absorb the IR radiation, ensuring that any absorption peaks detected in the spectrum originate solely from the sample of interest, not the medium holding it.
Creating an Optically Ideal Sample
When analyzing a raw solid powder, the IR beam can scatter off the surfaces of the particles. This scattering effect distorts the spectral baseline and can obscure important peaks, making the data difficult to interpret.
By grinding the sample with KBr and pressing it into a thin, transparent pellet, you effectively suspend the sample molecules in a non-scattering matrix. This creates a homogenous medium that allows the IR beam to pass through with minimal disruption, resulting in a clean, high-quality spectrum.
Enhancing Signal for Weak Bands
The KBr pellet method is excellent for detecting components at low concentrations. By creating a uniform dispersion, you optimize the signal-to-noise ratio.
This allows for the clear detection of weak absorption bands that might otherwise be lost in the background noise of other sampling techniques, which is crucial for quality control and forensic analysis.
The Significance of the 7 mm Pellet Format
While various pellet die sizes exist, the 7 mm diameter is a widely adopted standard for practical reasons.
Standardization and Repeatability
Using a standard 7 mm die ensures that spectra are consistent and comparable between different experiments, instruments, and even laboratories. This standardization is vital for creating reliable spectral libraries and validating results.
Balancing Sample Amount and Beam Path
The 7 mm format strikes a perfect balance. It is large enough to be easily handled and to fully intersect the instrument's IR beam, but small enough to require only a few milligrams of sample. This makes it an efficient method for analyzing precious or limited materials.
Understanding the Trade-offs and Pitfalls
While powerful, the KBr pellet technique demands careful execution. Flaws in preparation are a common source of poor-quality spectra.
The Critical Role of Moisture
KBr is hygroscopic, meaning it readily absorbs moisture from the atmosphere. Water has very strong and broad absorption bands in the IR spectrum (around 3400 cm⁻¹ and 1640 cm⁻¹), which can easily obscure sample peaks.
Therefore, the KBr powder must be thoroughly dried before use and the prepared pellet must be stored in a desiccator to prevent water contamination.
Achieving Correct Sample Concentration
FTIR is a highly sensitive technique. The typical sample-to-KBr ratio is about 1:100, or a sample concentration between 0.2% and 1%.
If the concentration is too high, the strongest absorption bands will be "totally absorbing," appearing flat-topped and making quantitative analysis impossible. If it's too low, the signal will be too weak to detect.
Physical Grinding and Pellet Quality
The sample and KBr must be ground together into an extremely fine powder using an agate mortar and pestle. Inadequate grinding results in larger particles that cause light scattering, leading to a sloping baseline and distorted peak shapes.
Furthermore, insufficient pressure (typically ~8 tons is required) during pressing will result in a cloudy, brittle pellet that performs poorly.
Making the Right Choice for Your Goal
The KBr pellet method is a versatile tool, but optimal preparation depends on your analytical objective.
- If your primary focus is qualitative identification: Your main goal is a clear, transparent pellet that produces sharp, well-defined peaks suitable for comparison with spectral libraries.
- If your primary focus is quantitative analysis: Meticulous control over the sample-to-KBr mass ratio and consistent pellet thickness are paramount for achieving reproducible results.
- If your primary focus is analyzing trace components: Rigorous drying of the KBr and sample is the most critical step to avoid having your weak signals masked by overwhelming water peaks.
Mastering the KBr pellet technique transforms it from a simple preparation step into a powerful tool for unlocking precise molecular insights.
Summary Table:
| Aspect | Key Details |
|---|---|
| Pellet Size | 7 mm diameter for standardization and efficient sample use |
| Material | Potassium Bromide (KBr) for IR transparency (4000-400 cm⁻¹) |
| Sample Ratio | 1:100 sample-to-KBr ratio (0.2-1% concentration) |
| Key Benefits | Minimizes light scattering, enhances signal-to-noise, ideal for qualitative/quantitative analysis |
| Preparation Tips | Dry KBr thoroughly, grind finely, apply ~8 tons pressure for clear pellets |
