When preparing a sample for FTIR analysis, the typical diameter for a pressed pellet ranges from 3 mm to 13 mm. The most common size is 13 mm, but the required diameter is ultimately determined by the specific sample holder design of your FTIR spectrometer.
While the pellet's diameter must fit the spectrometer's holder, the true goal is to create a sample that is thin and translucent. Achieving the right sample concentration and pressing technique is far more critical for a successful analysis than the specific diameter chosen.
Why Pellet Diameter Matters
The physical dimensions of the pellet are the first checkpoint for a successful measurement. An incorrectly sized pellet can render an analysis impossible before you even place it in the instrument.
Matching the Spectrometer's Holder
The primary constraint on pellet diameter is the physical size of the sample holder. Different instrument manufacturers use different standard sizes, with 13 mm being the most common and versatile.
Smaller holders for micro-sampling, often 3 mm or 7 mm, are also available for situations where the sample amount is extremely limited.
Impact on Beam Interaction
The pellet must be large enough to completely intersect the instrument's infrared beam.
If the IR beam passes around the edges of a pellet that is too small, the detector receives unattenuated light. This results in a distorted, inaccurate spectrum with a severely sloped baseline and incorrect absorbance values.
Influence on Pellet Thickness
A larger diameter die (e.g., 13 mm) makes it easier to press a very thin, uniform pellet. Achieving the same thinness with a smaller diameter die is more challenging and can increase the risk of cracking the pellet.
Beyond Diameter: Crafting an Effective Pellet
The diameter is a simple physical requirement. The quality of your spectrum, however, depends entirely on the optical properties of the pellet you create.
The Critical Role of Concentration
The amount of your sample relative to the salt matrix (typically Potassium Bromide, KBr) is crucial. A common rule of thumb is a concentration of 0.1% to 1% sample by weight.
If the concentration is too high, the absorption bands will be "flat-topped." This means all the light at those frequencies is absorbed, and you lose all quantitative information.
Achieving Translucency
The ideal pellet is not opaque or cloudy, but glassy and translucent. Opacity is caused by light scattering from particles that are too large or from moisture in the salt.
This scattering effect leads to a sloping baseline and distorted peak shapes, compromising the quality of your data. Achieving translucency requires finely grinding both the sample and the KBr and ensuring the KBr is perfectly dry.
The Importance of Pressure
Sufficient pressure is required to fuse the salt particles into a single, glassy disc, eliminating air voids that cause scattering.
For a standard 13 mm die, a load of 8-10 tonnes is typically sufficient. Using a vacuum pellet die is highly recommended, as it removes trapped air and moisture during pressing, resulting in a much clearer pellet.
Understanding the Trade-offs and Common Pitfalls
Creating a good pellet is a technique that requires practice. Being aware of common failures can help you troubleshoot your process.
Pitfall: The Pellet is Too Thick
A thick pellet, often resulting from too much total material in the die, will cause total absorption. Even moderately strong peaks will be saturated and unusable for quantitative analysis.
Pitfall: The Pellet is Opaque or Cloudy
This is the most common failure mode. It indicates either that the KBr has absorbed moisture, the sample/KBr was not ground finely enough, or insufficient pressure was applied. A cloudy pellet will produce a poor-quality spectrum.
Pitfall: Using an Incorrect Sample Concentration
Too little sample results in a noisy spectrum where weak peaks are lost. Too much sample, as noted, causes strong peaks to flatten, making the data unreliable.
Making the Right Choice for Your Analysis
Your analytical goal should guide your pellet preparation strategy.
- If your primary focus is routine qualitative analysis: A standard 13 mm die is the most versatile and forgiving choice, making it easier to achieve a thin, uniform pellet.
- If you are working with very limited sample quantity: A smaller diameter die (e.g., 3 mm or 7 mm) is necessary, but requires extra care to achieve the correct thinness and avoid overloading the matrix.
- If you are aiming for quantitative analysis: Consistency is paramount. Use the same die, sample mass, and pressing force for all standards and unknowns to ensure reproducible pellet thickness and path length.
Ultimately, creating a high-quality, translucent pellet is the true key to a reliable FTIR spectrum.
Summary Table:
| Aspect | Details |
|---|---|
| Typical Diameter Range | 3 mm to 13 mm |
| Most Common Size | 13 mm |
| Key Factors | Spectrometer holder fit, beam interaction, pellet thickness |
| Optimal Concentration | 0.1% to 1% sample by weight in KBr |
| Recommended Pressure | 8-10 tonnes for 13 mm die |
| Common Pitfalls | Thick pellets, opacity, incorrect concentration |
Upgrade your FTIR analysis with KINTEK's precision lab press machines! Whether you're using automatic lab presses, isostatic presses, or heated lab presses, our equipment ensures consistent, high-quality pellet preparation for laboratories. Achieve reliable results with optimal pressure and clarity—contact us today to find the perfect solution for your needs!

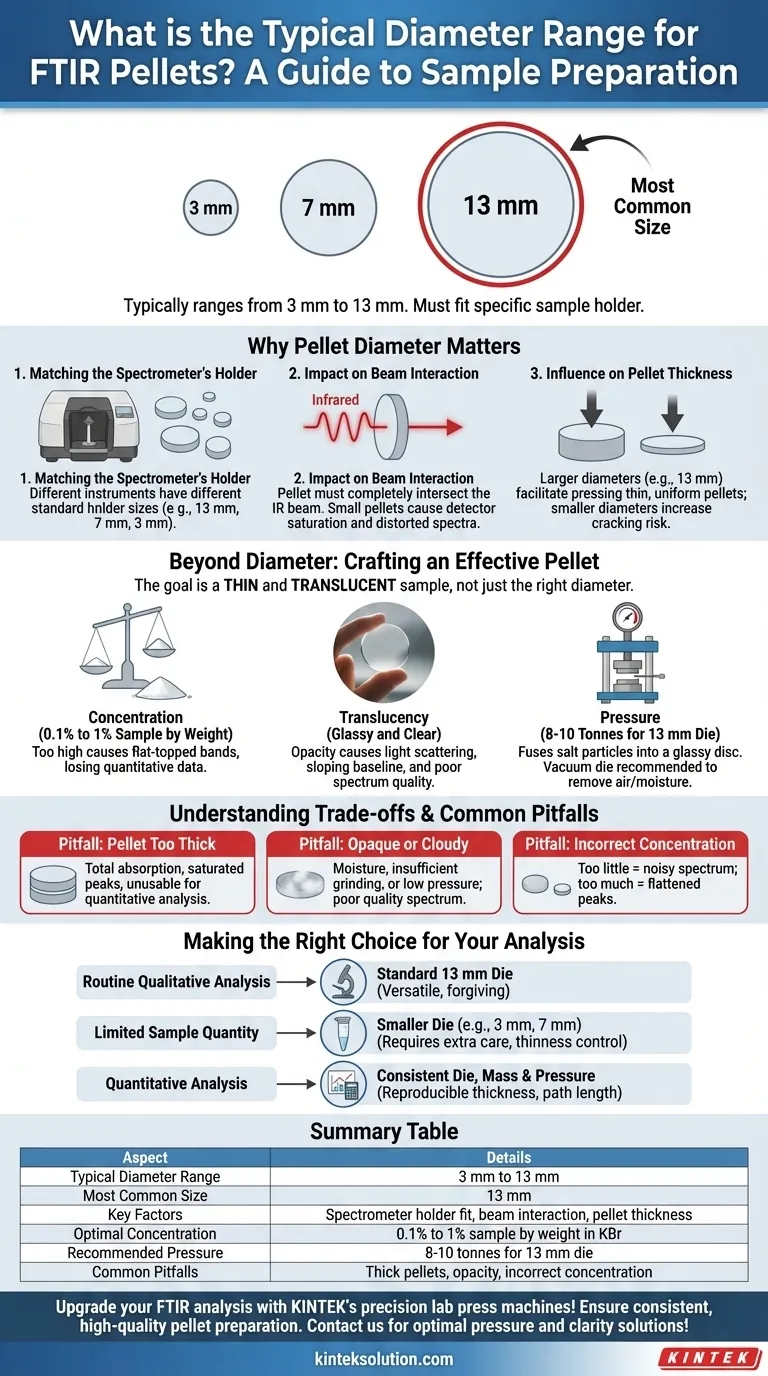

Visual Guide
