For preparing a KBr pellet, the standard practice is to use a sample-to-potassium bromide (KBr) ratio between 1:100 and 1:200 by weight. In practical terms, this means thoroughly mixing approximately 1-2 milligrams of your solid sample with around 200 milligrams of spectroscopic-grade KBr powder. This specific dilution is critical for achieving a clear and usable infrared (IR) spectrum.
The ideal sample-to-KBr ratio is not a rigid rule, but a starting point. Your true goal is to disperse the sample so thinly and uniformly that it can be measured without completely blocking the infrared light, preventing saturated signals and ensuring a high-quality spectrum.
The Principle Behind the KBr Pellet Method
The KBr pellet technique is a cornerstone of FTIR spectroscopy for solid samples. Its success hinges on transforming a solid powder into a nearly transparent window for the IR beam to pass through. Understanding the role of each component is key.
Why KBr is the Standard Matrix
Potassium bromide is used because it has two essential properties. First, it is transparent to mid-infrared radiation, meaning it does not have its own spectral peaks that would interfere with your sample's analysis.
Second, KBr is a relatively soft, crystalline salt that becomes a cohesive, glass-like disc under high pressure. This process, known as cold flow, allows it to encapsulate the sample particles in a uniform, solid matrix.
The Goal: Uniform Dispersion
The primary purpose of the large excess of KBr is to disperse your sample molecules evenly. An ideal pellet ensures that the IR beam interacts with a consistent, low concentration of the sample as it passes through.
If the sample is too concentrated or clumped together, it will absorb all the IR light at its characteristic frequencies. This leads to useless, flat-topped peaks.
Translating Ratio to Reality
While the 1:100 ratio is a guideline, absolute amounts matter. For a common 12.7 mm (half-inch) diameter die, this ratio is typically achieved using:
- Sample: 1-2 mg
- KBr Powder: 200-250 mg
These quantities produce a pellet approximately 1-2 mm thick, which is robust enough to handle and ideal for mounting in a spectrometer.
Understanding the Trade-offs and Common Pitfalls
Simply following the ratio is not enough. Several common issues can ruin a spectrum, and understanding them allows you to troubleshoot your preparation technique.
The Problem of "Too Much" Sample
This is the most frequent error. If the concentration of your sample is too high (e.g., a 1:50 ratio or greater), the resulting IR peaks will be overly intense and "saturated."
The detector is overwhelmed and cannot measure the true peak height, resulting in broad, flat-topped signals. This makes the spectrum non-quantitative and can hide subtle features.
The Problem of "Too Little" Sample
Conversely, if the sample is too dilute (e.g., 1:500), the resulting IR peaks will be too weak. The signal may be indistinguishable from the baseline noise.
This makes it difficult or impossible to confidently identify the functional groups present in your molecule. The signal-to-noise ratio is simply too low for reliable analysis.
The Hidden Issue of Moisture
KBr is hygroscopic, meaning it readily absorbs water from the atmosphere. This is a critical issue because water has very strong IR absorbances (a broad peak around 3400 cm⁻¹ and another near 1640 cm⁻¹).
If you use wet KBr, these large water peaks can completely obscure important sample peaks in those regions, such as N-H, O-H, or C=O stretching vibrations. Always use dry, spectroscopic-grade KBr and minimize its exposure to air.
The Impact of Inadequate Grinding
For a transparent pellet, the particle size of both the sample and the KBr must be smaller than the wavelength of the IR light. If particles are too large, they will scatter the IR beam instead of absorbing it.
This scattering, known as the Christiansen effect, causes a distorted, sloping baseline that makes the spectrum difficult to interpret. Proper technique requires grinding the sample and KBr together in an agate mortar and pestle until they form a fine, flour-like powder.
Making the Right Choice for Your Analysis
The optimal ratio depends on your specific sample and analytical goal. Use the 1:100 standard as your starting point and adjust based on the results.
- If your primary focus is identifying an unknown compound: Start with a 1:100 ratio (e.g., 2 mg of sample in 200 mg of KBr) and inspect the strongest peaks; if they are flat-topped, remake the pellet with less sample.
- If your primary focus is quantitative analysis: Strict consistency is essential; use the exact same sample-to-KBr ratio and total pellet mass for all your standards and unknown samples.
- If your sample is a very strong IR absorber (like a compound with many carbonyl groups): Begin with a more dilute ratio, such as 1:200, to avoid peak saturation from the start.
- If your sample is a known weak IR absorber (like a simple hydrocarbon): You may need a more concentrated ratio, closer to 1:50, to obtain a spectrum with an adequate signal-to-noise ratio.
By understanding these principles, you can skillfully prepare KBr pellets that yield clear and interpretable spectra for any solid sample.

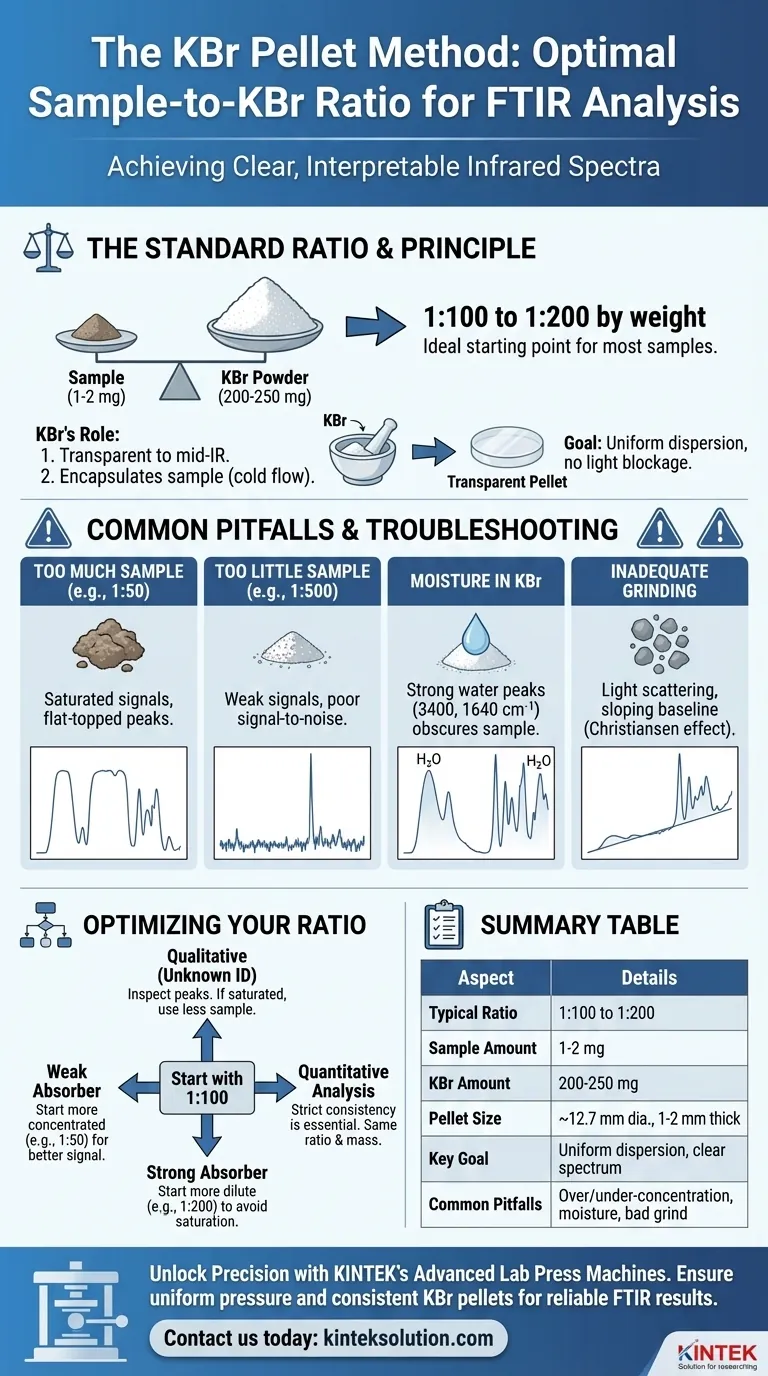

Summary Table:
| Aspect | Details |
|---|---|
| Typical Sample-to-KBr Ratio | 1:100 to 1:200 by weight |
| Sample Amount | 1-2 mg |
| KBr Amount | 200-250 mg |
| Pellet Diameter | 12.7 mm (half-inch) |
| Pellet Thickness | 1-2 mm |
| Key Goal | Uniform dispersion for clear, unsaturated IR spectra |
| Common Pitfalls | Over-concentration, under-concentration, moisture absorption, inadequate grinding |
