In spectroscopy, a hydraulic press is primarily used as a sample preparation tool to transform powdered materials into solid, uniform pellets. By applying immense, evenly distributed force, the press eliminates air voids and particle inconsistencies, creating a sample medium that is suitable for techniques like Fourier Transform Infrared (FTIR) and X-Ray Fluorescence (XRF) spectroscopy.
The core function of a hydraulic press in a lab is not merely to crush a sample, but to transform an unsuitable, non-homogenous powder into a consistent, dense, and often transparent solid. This preparation step is the foundation for acquiring accurate and repeatable spectroscopic data.
The Core Problem: Why Raw Powders Fail in Spectroscopy
Before a hydraulic press is used, many solid samples exist as powders that are fundamentally incompatible with high-precision spectroscopic analysis. This incompatibility stems from several physical challenges.
The Issue of Light Scattering
A loose powder consists of countless tiny particles with air gaps between them. When a beam of light (like an infrared beam) or X-rays hits this surface, it scatters in all directions instead of passing through or interacting with the sample in a predictable way. This scattering drastically weakens the analytical signal and makes quantitative measurement impossible.
The Challenge of Non-Homogeneity
A powder sample is rarely perfectly uniform. Its density can vary, and if it's a mixture, heavier particles might settle differently. A spectrometer's beam only analyzes a very small spot, meaning it could disproportionately measure one area, leading to a result that does not represent the bulk material.
How Hydraulic Presses Create Analytical-Grade Samples
A laboratory hydraulic press systematically solves these problems by applying controlled, uniform pressure, typically from 10 to 25 tons, to the sample within a hardened steel die set.
Creating Optical Transparency for FTIR Analysis
For Fourier Transform Infrared (FTIR) spectroscopy, the goal is to create a sample that is transparent to infrared light. This is achieved by mixing a tiny amount of the powdered sample with a larger amount of an IR-transparent salt, most commonly potassium bromide (KBr).
The hydraulic press then compacts this mixture inside a die. The intense pressure forces the KBr to flow and fuse, encapsulating the sample particles and eliminating the air gaps that cause light scattering. The result is a thin, glass-like, solid pellet through which the IR beam can pass, allowing for clear spectral analysis.
Ensuring Uniform Density for XRF Analysis
For X-ray Fluorescence (XRF) analysis, the goal is to determine elemental composition. Here, optical transparency is not required, but uniform density and a perfectly flat surface are critical.
The press compacts the sample powder (sometimes with a binding agent) into a dense, solid disc. This ensures that the X-ray beam interacts with a consistent and representative amount of material, which is essential for accurate quantitative results. Any variations in density or surface texture would alter the X-ray signal and compromise the measurement's accuracy.
Understanding Key Considerations and Pitfalls
While powerful, using a hydraulic press requires precision. The quality of the spectroscopic data is directly tied to the quality of the pellet.
The Risk of Sample Contamination
The die set used to form the pellet must be meticulously cleaned between samples. Any residue from a previous analysis will be pressed directly into the new pellet, contaminating it and producing inaccurate results.
The Importance of the Matrix Material
For FTIR, the KBr matrix must be exceptionally pure and, most importantly, dry. KBr is hygroscopic, meaning it readily absorbs water from the atmosphere. This moisture creates a strong, broad peak in the infrared spectrum that can easily obscure the actual signal from your sample.
Incorrect Pressure Application
Applying the correct pressure is a balancing act. Too little pressure results in a soft, opaque, or crumbly pellet that will still scatter light. Applying too much pressure can sometimes cause the pellet to fracture or become too thin and difficult to handle.
Making the Right Choice for Your Goal
Your analytical technique dictates your sample preparation priorities. A hydraulic press is a versatile tool, but its use must be tailored to the specific spectroscopic outcome you need.
- If your primary focus is qualitative FTIR analysis: Your goal is an optically transparent pellet. Meticulously drying your KBr and achieving a glass-like clarity is the key to obtaining a clean spectrum.
- If your primary focus is quantitative XRF analysis: Your goal is a robust, homogenous pellet with a perfectly flat surface. This physical consistency is non-negotiable for achieving accurate and reproducible elemental composition data.
Ultimately, mastering the use of a hydraulic press transforms sample preparation from a routine chore into the first and most critical step of a successful analysis.
Summary Table:
| Application | Key Function | Resulting Benefit |
|---|---|---|
| FTIR Spectroscopy | Creates transparent pellets with KBr matrix | Reduces light scattering for clear spectral data |
| XRF Analysis | Forms dense, homogenous discs with flat surfaces | Ensures uniform density for accurate elemental composition |
Upgrade your lab's sample preparation with KINTEK's reliable hydraulic presses!
Our automatic lab presses, isostatic presses, and heated lab presses are designed to deliver precise pressure control for creating flawless pellets, ensuring your FTIR and XRF analyses yield accurate, repeatable results. Serving laboratories in spectroscopy and compositional determination, KINTEK helps you eliminate sample inconsistencies and achieve superior data quality.
Contact us today to discuss how our lab press machines can optimize your workflow and enhance your analytical outcomes!

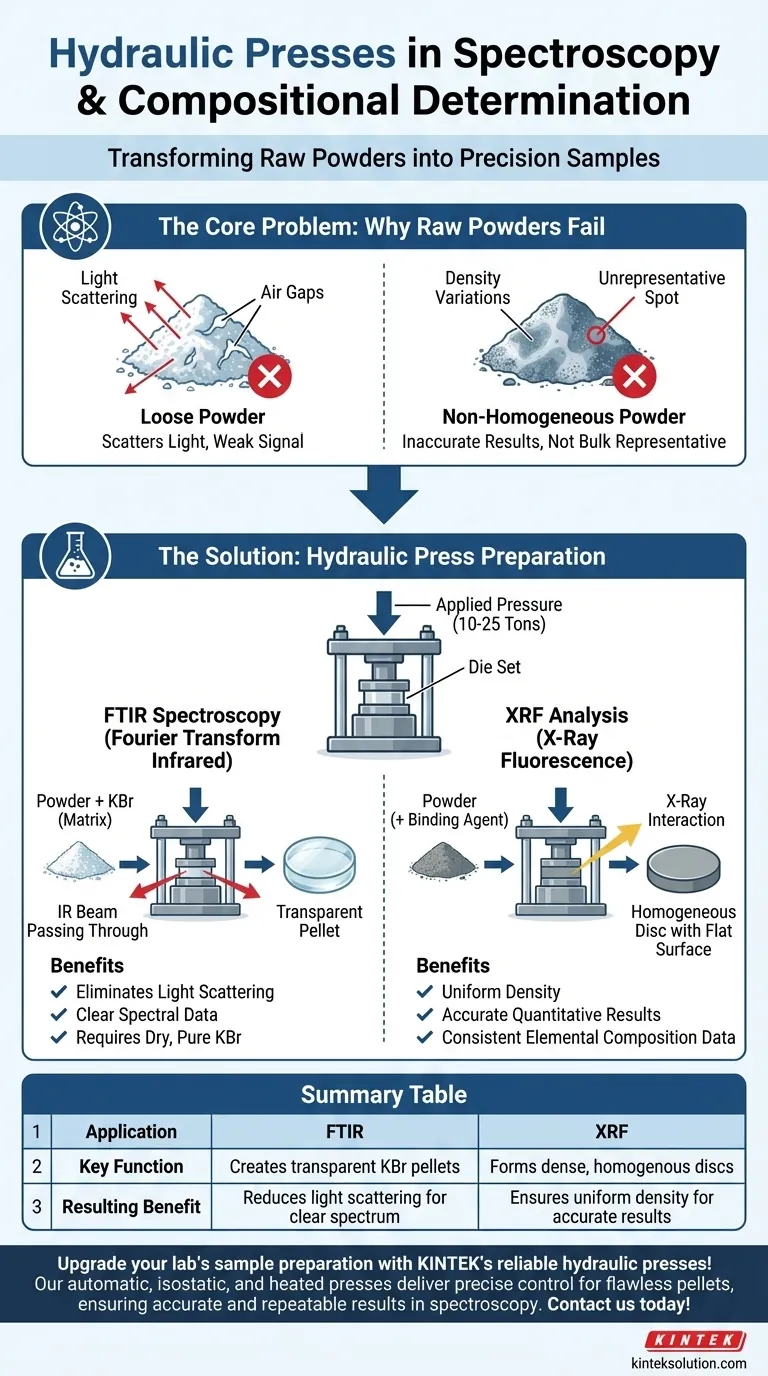

Visual Guide
