What is the working mechanism of isostatic pressing? Unlock Uniform Material Density and Strength

At its core, isostatic pressing is a method of compacting powders into a solid mass by applying equal pressure from all directions simultaneously. Unlike traditional pressing, which uses a die to apply force along a single axis, this process submerges a powder-filled flexible mold in a fluid. By pressurizing the fluid, an intensely uniform force compacts the powder, eliminating internal voids and creating a highly consistent material structure.

The fundamental problem solved by isostatic pressing is non-uniform density. By using a fluid medium to exert pressure equally on all surfaces of a component, it overcomes the limitations of single-axis pressing, resulting in parts with superior strength and structural integrity.

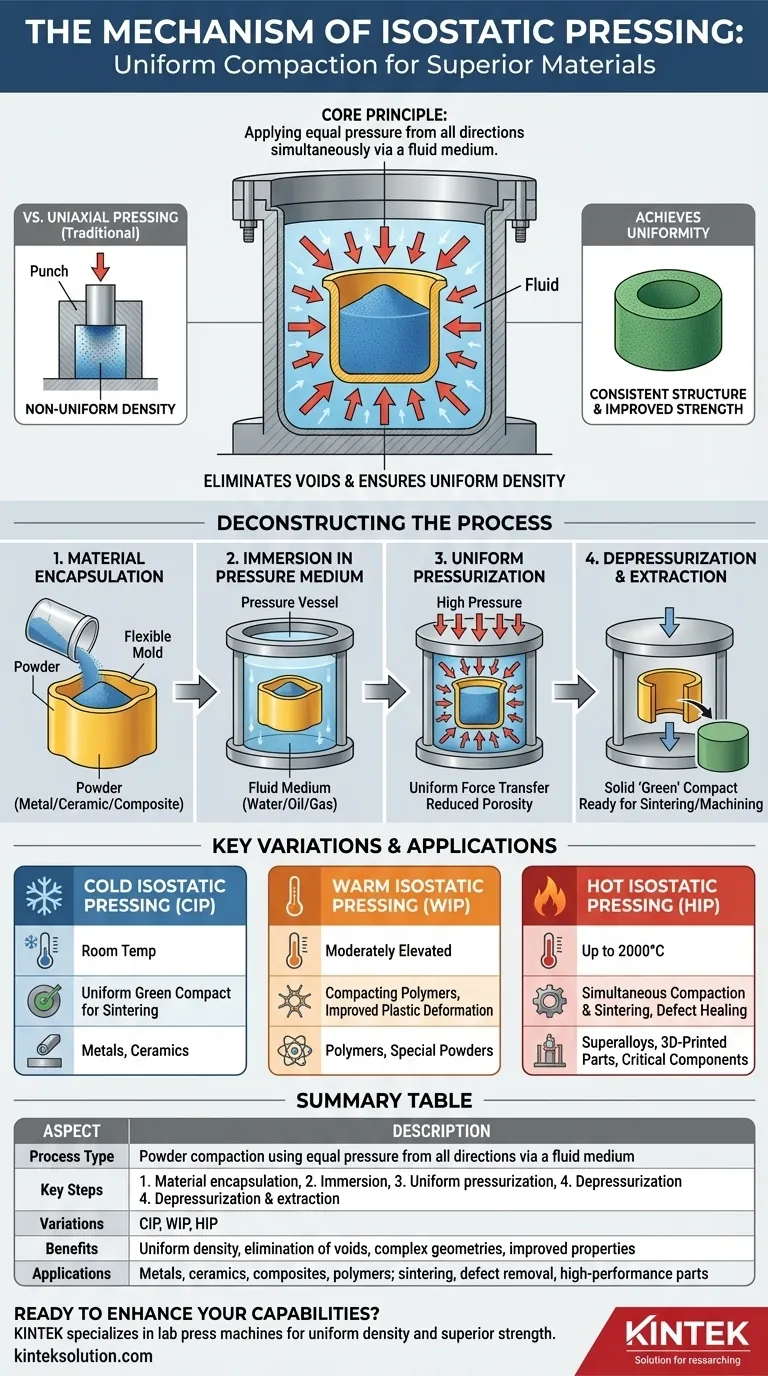

Deconstructing the Isostatic Pressing Process

The mechanism can be broken down into four distinct, sequential steps that transform a loose powder into a dense, solid component, often referred to as a "green" compact.

Step 1: Material Encapsulation

First, the powdered material—which can be a metal, ceramic, or composite—is carefully filled into a flexible, elastomeric mold. This mold, often made of rubber or urethane, defines the initial shape of the final part.

Step 2: Immersion in a Pressure Medium

The sealed mold is then placed inside a high-pressure vessel. This vessel is filled with a fluid, which acts as the pressure-transmitting medium. For cold processes, this is typically water or oil; for hot processes, it is an inert gas like argon.

Step 3: Uniform Pressurization

The fluid within the vessel is then pressurized to very high levels. Because the pressure in a fluid is exerted equally in all directions (a principle of fluid dynamics), this force is transferred uniformly through the flexible mold to the powder within. This even pressure compresses the powder particles together, significantly reducing porosity and increasing the material's density.

Step 4: Depressurization and Extraction

After holding the pressure for a set duration, the vessel is depressurized. The mold is removed, and the newly solidified, compacted part is extracted. This component now has sufficient strength for handling and can proceed to subsequent manufacturing steps like sintering or machining.

The Core Principle: Why Uniform Pressure Matters

The true value of isostatic pressing is understood by comparing it to its alternative, uniaxial (single-axis) die pressing.

Overcoming Single-Axis Limitations

In traditional die pressing, pressure is applied from one or two directions. Friction between the powder and the rigid die walls prevents pressure from being transmitted evenly throughout the component. This results in density gradients, where the areas closest to the punch are denser than the center, creating built-in weak spots.

Achieving Uniform Density

Isostatic pressing eliminates this "die-wall friction" problem entirely. The uniform pressure collapses voids and packs particles with incredible consistency throughout the entire volume of the part, regardless of its shape. This homogenous density is directly linked to improved and more predictable mechanical properties, such as strength and fracture toughness.

Enabling Complex Geometries

Because the pressure is perfectly conforming, isostatic pressing can produce complex shapes, including parts with undercuts or internal cavities, that are impossible to form with rigid dies. This provides significant design freedom for engineers.

Understanding the Key Variations

Isostatic pressing is not a single process but a family of techniques, primarily distinguished by the temperature at which they operate.

Cold Isostatic Pressing (CIP)

CIP is performed at or near room temperature. Its primary purpose is to create a green compact with uniform density and sufficient strength for handling and subsequent sintering. It is the most common variation.

Warm Isostatic Pressing (WIP)

WIP is conducted at moderately elevated temperatures, typically up to a few hundred degrees Celsius. It is used for compacting polymers or other materials that benefit from slight heating to improve their plastic deformation and compaction behavior.

Hot Isostatic Pressing (HIP)

HIP combines immense pressure with very high temperatures (up to 2,000°C). It is a powerful process that can simultaneously compact and sinter powders into a fully dense part in a single step. It is also widely used to eliminate residual porosity in cast or 3D-printed metal components, healing internal defects and dramatically improving their performance.

Making the Right Choice for Your Goal

Selecting the appropriate method depends entirely on your material and the desired properties of the final component.

  • If your primary focus is creating a uniform green compact for subsequent sintering: CIP is the most direct and cost-effective solution for achieving high-quality pre-forms.
  • If your primary focus is achieving maximum theoretical density and superior mechanical properties in one step: HIP is the definitive choice, especially for high-performance superalloys, ceramics, and critical components.
  • If your primary focus is removing defects from an existing cast or additively manufactured part: HIP is the industry standard for healing internal voids and improving fatigue life.
  • If your primary focus is compacting polymers or powders that require moderate heat: WIP offers a specialized solution that balances the benefits of pressure with thermal assistance.

By understanding the fundamental mechanism of uniform fluid pressure, you can effectively leverage isostatic pressing to create components with a level of uniformity and performance unattainable through conventional methods.

Summary Table:

Aspect Description
Process Type Powder compaction using equal pressure from all directions via a fluid medium
Key Steps 1. Material encapsulation in flexible mold, 2. Immersion in pressure medium, 3. Uniform pressurization, 4. Depressurization and extraction
Variations Cold Isostatic Pressing (CIP), Warm Isostatic Pressing (WIP), Hot Isostatic Pressing (HIP)
Benefits Uniform density, elimination of voids, ability to form complex geometries, improved mechanical properties
Applications Metals, ceramics, composites, polymers; used in sintering, defect removal, and high-performance part manufacturing
