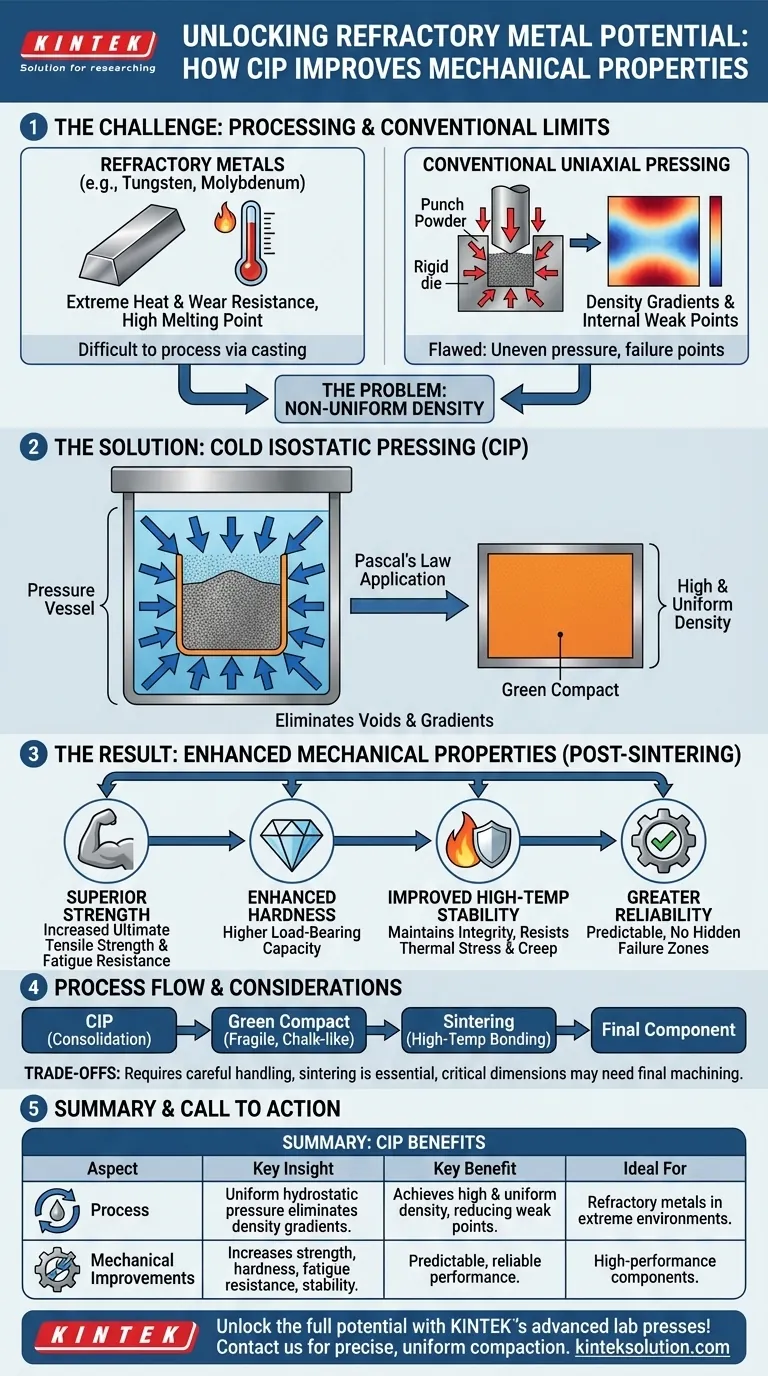

Cold Isostatic Pressing (CIP) is a foundational powder metallurgy process that fundamentally enhances the mechanical properties of refractory metals. It works by subjecting metal powder in a flexible mold to extreme, uniform hydrostatic pressure. This creates a pre-sintered part, known as a "green compact," with exceptionally high and uniform density, which is the direct precursor to superior strength, hardness, and thermal stability.
The core advantage of CIP is not merely densification, but the uniformity of that density. By eliminating the internal voids and density gradients common in other methods, CIP removes the inherent weak points where component failure begins under high stress or temperature.
The Challenge: Processing Refractory Metals
Refractory metals like tungsten, molybdenum, and tantalum are defined by their extraordinary resistance to heat and wear. However, these same properties make them notoriously difficult to process using conventional methods.
The Problem of High Melting Points
These materials have extremely high melting points, making traditional casting impractical. Melting and casting can introduce impurities and result in a coarse, brittle grain structure that undermines the metal's desired properties. This forces the use of powder metallurgy, where metal powder is consolidated and then sintered (heated below melting point) to bond the particles.
The Limitation of Conventional Pressing
The most common method for compacting powder is uniaxial pressing, where a punch presses powder into a rigid die. This process is fast but flawed.
Friction between the powder and the die walls prevents pressure from being transmitted evenly. This results in significant density gradients—the part is denser at the top and bottom but significantly less dense in the middle. These low-density regions become the failure points in the final component.
How CIP Solves the Core Problem
Cold Isostatic Pressing was developed specifically to overcome the limitations of uniaxial pressing. It operates on a simple but powerful principle to achieve a fundamentally better result.
The Principle of Isostatic Pressure
In CIP, the refractory metal powder is sealed in a flexible, airtight mold. This mold is then submerged in a fluid chamber. The fluid is pressurized, typically to thousands of atmospheres, exerting uniform pressure on the mold from all directions simultaneously.
This is an application of Pascal's Law, which states that pressure applied to a confined fluid is transmitted undiminished to every portion of the fluid and the walls of the containing vessel.
Achieving Uniform Density
Because pressure is applied equally from all sides, there is no die wall friction to create density gradients. The powder particles are forced together with the same pressure throughout the entire volume, regardless of the component's shape or complexity.
The result is a green compact with a remarkably high and uniform density, eliminating the internal weak spots inherent in uniaxially pressed parts.
The Impact on Key Mechanical Properties
This uniform density is the direct cause of the significant improvements seen in the final, sintered component.
Enhanced Strength and Hardness
With fewer internal voids and a consistent microstructure, the sintered part has a higher load-bearing capacity. This translates to a measurable increase in ultimate tensile strength, fatigue resistance, and hardness. The material is more predictable and reliable because there are no hidden low-density zones to initiate a fracture.
Improved High-Temperature Performance
The primary application for refractory metals is in high-temperature environments. Internal voids expand under heat and become critical points for thermal stress and creep failure. By creating a uniformly dense structure, CIP ensures the component maintains its structural integrity and dimensional stability at extreme temperatures.
Understanding the Trade-offs
While powerful, CIP is not without its considerations. It is a specific tool for a specific set of challenges.
Green Strength and Handling
A part fresh out of the CIP process (the "green" compact) has a chalk-like consistency. It is fragile and must be handled with care before the sintering stage, which provides the final strength.
Dimensional Tolerance
Because a flexible mold is used, achieving precise, final-part dimensional tolerances directly from the CIP process is difficult. The shape is consistent, but some shrinkage during sintering is expected. Critical dimensions often require final machining after sintering.
The Necessity of Sintering
It is crucial to understand that CIP is the consolidation step, not the final step. The exceptional mechanical properties are only fully realized after a subsequent high-temperature sintering process. CIP creates the ideal, uniform precursor that allows sintering to be as effective as possible.
Making the Right Choice for Your Goal
Selecting a consolidation process depends entirely on the performance requirements and complexity of your component.
- If your primary focus is maximum performance and reliability: CIP is the superior choice for creating components that must withstand extreme temperatures and mechanical stress without failure.
- If your primary focus is high-volume production of simple shapes: Traditional uniaxial pressing may be more cost-effective, but you must accept the trade-off of lower and less uniform mechanical properties.
- If your primary focus is a complex geometry with uniform strength: CIP is uniquely suited for producing intricate shapes that are impossible to form with rigid dies while maintaining consistent density.
By starting with a uniformly dense foundation, CIP empowers you to realize the full, exceptional potential of refractory metals.
Summary Table:
| Aspect | Key Insight |
|---|---|
| Process | CIP uses uniform hydrostatic pressure to compact metal powder, eliminating density gradients. |
| Key Benefit | Achieves high and uniform density in green compacts, reducing internal weak points. |
| Mechanical Improvements | Increases ultimate tensile strength, hardness, fatigue resistance, and high-temperature stability. |
| Ideal For | Refractory metals (e.g., tungsten, molybdenum) used in extreme environments. |
| Considerations | Requires careful handling of green compacts and subsequent sintering for final properties. |
