In laboratory FTIR spectroscopy, a hydraulic press is used to create a thin, solid, transparent sample disc from a powder. It does this by applying tons of force to a mixture of your sample and potassium bromide (KBr) powder inside a specialized mold called a pellet die. This process transforms an opaque powder into a glass-like pellet that allows the instrument's infrared beam to pass through for analysis.
The core problem with analyzing solid powders is that they scatter or block the infrared light needed for measurement. A hydraulic press solves this by compressing the sample into a KBr pellet, which effectively suspends the sample in a solid, IR-transparent matrix, enabling a clear and accurate spectral reading.
The Core Challenge: Analyzing Solid Samples with FTIR
The Problem of Opacity and Scattering
Directly analyzing a solid powder sample with transmission FTIR is often impossible. The fine particles scatter the infrared beam, or the sample is simply too dense and opaque for the light to pass through.
This results in a weak signal, a distorted baseline, and an unusable spectrum. The instrument cannot collect meaningful data about the sample's molecular vibrations.
The KBr Pellet Solution
The solution is to dilute the sample in a medium that is transparent to infrared light. Potassium bromide (KBr) is the most common choice because it has no significant absorbance in the mid-infrared region where most molecular analysis occurs.
By mixing a tiny amount of sample with a large amount of KBr powder (typically a 1:100 ratio), you create a dilute mixture that can be pressed into a transparent disc.

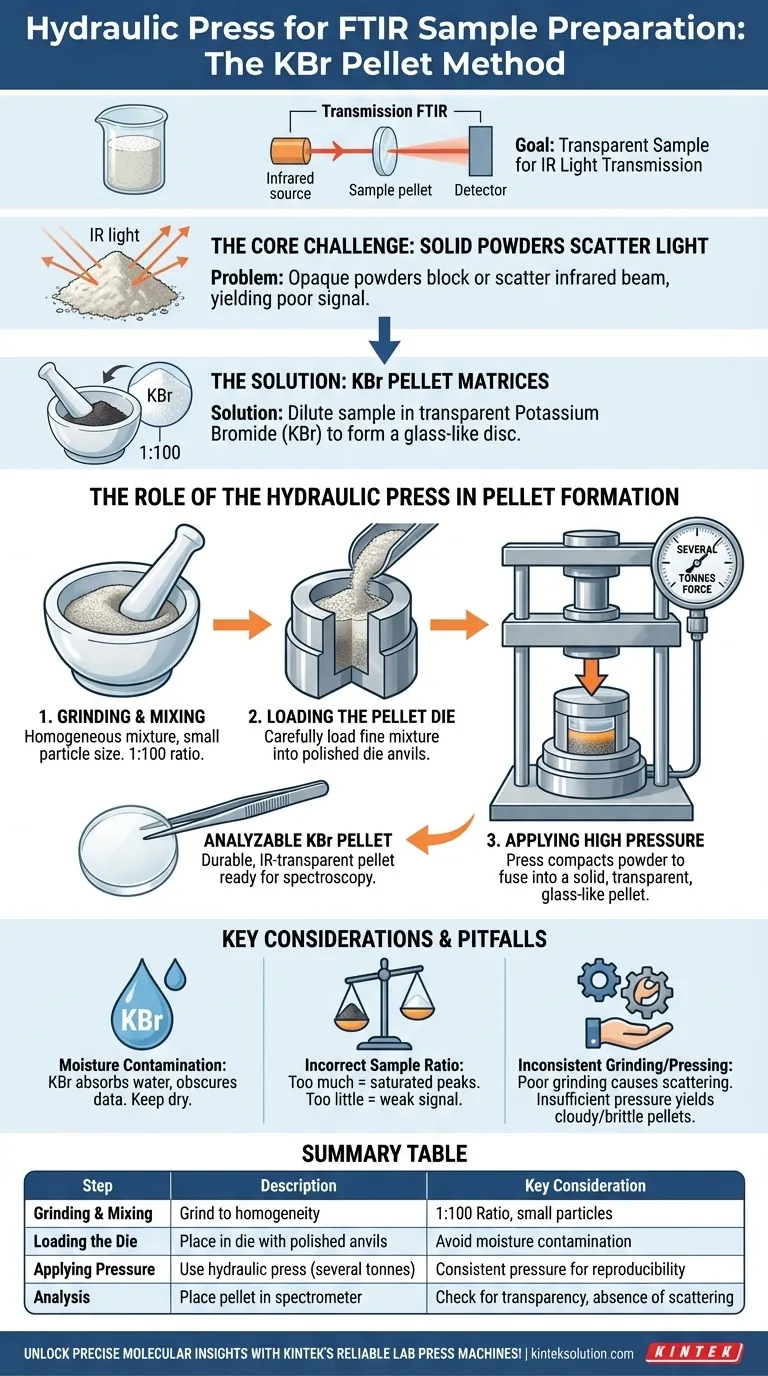

The Role of the Hydraulic Press in Pellet Formation
Step 1: Grinding and Mixing
First, the sample and dry KBr powder are thoroughly ground together, usually with a pestle and mortar. This step is critical to reduce the particle size and ensure the sample is homogeneously distributed throughout the KBr.
Step 2: Loading the Pellet Die
This fine powder mixture is then carefully poured into a pellet die. The die is a robust steel mold consisting of a body and two polished anvils that contain the powder.
Step 3: Applying High Pressure

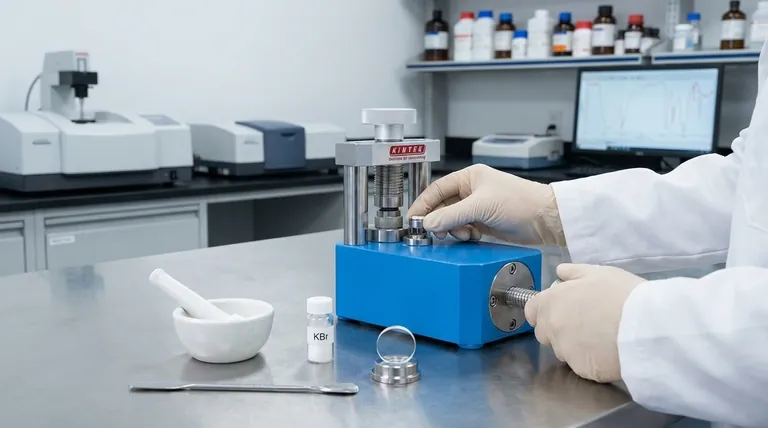

The loaded die is placed into a laboratory hydraulic press. The press applies several tonnes of controlled force, compacting the powder with immense pressure.
This extreme pressure fuses the KBr and sample particles together, forcing out trapped air and forming a single, solid, glass-like pellet. The resulting pellet is durable enough for handling and transparent to the infrared beam. It is then placed in the spectrometer for analysis.
Understanding the Trade-offs and Pitfalls
The Risk of Moisture Contamination
KBr is highly hygroscopic, meaning it readily absorbs water from the atmosphere. If the KBr is not kept perfectly dry, water will be incorporated into the pellet and will show up as broad, strong peaks in your spectrum, potentially obscuring your sample's data.
The Impact of an Incorrect Sample Ratio
Using too much sample (e.g., a 1:50 ratio instead of 1:100) will result in absorption bands that are too intense. The detector becomes saturated, causing the peaks to appear flat-topped and making quantitative analysis impossible.
Conversely, too little sample will produce a weak signal that is difficult to distinguish from background noise.
Inconsistent Grinding and Pressing
If the sample is not ground finely or mixed uniformly, you will see inconsistent results. Poor grinding can also cause light scattering, resulting in a sloping baseline. Likewise, insufficient pressure from the press will result in a cloudy or brittle pellet that breaks easily and yields a poor spectrum.
Achieving a High-Quality Spectrum
The hydraulic press is a simple but powerful tool for sample preparation. Success depends on careful technique at every stage of the process.
- If your primary focus is accurate quantification: Meticulous sample weighing, consistent grinding time, and applying the same pressure for each pellet are non-negotiable for reproducibility.
- If your primary focus is qualitative identification: Ensure the final pellet is visually transparent enough for a clean spectrum, even if the sample-to-KBr ratio is not perfectly exact.
- If you are troubleshooting poor results: Check for moisture contamination (broad peaks around 3400 cm⁻¹) or a sloping baseline, which indicates light scattering from a poorly prepared pellet.
Mastering the KBr pellet technique transforms opaque solids into analyzable samples, unlocking precise molecular insights from your material.
Summary Table:
| Step | Description | Key Consideration |
|---|---|---|
| Grinding and Mixing | Grind sample and KBr powder to ensure homogeneity and small particle size. | Use a 1:100 sample-to-KBr ratio for optimal dilution. |
| Loading the Die | Place mixture into a pellet die with polished anvils. | Avoid moisture to prevent water contamination in the pellet. |
| Applying Pressure | Use hydraulic press to apply high force (several tonnes) to form a solid, transparent pellet. | Ensure consistent pressure for reproducibility and to avoid cloudy or brittle pellets. |
| Analysis | Place the pellet in the FTIR spectrometer for infrared beam transmission. | Check for transparency and absence of scattering for accurate spectral data. |
