In Warm Isostatic Pressing (WIP), the final metallurgy and physical properties of a component are governed by three primary control parameters: temperature, pressure, and time. The processing atmosphere is an additional critical factor that must be managed to prevent unwanted chemical reactions and ensure material integrity. Proper control over this combination is essential to achieve the desired density and performance characteristics.
The core challenge of WIP is not simply applying heat and pressure, but orchestrating a precise, uniform balance between them over a specific duration. This mastery allows for the consolidation of temperature-sensitive materials into complex, high-density parts that would be impossible to form otherwise.
The Core Parameters of WIP Control
To achieve consistent and successful outcomes, you must understand how each variable influences the material during the consolidation cycle.
The Role of Temperature
Temperature is the defining parameter of "warm" isostatic pressing. Its primary function is to bring the material into a state where it can be effectively consolidated.
For materials like polymers or components with binders, the heat softens the material, reducing its resistance to deformation. For powder metals and ceramics, elevated temperature increases atomic mobility and plasticity, aiding in the closure of pores.
Precise temperature control is paramount. Common uniformity standards for WIP systems range from ±3°C to ±5°C, as even minor deviations can lead to inconsistent density or thermal degradation in sensitive materials.
The Function of Pressure
Pressure is the driving force for densification. In WIP, pressure is applied uniformly in all directions (isostatically) via a heated liquid medium.
This uniform pressure distribution ensures that the component densifies evenly, regardless of its geometric complexity. This is a key advantage over unidirectional pressing methods, which can create density gradients and internal stresses.
The liquid medium, heated to a specific viscosity, is injected into the pressure vessel to transmit the force from the pumping system to the sealed part.
The Influence of Time
Time refers to the duration the component is held at the peak processing temperature and pressure. This "hold time" is not passive; it is when critical metallurgical processes occur.
During this phase, mechanisms like plastic yielding, particle rearrangement, and diffusion bonding work to eliminate the remaining porosity within the material.
The required time depends heavily on the material and the target density. Insufficient time results in incomplete densification, while excessive time can lead to unwanted grain growth in metallic materials and is always inefficient from a production standpoint.
The Importance of Atmosphere
The atmosphere within the pressing vessel is a critical quality control parameter, especially for reactive materials.
To prevent oxidation or other chemical reactions at elevated temperatures, the process is often conducted in an inert atmosphere, such as argon. This ensures the chemical composition of the raw material is preserved in the final part.
Understanding the Trade-offs
Optimizing the WIP process involves balancing competing requirements. Understanding these trade-offs is key to developing a robust and cost-effective manufacturing process.
Temperature Uniformity vs. Cost
Achieving tighter temperature uniformity (e.g., ±3°C or better) requires more sophisticated heating systems and vessel designs, which increases equipment cost. While essential for high-performance or sensitive materials, it may be an unnecessary expense for less demanding applications.
Maximum Temperature vs. System Complexity
The need for higher operating temperatures significantly complicates the design of the pressure vessel, seals, and heating elements. This directly translates to higher capital investment and maintenance costs. The selection of operating temperature should be carefully matched to the material's actual requirements.
Cycle Time vs. Final Density
A longer hold time at peak pressure and temperature can improve the final density of a part. However, this directly reduces production throughput. The goal is to find the shortest possible cycle time that consistently meets the minimum required density and performance specifications for the component.
Making the Right Choice for Your Goal
Your process optimization strategy should be guided by the primary objective for your specific material and application.
- If your primary focus is achieving maximum density in metals or ceramics: Prioritize sufficient hold time at the highest safe temperature and pressure to allow for full diffusion and pore closure.
- If your primary focus is processing temperature-sensitive polymers or composites: Emphasize exceptionally precise temperature control and uniformity to operate within the material's narrow processing window without causing degradation.
- If your primary focus is cost-efficiency for near-net shape forming: Concentrate on minimizing cycle time while ensuring the part meets its minimum density and dimensional tolerance requirements.
Ultimately, successful Warm Isostatic Pressing results from methodically tuning these variables to the unique requirements of your material and desired outcome.
Summary Table:
| Parameter | Key Influence | Typical Considerations |
|---|---|---|
| Temperature | Increases material plasticity and atomic mobility for consolidation | Uniformity of ±3°C to ±5°C critical for consistency |
| Pressure | Drives uniform densification in all directions via liquid medium | Avoids density gradients and internal stresses |
| Time | Allows for pore closure and diffusion bonding during hold phase | Balance between density and production efficiency |
| Atmosphere | Prevents oxidation and chemical reactions with inert gases like argon | Essential for reactive materials to preserve integrity |
Optimize your Warm Isostatic Pressing process with KINTEK! We specialize in lab press machines, including automatic, isostatic, and heated lab presses, tailored for laboratory needs. Our expertise ensures precise control of temperature, pressure, and time to enhance material density and performance. Contact us today to discuss how our solutions can benefit your specific applications and boost your lab's efficiency!

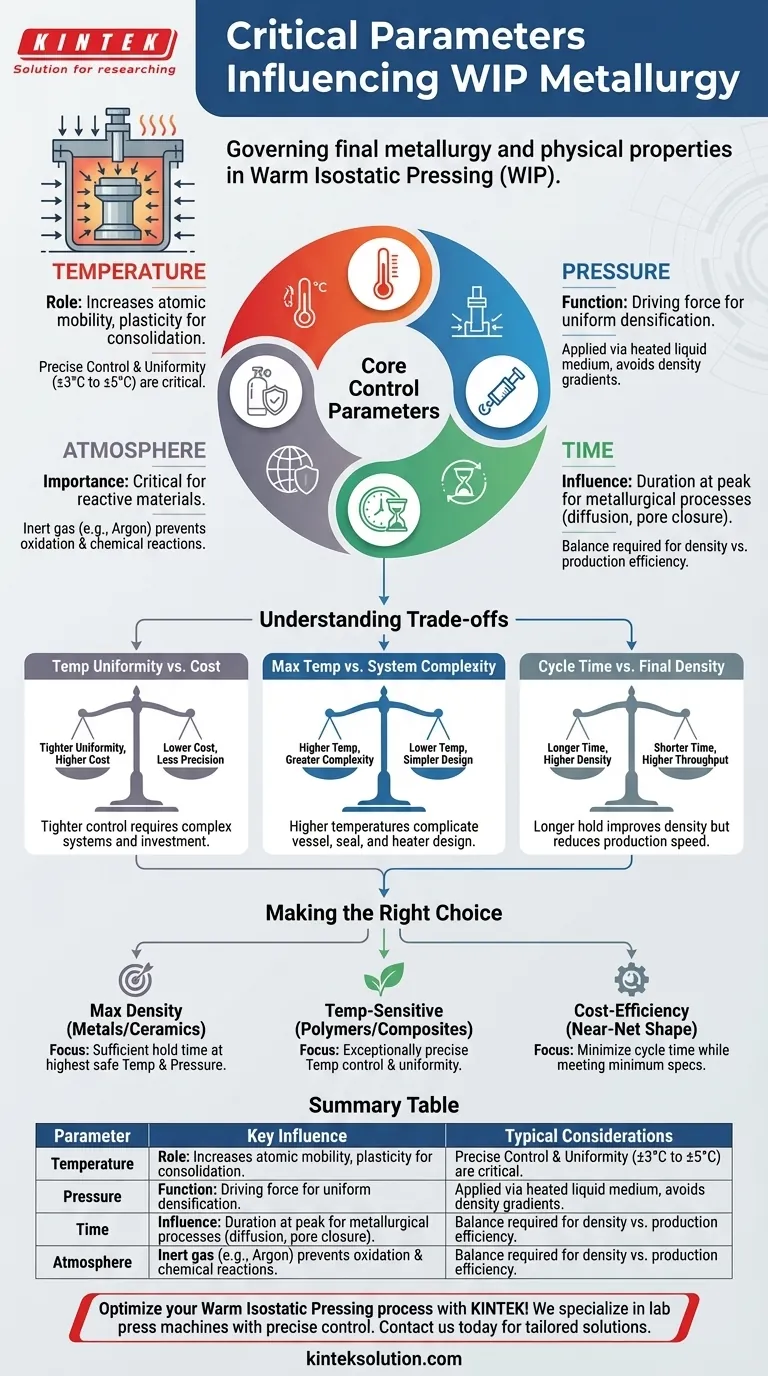

Visual Guide
