In the simplest terms, a heated hydraulic press is a foundational tool in materials research used for two primary purposes: testing how materials behave under immense pressure and high temperatures, and preparing highly uniform samples for detailed chemical analysis. It allows scientists to simulate extreme environments and create perfect specimens, providing critical data for developing new materials and ensuring product quality.
The true value of a heated hydraulic press isn't just its ability to crush things with immense force. Its core function is to provide precise, repeatable control over both pressure and temperature, eliminating variables to reveal a material's true properties and prepare flawless samples for analysis.
The Two Core Functions in Research
A heated hydraulic press serves two distinct but equally critical roles in a laboratory setting: characterizing a material's fundamental properties and preparing it for other forms of analysis.
Function 1: Material Characterization
The press is used to directly measure and observe how a material responds to physical stress.
Simulating Extreme Operating Conditions By applying controlled force and heat, researchers can mimic the demanding conditions a material might face in its intended application. This could be the immense pressure of the deep sea or the high temperatures inside an engine.
This simulation allows for the study of key properties like a material's elasticity (ability to return to its original shape), plasticity (permanent deformation), and its ultimate fracture point.
Evaluating Mechanical Properties The press provides quantitative data on a material's strength, ductility (ability to stretch without breaking), and hardness. This information is not just academic; it is vital for engineering design and quality control.
Accelerating Development Cycles In a process known as direct hot pressing or sintering, the combination of heat and pressure can rapidly fuse powdered materials together. These short sinter cycles significantly reduce the time needed to create and test new material compositions, accelerating the pace of research and development.
Function 2: Analytical Sample Preparation
For many advanced analytical techniques, the quality of the sample is as important as the instrument itself. The press is essential for creating ideal samples.
Creating Uniform Pellets for Analysis The primary goal of sample preparation is to create a homogenous and uniformly dense specimen. A heated press excels at this by compacting powders into solid pellets, ensuring that any subsequent measurement is representative of the entire sample.
Without this uniformity, analytical results can be inconsistent and inaccurate.
Preparing Samples for Spectroscopy Techniques like Fourier-Transform Infrared (FTIR) spectroscopy and X-Ray Fluorescence (XRF) rely on perfectly prepared samples. The press is used to create KBr (potassium bromide) pellets for FTIR or general pellets for XRF.
The immense pressure ensures the powdered sample is evenly distributed and compacted, which is essential for obtaining a clear and reliable analytical signal.
Understanding the Key Advantages
The heated hydraulic press is a staple in materials science because it offers a combination of control, efficiency, and reliability that is difficult to achieve with other methods.
Precise Control of Force and Temperature
The most significant advantage is the ability to independently and accurately control the two most critical variables in material transformation: pressure and heat. This precision allows for highly repeatable experiments.
High Pressure from Low Effort
Hydraulic systems are masters of force multiplication. They can generate extremely high pressures with a relatively small energy input, making them efficient and practical for a laboratory environment. The force can also be adjusted quickly and easily.
Ensuring Repeatability and Accuracy
By removing inconsistencies in sample density and testing conditions, the press eliminates variables that could compromise data. This reliability is the bedrock of sound scientific research, ensuring that results are trustworthy and reproducible.
Making the Right Choice for Your Goal
To leverage a heated hydraulic press effectively, align its function with your primary research objective.
- If your primary focus is material performance: Use the press to simulate extreme service conditions and directly measure mechanical properties like compressive strength, ductility, and failure points.
- If your primary focus is compositional analysis: Use the press to create highly uniform, dense pellets for techniques like FTIR or XRF to ensure your analytical data is accurate and repeatable.
- If your primary focus is rapid material development: Leverage the short sinter cycles of direct hot pressing to quickly create and iterate on new powdered material formulations.
Ultimately, this tool empowers researchers to move beyond theory and understand how materials will truly behave in the real world.

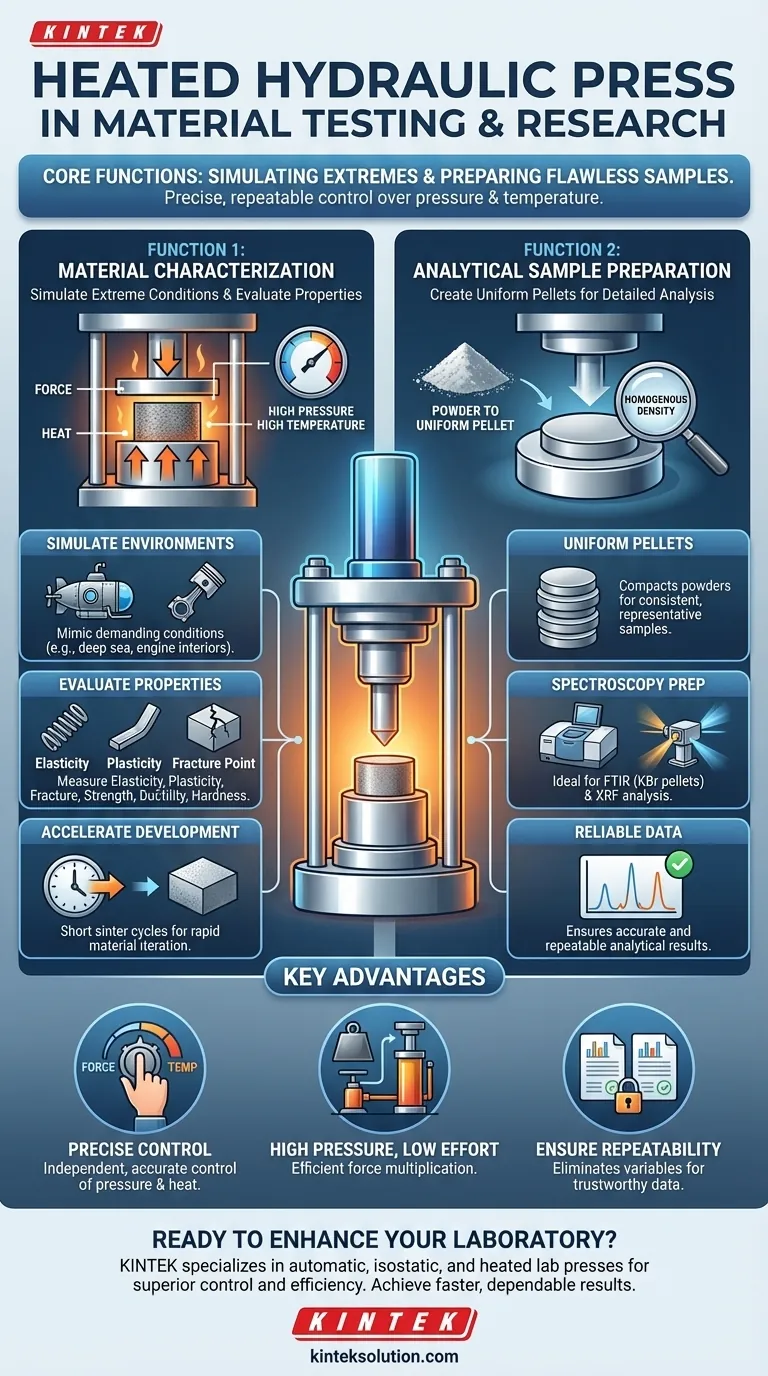

Summary Table:
| Function | Key Applications | Benefits |
|---|---|---|
| Material Characterization | Simulate extreme conditions, measure mechanical properties | Accelerates development, ensures repeatability |
| Analytical Sample Preparation | Create uniform pellets for FTIR, XRF spectroscopy | Improves accuracy, provides reliable data |
