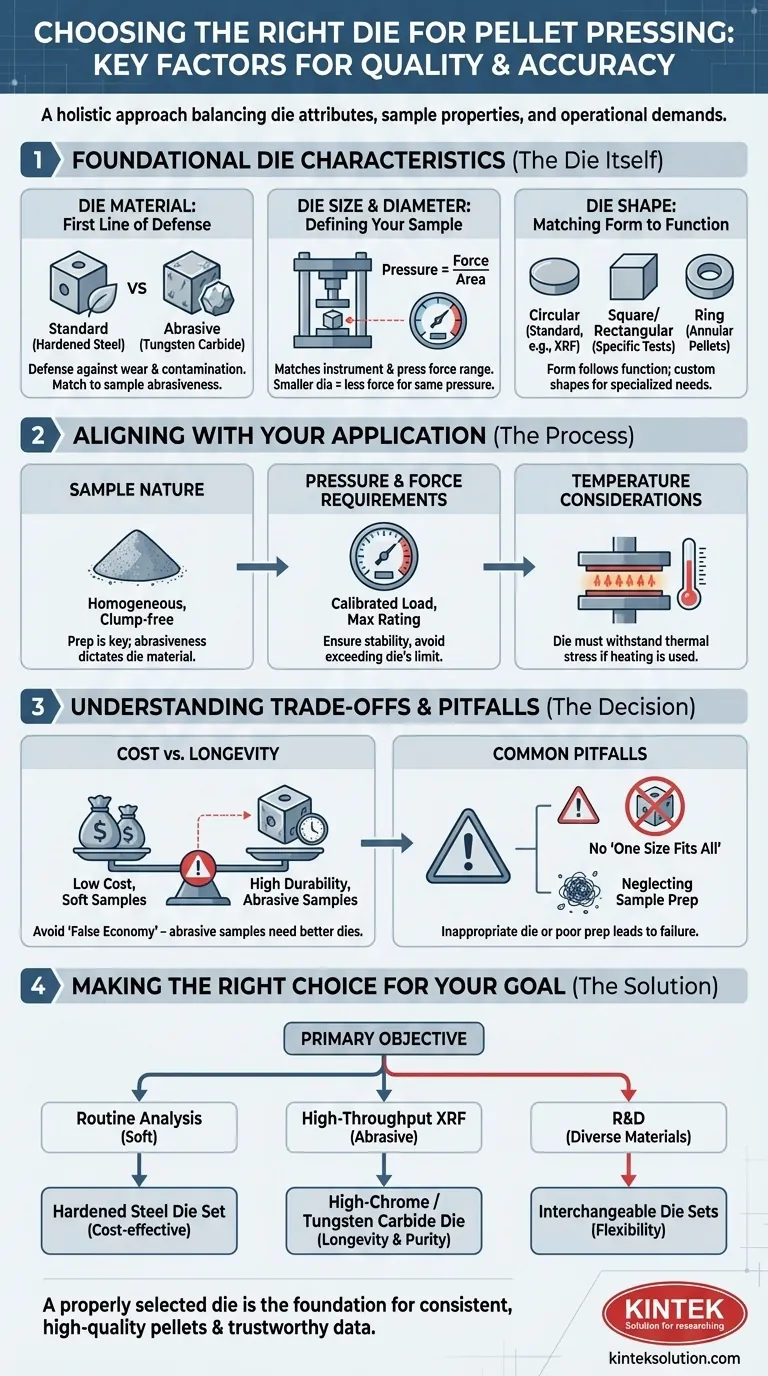

Choosing the right die for pellet pressing is a critical decision that extends beyond simple dimensions. You must evaluate the die's material composition, size, and shape against the specific characteristics of your sample and the demands of your press. This ensures not only the integrity of your pellet but also the longevity of your equipment and the reliability of your analytical results.
The die is not just a mold; it is a critical component that dictates pellet quality and analytical accuracy. Selecting the correct die requires a holistic view that balances sample characteristics, required pressure, and the intended application to produce consistent, reliable pellets.
Foundational Die Characteristics
Before considering your specific application, you must understand the three fundamental attributes of the die itself. These characteristics form the basis of your selection.
Die Material: The First Line of Defense
The material of the die set is your primary defense against wear, deformation, and sample contamination. Standard dies are typically made of hardened steel, which is suitable for many applications.
However, if you are working with abrasive materials like minerals, ceramics, or cement, a standard die will wear down quickly, altering its internal dimensions and contaminating your sample with iron. For these cases, investing in a die made from high-chrome steel or tungsten carbide is essential for durability and analytical purity.
Die Size and Diameter: Defining Your Sample
The diameter of the die determines the final size of your pellet. This is often dictated by the requirements of your analytical instrument, such as the sample holder in an XRF spectrometer.
It's also crucial to understand the relationship between die diameter and pressure. Since Pressure = Force / Area, a smaller diameter die requires less absolute force to achieve the same internal pressure (in PSI or Pascals) as a larger one. Your die must be compatible with the force range of your press.
Die Shape: Matching Form to Function
While circular dies are the most common standard for applications like XRF analysis, other shapes exist for specific needs.
Square or rectangular dies may be used for certain material tests, while ring dies are sometimes required to create annular pellets. Custom shapes can be fabricated but are typically reserved for highly specialized research or manufacturing processes.
Aligning the Die with Your Application
A die does not operate in isolation. Its performance is directly tied to the sample being pressed and the parameters of the pressing operation.
The Nature of Your Sample Material
Even the best die cannot fix a poorly prepared sample. The sample should be a homogeneous, clump-free powder with an appropriate particle size distribution.
The die material choice, as discussed, must be able to withstand the abrasiveness of the sample powder. Failure to match the die material to the sample is a primary cause of premature equipment failure.
Pressure and Force Requirements
Every die set is rated for a maximum load. Exceeding this limit can cause catastrophic failure, damaging the die and potentially the press itself.
Your goal is to apply enough force to create a dense, mechanically stable pellet that won't crumble. Using a press with a calibrated force gauge is essential for applying a precise, repeatable load, ensuring consistency from one pellet to the next.
Temperature Considerations
Some applications require pressing on heated platens to improve particle binding. If this is part of your process, you must ensure the entire die set is rated to withstand the required thermal stress without warping or losing its hardness.
Understanding the Trade-offs and Pitfalls
Making an informed decision involves recognizing the compromises and common mistakes associated with die selection.
Cost vs. Longevity
A basic hardened steel die is significantly less expensive than a tungsten carbide one. For soft, non-abrasive organic samples, the cheaper option is perfectly adequate.
However, using that same steel die for abrasive geological samples is a false economy. It will quickly wear, leading to poor results and the need for frequent replacement, ultimately costing more in both time and money.
The Myth of "One Size Fits All"
There is no universal die. Using a die that is inappropriate for your sample material or required pressure is a common failure point. This mistake leads to cracked or fragile pellets, inaccurate analytical data, and a high risk of damaging expensive equipment.
Neglecting Sample Preparation
The most common pitfall is focusing entirely on the press and die while ignoring the sample itself. An improperly ground, mixed, or dried sample will produce a flawed pellet, regardless of how precise your die or press may be. The quality of your input directly governs the quality of your output.
Making the Right Choice for Your Goal
To select the correct die, align your choice with your primary objective.
- If your primary focus is routine analysis of soft, non-abrasive materials: A standard hardened steel die set is likely sufficient and cost-effective.
- If your primary focus is high-throughput XRF with abrasive samples (e.g., minerals, cement): Invest in a high-chrome steel or tungsten carbide die to ensure longevity and prevent sample contamination.
- If your primary focus is research and development with diverse materials: Consider a press system with interchangeable die sets to provide flexibility for various sample sizes and types.
A properly selected die is the foundation for producing consistent, high-quality pellets that yield trustworthy analytical data.
Summary Table:
| Factor | Key Considerations |
|---|---|
| Die Material | Hardened steel for soft samples; high-chrome steel or tungsten carbide for abrasive materials to prevent wear and contamination. |
| Die Size and Diameter | Determined by analytical instrument requirements; affects pressure (Pressure = Force / Area) and compatibility with press force range. |
| Die Shape | Circular for standard use (e.g., XRF); square, rectangular, or ring dies for specific tests; custom shapes for specialized applications. |
| Sample Material | Must be homogeneous and clump-free; abrasiveness dictates die material choice to avoid equipment failure. |
| Pressure and Force | Use calibrated force gauge for precise loads; ensure die set is rated for maximum load to prevent damage and ensure pellet stability. |
| Temperature | Heated platens may be needed; die must withstand thermal stress without warping for applications requiring heat. |
| Cost vs. Longevity | Balance initial cost with durability; abrasive samples require higher-cost dies to avoid frequent replacements and poor results. |
