At their core, Research CIP Systems with threaded vessels are defined by their ability to achieve extremely high pressures in a customizable, lab-scale format. These systems are engineered to support pressures up to 150,000 psi in vessels with diameters from 2 to 60 inches. They are typically configured with a range of pump and control system options, and can include warm pressing capabilities up to 100°C.
While many features like pumps and controls are customizable across different CIP (Cold Isostatic Press) systems, the choice of a threaded vessel is a deliberate engineering decision. It prioritizes achieving exceptionally high isostatic pressures, often in a more compact and cost-effective design for research applications.
Deconstructing the Core Features
A Research CIP system is an integrated package, but its performance is dictated by the design of its core components. The threaded vessel configuration has specific implications for each.
The High-Pressure Vessel
The vessel is the heart of the system. In this design, a large threaded plug or cap is used to seal the pressure chamber.
This design enables the system to safely contain its standout feature: a pressure rating of up to 150,000 psi (over 10,000 bar). This is essential for densifying advanced ceramics, powdered metals, and other exotic materials.
The available size range of 2 to 60 inches in diameter provides flexibility for processing everything from small research samples to larger prototype components.
Pumping and Intensification
The system's pressure is generated by a pumping unit. The reference to "pump options" means the system can be tailored to your needs.
This allows for a configuration that matches your required pressurization fluid, ramp rate (how quickly pressure is applied), and final target pressure.
Control and Automation
Modern research demands precision and repeatability. The availability of "control systems" addresses this need directly.
These systems allow operators to program, execute, and record the entire pressure cycle, including the ramp-up, hold time, and depressurization. This ensures process consistency экспериментальный.
Optional Thermal Capabilities
The mention of "optional warm pressing up to 100°C" is a significant feature.
Applying moderate heat during isostatic pressing can improve the formability and final density of certain polymer or composite materials, expanding the system's research applications.
The Significance of the Threaded Closure Design
The choice of a threaded closure over other designs, like a pin-type or yoke frame, is not arbitrary. It is a design choice癌症中心 with specific advantages for the research environment.
The Primary Advantage: Ultra-High Pressure
The robust, direct-sealing nature of a heavy-duty thread is an effective method for containing extreme forces.
This mechanical simplicity is why threaded designs are often used to achieve the highest possible pressures in isostatic press systems.
Simplicity and Footprint
For smaller-diameter, lab-scale vessels, a threaded closure mecanismo can be more mechanically simple and compact than a complex yoke frame.
This often translates to a smaller overall system footprint and potentially lower initial capital cost, both of which are critical factors in a research or university lab setting.
Understanding the Trade-offs
No engineering design is without its compromises. An objective evaluation requires acknowledging the limitations of a threaded vessel compared to alternatives.
Operational Speed vs. Pressure Capability
Engaging and disengaging a large, heavy threaded plug is an inherently manual and slower process than operating a pin-type or automated yoke-frame closure.
This makes threaded systems less suitable for applications requiring high throughput or frequent, rapid cycling of samples. Pin-type closures, while often rated for lower pressures (e.g., 60,000 psi), are typically faster to operate.
Scalability and Ergonomics
As vessel diameter increases, the size and weight of the threaded plug grow exponentially.
For very large vessels, a threaded closure can become impractical and ergonomically challenging to handle. Pin and yoke-frame designs scale more efficiently for larger, production-oriented systems.
Making the Right Choice for Your Research
Selecting the right CIP system requires aligning the vessel's capabilities with your specific research objectives.
- If your primary focus is exploring material behavior at extreme pressures: The threaded vessel's 150,000 psi capability is its defining advantage and the clear choice for this goal.
- If your primary focus is rapid sample throughput and frequent cycling: Be aware that the manual nature of a threaded closure may be slower than a pin-type or yoke-frame system.
- If your primary focus is warm pressing of standard materials: Both threaded and other system types offer this capability, so the decision should revert to your pressure and operational speed requirements.
Ultimately, a threaded vessel CIP system is a specialized tool engineered for the pursuit of ultra-high pressure material densification.
Summary Table:
| Feature | Description |
|---|---|
| Pressure Rating | Up to 150,000 psi for extreme densification |
| Vessel Diameter | Range from 2 to 60 inches for flexible sample sizes |
| Pump Options | Customizable for fluid, ramp rate, and target pressure |
| Control Systems | Programmable for precise, repeatable pressure cycles |
| Thermal Capabilities | Optional warm pressing up to 100°C for enhanced formability |
| Closure Design | Threaded for high pressure, compactness, and cost-effectiveness |
| Trade-offs | Slower operation vs. pin-type, less scalable for large diameters |
Ready to enhance your laboratory's capabilities with a tailored CIP system? KINTEK specializes in lab press machines, including automatic lab presses, isostatic presses, and heated lab presses designed for research environments. Our systems deliver ultra-high pressure precision, customizable options, and reliable performance to advance your material science projects. Contact us today to discuss how we can meet your specific needs and drive your research forward!

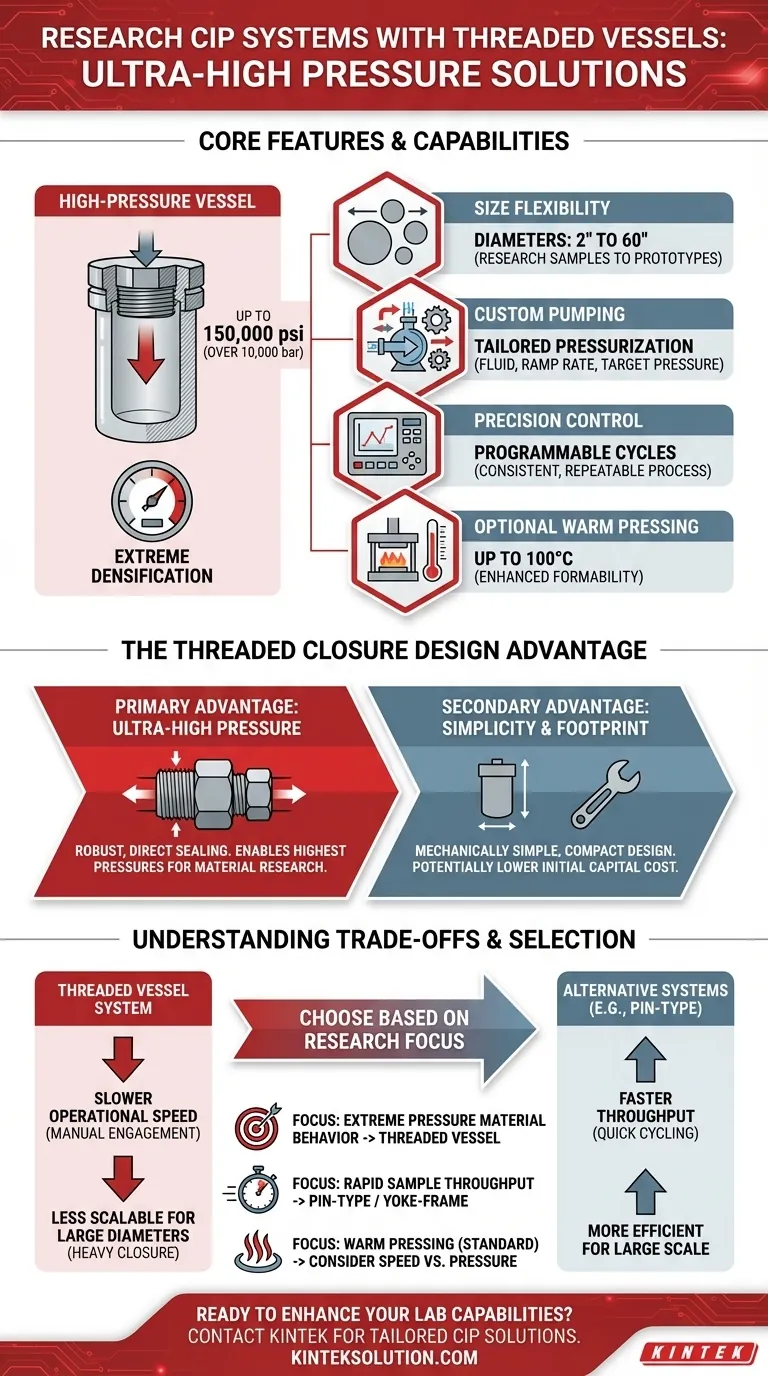

Visual Guide
