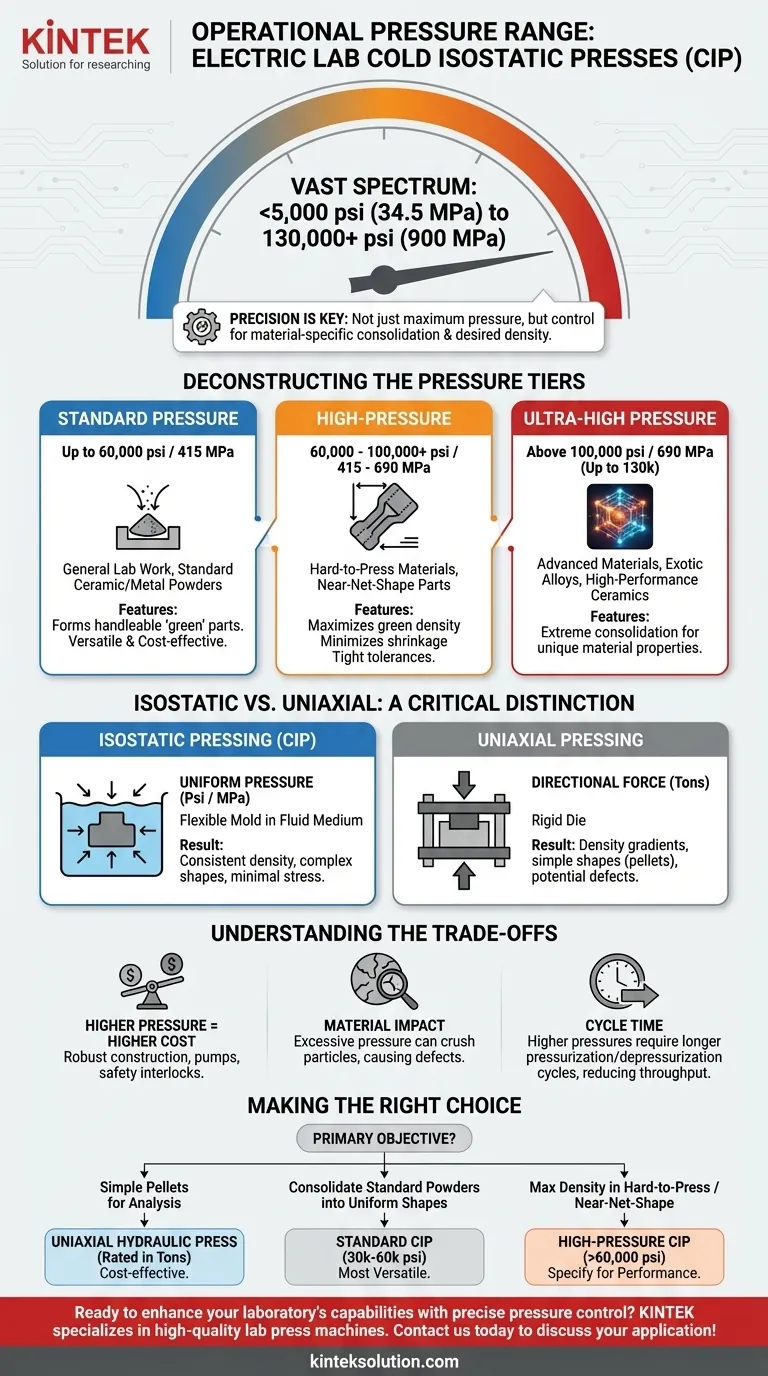

In short, electric lab cold isostatic presses (CIP) operate across a vast pressure spectrum. This typically ranges from less than 5,000 psi (34.5 MPa) to over 100,000 psi (690 MPa). Some specialized systems designed for advanced materials research can achieve even higher pressures, reaching up to 130,000 psi (900 MPa).
The wide operational range of lab CIP systems isn't about achieving the maximum possible pressure. It's about having the precise control needed to match the pressure to a specific material's consolidation properties and the desired final density of the part.
Deconstructing the Pressure Range
The pressure you need is dictated entirely by your material and your final goal. The range can be broken down into three functional tiers.
Standard Pressure Range (Up to 60,000 psi / 415 MPa)
This is the most common range for general laboratory work. It is highly effective for consolidating most standard ceramic and metal powders.
Pressures in this tier are used to significantly reduce the porosity of a powder mass, forming a "green" part that is strong enough to be handled and subsequently sintered.
High-Pressure Range (60,000 - 100,000+ psi / 415 - 690 MPa)
This range is required for materials that are more difficult to press or when the goal is to achieve maximum possible green density before sintering.
Using these higher pressures minimizes shrinkage during the final heating stage, which is critical for producing components with tight dimensional tolerances, often called near-net-shape parts. Many industrial-grade systems operate up to 6,000 bar (600 MPa), falling squarely in this category.
Ultra-High Pressure Capabilities (Above 100,000 psi / 690 MPa)
Pressures exceeding 100,000 psi, and reaching up to 130,000 psi (900 MPa), are reserved for specialized research applications.
This tier is used for developing and processing advanced materials, exotic alloys, and high-performance ceramics where extreme consolidation is necessary to achieve unique material properties.
Isostatic vs. Uniaxial Pressing: A Critical Distinction
It is crucial to differentiate between isostatic presses and the more common uniaxial hydraulic lab presses, as their pressure and force metrics are not interchangeable.
Isostatic Pressing: Uniform Pressure
A Cold Isostatic Press (CIP) places the powdered material in a flexible mold, which is then submerged in a fluid medium like water or oil.
The press pressurizes this fluid, applying equal pressure from all directions. This uniform compression results in a part with highly consistent density and minimal internal stress, which is essential for complex shapes.
Uniaxial Pressing: Directional Force
A standard hydraulic lab press applies force from one or two directions (top and bottom) using a rigid die. These presses are typically rated in tons of force (e.g., 2 to 40 tons).
This method is excellent for producing simple shapes like pellets for spectroscopy or quality control samples. However, it can create density gradients within the part, where the areas closest to the plunger are denser than the center.
Understanding the Trade-offs
Choosing a system based on its pressure capability involves significant practical and financial considerations.
The Cost of Higher Pressure
There is a direct correlation between maximum pressure and cost. High-pressure systems require more robust vessel construction, specialized pumps, and more complex safety interlocks, making them significantly more expensive to purchase and maintain.
The Impact on Materials
Higher pressure is not always better. For some materials, excessive pressure can lead to particle crushing rather than simple rearrangement. This can introduce defects and negatively impact the properties of the final sintered component.
Cycle Time and Throughput
Achieving very high pressures requires longer pressurization and depressurization cycles. This can reduce the number of samples you can process per day, impacting overall lab throughput.
Making the Right Choice for Your Application
To select the appropriate equipment, you must first define your primary objective.
- If your primary focus is creating simple pellets for analysis (e.g., spectroscopy): A standard uniaxial hydraulic press (rated in tons) is often more suitable and cost-effective than a CIP.
- If your primary focus is consolidating standard powders into uniform solid shapes: A standard CIP in the 30,000 to 60,000 psi (200 to 415 MPa) range is the most versatile and common choice.
- If your primary focus is achieving maximum density in hard-to-press materials or producing near-net-shape parts: You will need to specify a high-pressure CIP system, likely operating above 60,000 psi (415 MPa).
Ultimately, choosing the right press comes down to a clear understanding of your material's properties and the final component's performance requirements.
Summary Table:
| Pressure Range | Typical Applications | Key Features |
|---|---|---|
| Up to 60,000 psi (415 MPa) | Standard ceramic and metal powders | Versatile, cost-effective for general lab work |
| 60,000 - 100,000+ psi (415 - 690 MPa) | Hard-to-press materials, near-net-shape parts | Minimizes shrinkage, tight tolerances |
| Above 100,000 psi (690 MPa) | Advanced materials, exotic alloys | Extreme consolidation for unique properties |
