In short, Cold Isostatic Pressing (CIP) is a versatile process capable of consolidating a wide range of materials, primarily those in powder form. The most common categories include advanced ceramics, powdered metals, polymers (plastics), graphite, and various composites. The key requirement is that the material can be prepared as a powder to be compacted.
The crucial insight is not which materials can be used, but why. CIP is fundamentally a powder consolidation technique. Its value lies in its ability to take almost any powdered material and uniformly compact it into a solid, pre-sintered form known as a "green compact."
The Fundamental Principle: Why These Materials Work
Cold Isostatic Pressing is not about shaping a solid block of material. It is a process designed specifically to compact loose powders into a cohesive, uniformly dense object.
The Role of Powder Consolidation
CIP starts with a fine powder placed inside a flexible, sealed mold (often an elastomeric bag). This mold is then submerged in a fluid, and immense isostatic pressure—equal pressure from all directions—is applied. This forces the powder particles together, eliminating voids and forming a solid part.
Achieving Uniform Density
Because the pressure is applied uniformly from every angle, the resulting "green compact" has an incredibly consistent density throughout. This prevents the warping and cracking that can occur with other pressing methods and ensures predictable shrinkage during the final sintering stage.
Preparing for Sintering and HIP
The part that comes out of a CIP press is not finished. This green compact is fragile, similar in consistency to a piece of chalk. It must undergo a secondary high-temperature process, such as sintering or Hot Isostatic Pressing (HIP), to fuse the particles together and achieve its final strength and properties.
A Breakdown of Key Material Categories
While the principle applies to any powder, CIP has become essential for processing several key material families.
Advanced Ceramics and Refractory Materials
This is a primary application for CIP. It is ideal for consolidating high-performance ceramic powders that are difficult to process otherwise.
Common examples include:
- Silicon Nitride & Silicon Carbide
- Boron Nitride & Boron Carbide
- Titanium Boride
- Zirconia & Alumina
- Spinel
Metals and Powder Metallurgy
CIP is a cornerstone of powder metallurgy, used to create complex metal parts with superior material properties. It is frequently used for sputtering targets, where uniform density is critical for performance.
Key metal applications include:
- Refractory Metals: Tungsten, Molybdenum, Tantalum
- Alloys: Aluminum, Magnesium, and Copper alloys
- Industrial Components: Bearings, oil pump gears, and cutting tools made from carbides
Polymers and Carbon-Based Materials
While less common than for ceramics or metals, CIP can be used to form complex shapes from plastic powders. It is also highly effective for carbon-based materials.
Examples include:
- Various polymers (plastics)
- Graphite and carbon components
- Diamond and diamond-like materials
Understanding the Trade-offs and Limitations
CIP is a powerful tool, but it is not a universal solution. Understanding its limitations is crucial for making an informed decision.
It Only Works on Powders
CIP cannot be used to shape or modify existing solid billets or parts. The starting material must be in powder form to be placed in the flexible mold for compaction.
The "Green" State is Fragile
A part produced by CIP is only a precursor. It has not yet achieved its final mechanical properties and is very brittle. It always requires a subsequent thermal process like sintering to become a functional component.
Tooling and Geometry Constraints
The process relies on a flexible, elastic mold. While this allows for complex shapes, the final geometry is dependent on the design and behavior of this mold under pressure. Achieving extremely tight tolerances directly from CIP can be challenging without secondary machining.
Making the Right Choice for Your Project
Your material choice depends entirely on your end goal. CIP is the intermediate step that enables the final product.
- If your primary focus is high-performance, complex ceramic components: CIP is the industry standard for creating uniform green bodies from powders like silicon carbide or zirconia before they are sintered.
- If your primary focus is advanced metal parts or sputtering targets: CIP is essential for achieving the uniform density required for powder metallurgy applications, especially for refractory metals and specialized alloys.
- If your primary focus is creating large or intricate shapes from powder: CIP offers a distinct advantage over uniaxial pressing by ensuring consistent properties regardless of the part's complexity.
Ultimately, Cold Isostatic Pressing empowers engineers to turn advanced powdered materials into solid, reliable components.
Summary Table:
| Material Category | Common Examples | Key Applications |
|---|---|---|
| Advanced Ceramics | Silicon Nitride, Alumina, Zirconia | High-performance components, refractories |
| Powdered Metals | Tungsten, Aluminum alloys, Carbides | Sputtering targets, bearings, tools |
| Polymers & Carbon | Graphite, Plastics, Diamond materials | Complex shapes, carbon components |
| Composites | Various powder blends | Custom parts with tailored properties |
Ready to enhance your lab's capabilities with precise powder compaction? KINTEK specializes in lab press machines, including automatic lab presses, isostatic presses, and heated lab presses, designed to serve your laboratory needs for ceramics, metals, and composites. Contact us today to discuss how our solutions can improve your material processing efficiency and achieve uniform results—get in touch now!

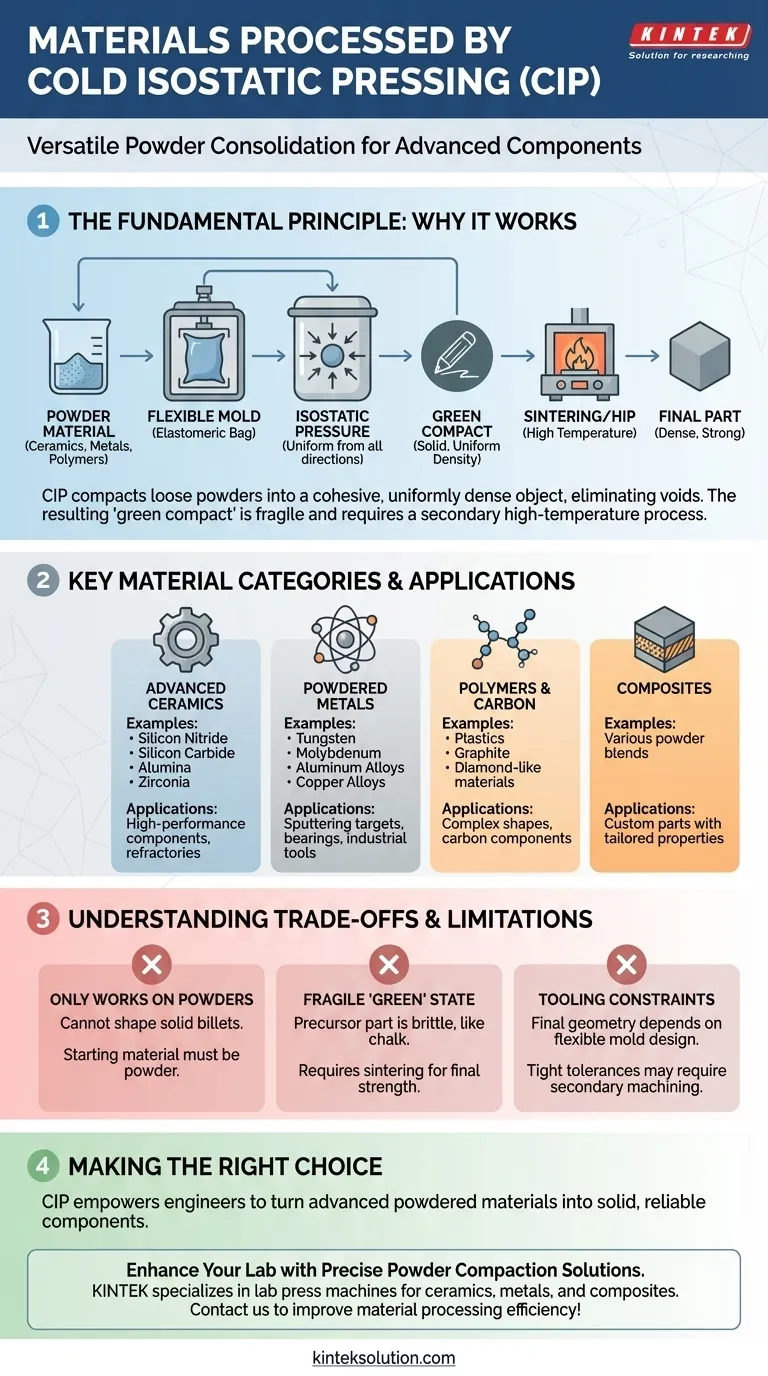

Visual Guide
