In short, Cold Isostatic Pressing (CIP) is highly effective for consolidating a wide range of advanced ceramic powders. The most common examples include high-performance materials like silicon nitride, silicon carbide, boron nitride, boron carbide, titanium boride, and spinel. This process is not limited to these, but is broadly applicable to virtually any ceramic powder.
The key isn't a restrictive list of compatible ceramics, but understanding that CIP is the go-to method for any ceramic powder when the goal is to create a large or complex component with highly uniform density, minimal internal defects, and predictable shrinkage during final sintering.
Why CIP is a Foundational Process for Advanced Ceramics
To understand why CIP is so versatile, you must look at its fundamental principle. It's less about the specific material and more about the physical challenge of compacting a powder evenly.

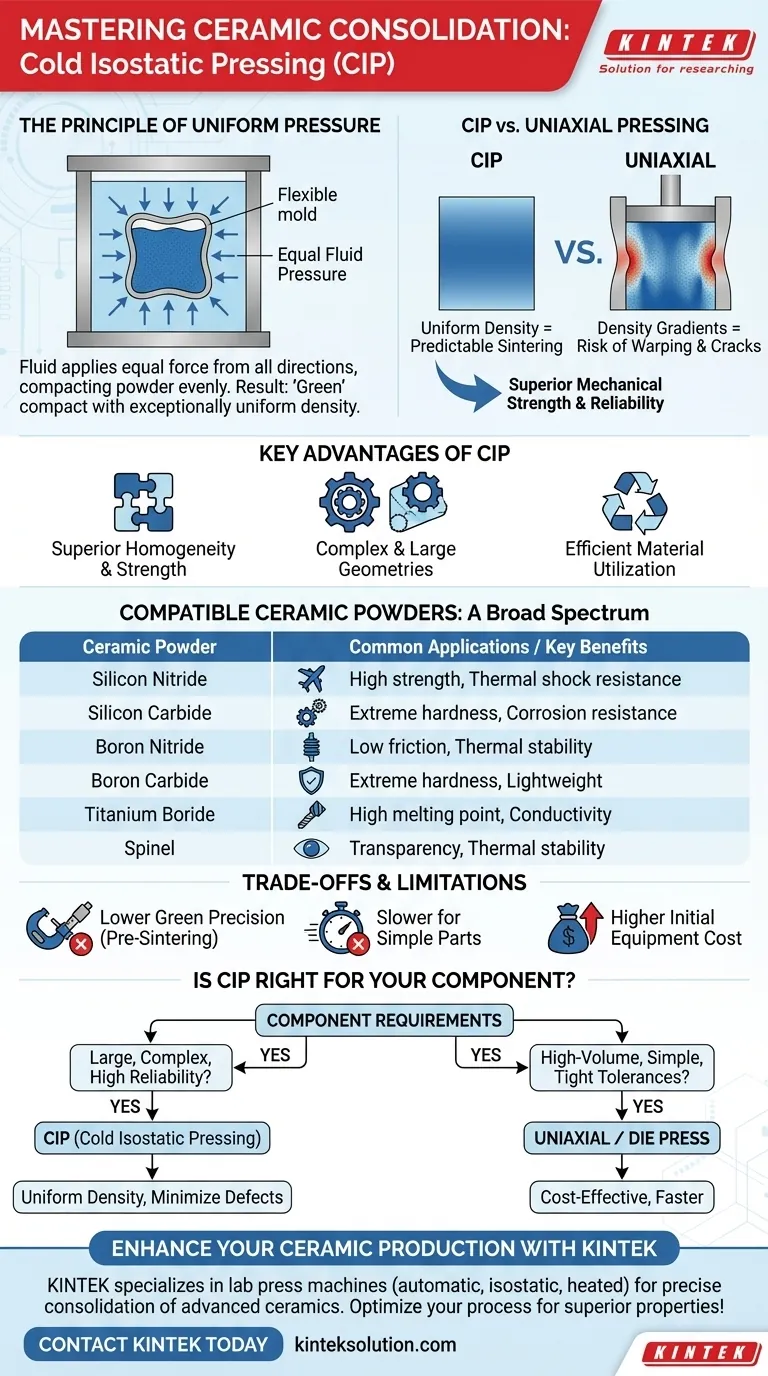

The Principle of Uniform Pressure
Cold Isostatic Pressing works by placing the ceramic powder into a flexible, sealed mold (often rubber or urethane). This mold is then submerged in a fluid, which is pressurized to exert equal force from all directions.
This is fundamentally different from uniaxial pressing, where pressure is applied from only one or two directions, like a piston in a cylinder. This top-down pressure can create significant density variations within a part.
The Goal: Uniform Green Density
The part that comes out of the CIP process is called a "green" compact. It has the consistency of chalk but is strong enough to be handled and machined.
The single most important outcome of CIP is its ability to produce a green part with exceptionally uniform density. All the powder particles are pushed together with the same force, regardless of their position in the component.
Impact on Sintering and Final Properties
This uniform green density is critical for the next stage: sintering, where the part is fired at high temperatures to fuse the particles into a solid, dense object.
Because the green part is so homogeneous, it shrinks predictably and evenly during sintering. This dramatically reduces the risk of warping, cracking, or internal voids, leading to a final ceramic component with superior mechanical strength and reliability.
Key Advantages of Using CIP for Ceramics
Choosing CIP over other methods provides several distinct advantages, especially for demanding applications in the aerospace, medical, and automotive industries.
Superior Homogeneity and Strength
The elimination of density gradients is CIP's core benefit. These gradients, common in uniaxially pressed parts, create internal stress and act as starting points for fractures. CIP parts are uniformly strong throughout.
Complex and Large Geometries
Because the powder is contained in a flexible mold, CIP can produce shapes that are impossible with rigid metal dies. This includes parts with undercuts, intricate internal cavities, or large aspect ratios (like long tubes or rods). It is a preferred method for parts too large for conventional presses.
Efficient Material Utilization
CIP is a near-net-shape process, meaning the green part is very close to the final dimensions. This allows for minimal machining and reduces the waste of expensive advanced ceramic powders. The green strength of the part also makes it easy to handle and machine before the energy-intensive sintering stage.
Understanding the Trade-offs and Limitations
While powerful, CIP is not the solution for every scenario. Understanding its limitations is crucial for making an informed decision.
Lower Dimensional Precision (Pre-Sintering)
The same flexible mold that allows for complex shapes does not provide the sharp dimensional control of a hard die. While shrinkage is predictable, the initial green part's tolerances are not as tight. Post-sintering machining is often required for high-precision surfaces.
Slower Cycle Times for Simple Parts
For small, simple shapes like tiles or discs, uniaxial pressing is significantly faster and more automated. CIP, particularly the "wet-bag" method used for large or one-off parts, involves more manual handling and can be slower.
Tooling and Equipment Costs
The initial capital investment for a CIP pressure vessel and its associated systems can be substantial. While mold costs are low, the overall equipment cost must be justified by the need for the unique benefits of the process.
How to Determine if CIP is Right for Your Ceramic Component
Use your end goal to guide your decision. The choice between CIP and other methods is a strategic one based on the component's requirements.
- If your primary focus is producing large or geometrically complex parts: CIP is often the only viable consolidation method to ensure uniform density and prevent cracking during sintering.
- If your primary focus is maximizing mechanical performance and reliability: CIP's ability to minimize internal voids and density gradients makes it ideal for high-integrity components in aerospace or medical applications.
- If your primary focus is high-volume production of simple shapes with tight tolerances: A traditional uniaxial or die press may be a more cost-effective and faster solution.
Choosing the right consolidation process is about aligning the method's unique strengths with your component's final requirements.
Summary Table:
| Ceramic Powder | Common Applications | Key Benefits of CIP |
|---|---|---|
| Silicon Nitride | Aerospace, automotive | High strength, thermal shock resistance |
| Silicon Carbide | Wear parts, electronics | Excellent hardness, corrosion resistance |
| Boron Nitride | High-temperature insulators | Low friction, thermal stability |
| Boron Carbide | Armor, nuclear reactors | Extreme hardness, lightweight |
| Titanium Boride | Cutting tools, electrodes | High melting point, electrical conductivity |
| Spinel | Optical components, refractories | Transparency, thermal stability |
