In short, isostatic pressing is compatible with a vast range of materials, including most metals, ceramics, composites, and even some polymers. It is particularly effective for any material that can be processed in powder form, making it a versatile solution for creating both simple and highly complex components with exceptionally uniform density.
The suitability of isostatic pressing is defined less by a specific material class and more by two factors: the material's availability in powder form and the manufacturing goal of producing a solid, uniformly dense component from that powder.
Why This Process is So Versatile

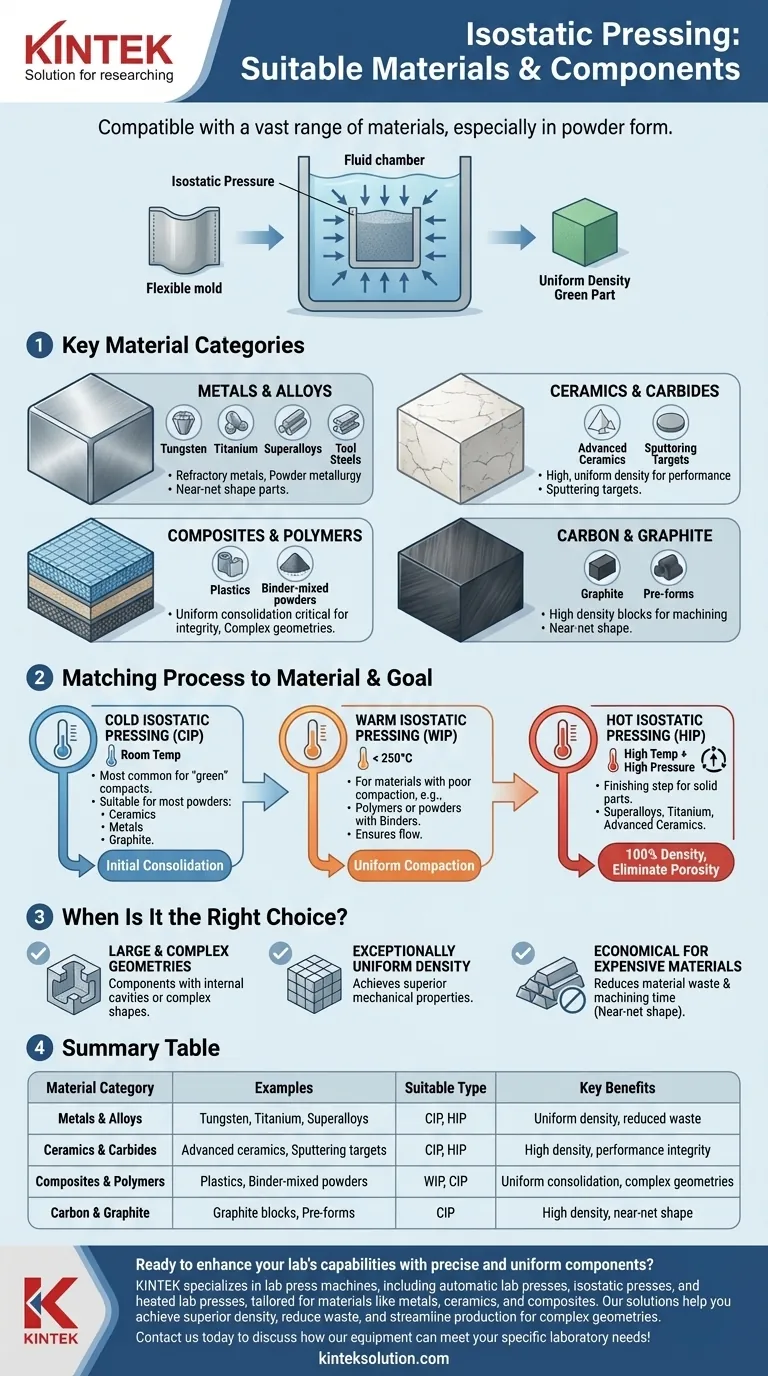

Isostatic pressing works by placing a material, typically a powder, into a flexible mold and submerging it in a fluid. This fluid is then pressurized, exerting equal force on the material from all directions. This fundamental principle is why it works for so many different materials.
The Core Principle: Compacting Powders
The process is designed to compact powders into a solid "green" part. This initial component has enough strength to be handled before a final densification step like sintering or hot isostatic pressing.
Because the pressure is applied uniformly (isostatically), it avoids the density gradients and internal stresses common in traditional uniaxial pressing, where pressure comes from only one or two directions.
Key Material Categories
This method is ideal for materials that are difficult or expensive to process using other means.
- Metals & Alloys: This includes refractory metals like tungsten and molybdenum, superalloys, titanium, tool steels, and stainless steels. It is a cornerstone of powder metallurgy for creating near-net shape parts.
- Ceramics & Carbides: Many advanced ceramics, carbides, and sputtering targets are formed using isostatic pressing to achieve the high, uniform density required for performance.
- Composites & Polymers: Both composites and certain plastics can be processed, especially when uniform consolidation is critical to the final component's integrity.
- Carbon & Graphite: These materials are commonly compacted using isostatic pressing to create blocks or pre-forms for subsequent machining.
Matching the Process to the Material
The term "isostatic pressing" covers a family of processes. The specific material often dictates which one is most appropriate.
Cold Isostatic Pressing (CIP)
CIP is performed at room temperature and is the most common method for creating a "green" compact. It is suitable for most powdered materials, including ceramics, powdered metals, graphite, and some plastics. The goal is initial consolidation before a final heating step.
Warm Isostatic Pressing (WIP)
WIP is used for materials that have poor compaction characteristics at room temperature. This often includes polymers or metal powders mixed with polymer binders that require a specific, elevated temperature (typically below 250°C) to flow and consolidate properly.
Hot Isostatic Pressing (HIP)
HIP applies both high pressure and high temperature simultaneously. It is not typically used on loose powders but rather to eliminate any remaining internal porosity in already-solid parts. It is a finishing step for critical components made from superalloys, titanium, and advanced ceramics to achieve 100% density and superior mechanical properties.
Understanding the Trade-offs
Isostatic pressing is a powerful tool, but it is not a universal solution. Understanding its ideal applications and limitations is key to using it effectively.
When Is It the Right Choice?
This process excels when producing components that are large, have complex geometries (like internal cavities), or require exceptionally uniform density.
It is also highly economical for expensive materials like titanium or superalloys. By creating a near-net shape part that is very close to the final dimensions, it drastically reduces material waste and costly machining time.
Common Limitations
The primary limitation is that the starting material must generally be in powder form. The flexible tooling can also be a consideration, as the molds have a finite lifespan and are less durable than the steel dies used in traditional pressing. For simple, high-volume parts where minor density variations are acceptable, other methods may be faster and more cost-effective.
Making the Right Choice for Your Application
Your choice of process depends directly on your material and end-goal.
- If your primary focus is creating a high-density "green" part for later sintering: Use Cold Isostatic Pressing (CIP) with powdered ceramics, standard metals, or graphite.
- If your primary focus is processing powders mixed with temperature-sensitive binders: Use Warm Isostatic Pressing (WIP) to ensure the binder flows correctly for uniform compaction.
- If your primary focus is achieving maximum density and eliminating all porosity in a critical component: Use Hot Isostatic Pressing (HIP) as a final step on a pre-formed or cast part made from a superalloy, titanium, or technical ceramic.
Ultimately, isostatic pressing empowers you to create high-integrity components from a wide array of advanced materials that are otherwise difficult to form.
Summary Table:
| Material Category | Examples | Suitable Isostatic Pressing Type | Key Benefits |
|---|---|---|---|
| Metals & Alloys | Tungsten, Titanium, Superalloys | CIP, HIP | Uniform density, reduced waste |
| Ceramics & Carbides | Advanced ceramics, Sputtering targets | CIP, HIP | High density, performance integrity |
| Composites & Polymers | Plastics, Binder-mixed powders | WIP, CIP | Uniform consolidation, complex geometries |
| Carbon & Graphite | Graphite blocks, Pre-forms | CIP | High density, near-net shape |
