What Types Of Materials Can Be Processed Using Cold Isostatic Pressing? Versatile Powder Consolidation For Complex Parts

Virtually any powdered material can be processed using cold isostatic pressing (CIP). This manufacturing method is exceptionally versatile, making it ideal for consolidating a wide range of materials that are often difficult to press using conventional techniques. The most common categories include advanced ceramics, high-performance metals and alloys, graphite, and various composites.

The critical insight is not simply which materials can be used, but why CIP is the necessary choice. This process excels at transforming expensive or difficult-to-compact powders into uniformly dense components, particularly those with complex geometries that are impossible to achieve with other pressing methods.

What types of materials can be processed using cold isostatic pressing? Versatile Powder Consolidation for Complex Parts

The Primary Material Categories for CIP

Cold isostatic pressing is defined by its ability to handle materials that demand consistent internal structure and high purity. It is a powder consolidation technique, meaning the starting material must be in powder form.

Advanced Ceramics

Advanced ceramics are a cornerstone application for CIP because the process minimizes density variations that can lead to cracks and failure during the final sintering stage.

Examples include:

Alumina (Al2O3): Used in components like spark plug shells and electrical insulators.
Silicon Nitride (Si3N4) & Silicon Carbide (SiC): Employed in high-wear and high-temperature structural components.
Specialty Ceramics: Boron nitride, boron carbide, titanium boride, and spinel are processed for demanding industrial applications.

High-Performance Metals and Alloys

For many high-value metals, CIP is a crucial intermediate step. It's used to create a dense, uniform "green" billet from powder before a final densification process like sintering or Hot Isostatic Pressing (HIP).

Common metals include:

Difficult-to-Compact Metals: Tungsten and beryllium powders are formed into various shapes.
High-Value Alloys: Superalloys, titanium, tool steels, and stainless steels are often processed to create near-net shape preforms, minimizing waste of these expensive materials.

Carbon-Based and Refractory Materials

Materials designed for extreme temperature environments benefit greatly from the uniform density CIP provides.

This category includes graphite and other refractory powders, which are compacted into blocks or shapes used in furnaces and other high-temperature industrial equipment.

Emerging Applications and Composites

The flexibility of CIP allows it to be adapted for new, cutting-edge material applications.

This includes forming sputtering targets used in semiconductor manufacturing and developing novel composites where uniform distribution of different powdered materials is critical.

Why Choose CIP? The Underlying Principle

The decision to use CIP is driven by the need for results that conventional pressing cannot deliver. The method applies pressure uniformly over the entire surface of the component, which is the source of its primary advantages.

Achieving Uniform Density

In traditional uniaxial pressing, pressure is applied from one or two directions. This creates density gradients, with the areas closest to the punch being denser than the center.

CIP submerges the powdered material (held in a flexible mold) in a liquid and pressurizes the entire chamber. This isostatic pressure acts equally on all surfaces, eliminating density gradients and creating a completely uniform structure. This consistency is critical for predictable performance and shrinkage during sintering.

Forming Complex Geometries

Because the powder is contained within a flexible mold rather than a rigid steel die, CIP can produce parts with complex shapes, undercuts, and intricate internal features that would be impossible to eject from a conventional press.

Handling Difficult and Expensive Powders

Many advanced material powders do not flow or compact easily. CIP overcomes this by applying high, uniform pressure. For expensive materials like titanium or superalloys, forming a part close to its final shape (a "near-net shape") dramatically reduces machining time and material waste.

Understanding the Trade-offs

While powerful, CIP is not a universal solution. Understanding its limitations is key to using it effectively.

The "Green" State Limitation

A part that has been cold isostatically pressed is known as a "green" compact. It is densified and has enough strength to be handled, but it has not achieved its final material properties.

A secondary thermal process, such as sintering or Hot Isostatic Pressing (HIP), is almost always required to bond the powder particles together and achieve full density and strength.

Tooling and Cycle Times

The flexible molds used in CIP are less durable than the hardened steel dies used in conventional pressing and may need frequent replacement.

Furthermore, the process of loading the chamber, pressurizing, depressurizing, and unloading is generally slower than the high-speed stroke of a mechanical press. This makes CIP less suitable for very high-volume production of simple parts.

Making the Right Choice for Your Goal

Selecting the right consolidation method depends entirely on your material, the complexity of your part, and your production goals.

If your primary focus is maximum density and uniformity in a complex ceramic part: CIP is the ideal pre-sintering step to prevent defects and ensure predictable shrinkage.
If your primary focus is consolidating expensive metal powders like titanium or superalloys: CIP is a critical process for creating a near-net shape billet, minimizing waste before final densification with HIP.
If your primary focus is high-volume production of simple shapes from an easy-to-press powder: Conventional uniaxial pressing will likely be a more cost-effective and faster solution.

Ultimately, cold isostatic pressing is a precision tool for creating high-value components from the most demanding materials.

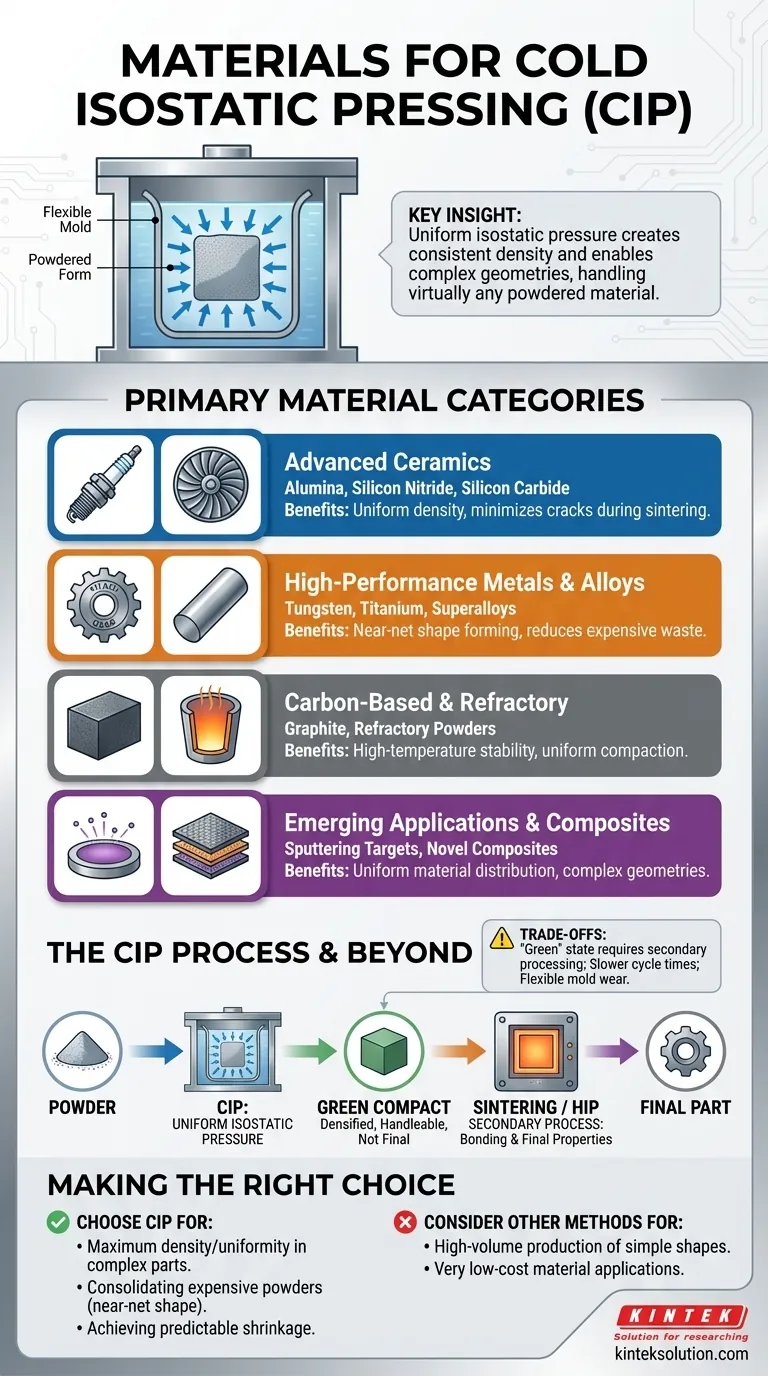

Summary Table:

Material Category	Common Examples	Key Benefits
Advanced Ceramics	Alumina, Silicon Nitride, Silicon Carbide	Uniform density, minimizes cracks during sintering
High-Performance Metals and Alloys	Tungsten, Titanium, Superalloys	Near-net shape forming, reduces waste
Carbon-Based and Refractory Materials	Graphite, Refractory Powders	High-temperature stability, uniform compaction
Composites and Emerging Applications	Sputtering Targets, Novel Composites	Uniform material distribution, ideal for complex geometries
