In Cold Isostatic Pressing (CIP), graphite is not used for its properties but is often the material being processed. However, in the broader context of isostatic pressing, including Hot Isostatic Pressing (HIP), graphite is a critical tooling material due to its unique combination of thermal stability, chemical inertness, and natural lubricity. Its primary role is to act as a heating element, mold, or spacer that can withstand extreme conditions without reacting with or sticking to the part being consolidated.
The core reason for using graphite in high-pressure, high-temperature manufacturing is its remarkable ability to maintain structural integrity and act as a release agent under conditions that would cause most other materials to fail, deform, or weld to the workpiece.
The Role of Material Properties in Isostatic Pressing
Isostatic pressing is a manufacturing process that uses fluid pressure to compact powders or consolidate solids into a uniform, dense mass. The choice of tooling and materials is critical to the success of the operation.
Superior Lubricity and Mold Release
In many high-pressure compaction processes, preventing the workpiece from sticking to the mold is essential. Graphite's layered atomic structure allows planes of atoms to slide past one another with very little force.
This property makes it an exceptional dry lubricant and release agent. It creates a non-stick barrier between the part being pressed and the tooling, ensuring easy removal and a smooth surface finish.
Chemical Inertness
Graphite is highly unreactive at a wide range of temperatures. During high-pressure consolidation, it will not chemically react with or contaminate most metals, ceramics, or composites.
This inertness is crucial for producing high-purity components where even trace amounts of contamination from the tooling could compromise the final part's performance.
Thermal Stability (Primarily in HIP)
It is vital to distinguish between Cold Isostatic Pressing (CIP) and Hot Isostatic Pressing (HIP), as this is where a common confusion arises.
CIP is performed at or near room temperature. In this process, graphite's thermal stability is irrelevant. Here, its use is primarily as a powder material to be compacted into a graphite part.
HIP, however, combines immense pressure with very high temperatures (often exceeding 2,000°C). Graphite shines in this environment, as it retains its strength at temperatures that would melt or soften most metals and ceramics. This makes it an ideal material for furnace elements, fixtures, and molds inside a HIP unit.
Understanding the Trade-offs
While graphite is highly effective, it is not without its limitations. Understanding these trade-offs is key to proper material selection.
Potential for Carbon Contamination
Although chemically inert, graphite can shed microscopic particles. In applications where any form of carbon is considered a contaminant (e.g., certain medical implants or ultra-pure oxide ceramics), graphite tooling may be unsuitable.
This particulate shedding can introduce carbon into the surface of the component, which may be undesirable depending on the material's final application.
Brittleness and Handling
Graphite is a brittle material. While it is strong under compression, it can be easily chipped or broken if mishandled or subjected to sharp impacts.
Tooling made from graphite requires careful design and handling procedures to prevent premature failure, which can be costly and cause significant production delays.
Making the Right Choice for Your Process
Your decision should be driven by the specific demands of your manufacturing environment, particularly temperature and purity requirements.
- If your primary focus is compacting graphite powder (CIP): You are using graphite as the raw material itself, leveraging the process to create a dense graphite component.
- If your primary focus is high-temperature consolidation (HIP): Graphite is an unparalleled tooling material for its ability to withstand extreme heat while remaining inert and non-stick.
- If your primary focus is achieving maximum purity: Carefully evaluate the risk of carbon contamination and consider alternatives like boron nitride for applications where this is unacceptable.
Ultimately, selecting the correct material is about matching its inherent properties to the specific challenges of the manufacturing process.
Summary Table:
| Property | Role in Isostatic Pressing | Key Benefit |
|---|---|---|
| Superior Lubricity | Acts as a release agent in molds | Prevents sticking, ensures easy part removal and smooth finish |
| Chemical Inertness | Resists reactions with materials | Maintains high purity, avoids contamination in final parts |
| Thermal Stability | Withstands high temperatures in HIP | Retains strength and integrity under extreme heat conditions |
Enhance your laboratory's efficiency with KINTEK's advanced lab press machines! Whether you're working with automatic lab presses, isostatic presses, or heated lab presses, our solutions deliver precise control, durability, and contamination-free results tailored to your needs. Don't let material challenges hold you back—contact us today to discuss how we can optimize your processes and boost productivity!

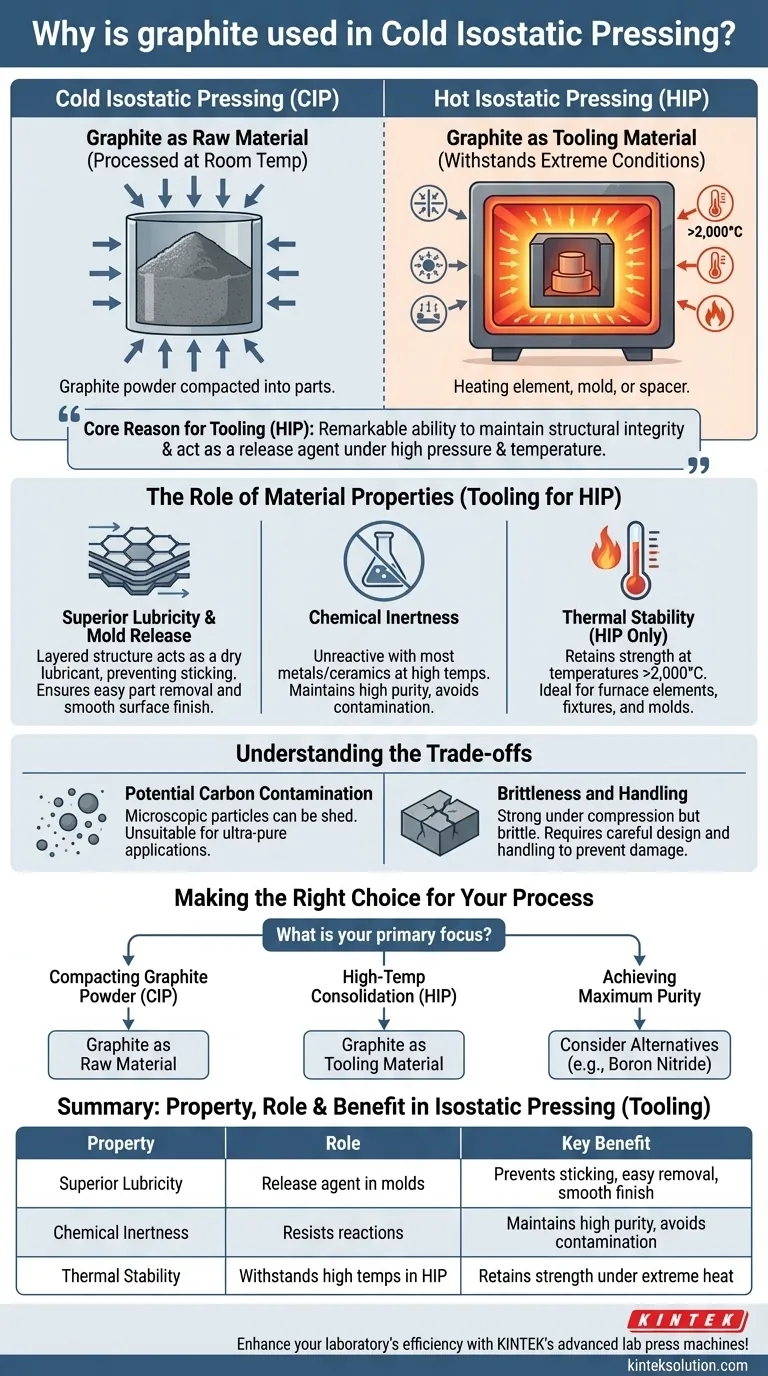

Visual Guide
