Why Is The Binder Important In The Pelletising Process? Ensure Accurate Xrf Analysis With Stable Pellets

In the pelletizing process for X-ray fluorescence (XRF) analysis, a binder is critical for transforming a fine powder sample into a solid, stable pellet. It acts as a structural agent, holding the sample particles together during and after pressing to create a homogenous disc suitable for analysis. Without it, the sample would fail to form a durable pellet.

The role of a binder extends beyond simply holding a pellet together. It is a critical component for ensuring both the physical integrity of your sample and the analytical accuracy of your results, preventing instrument contamination and standardizing the measurement process.

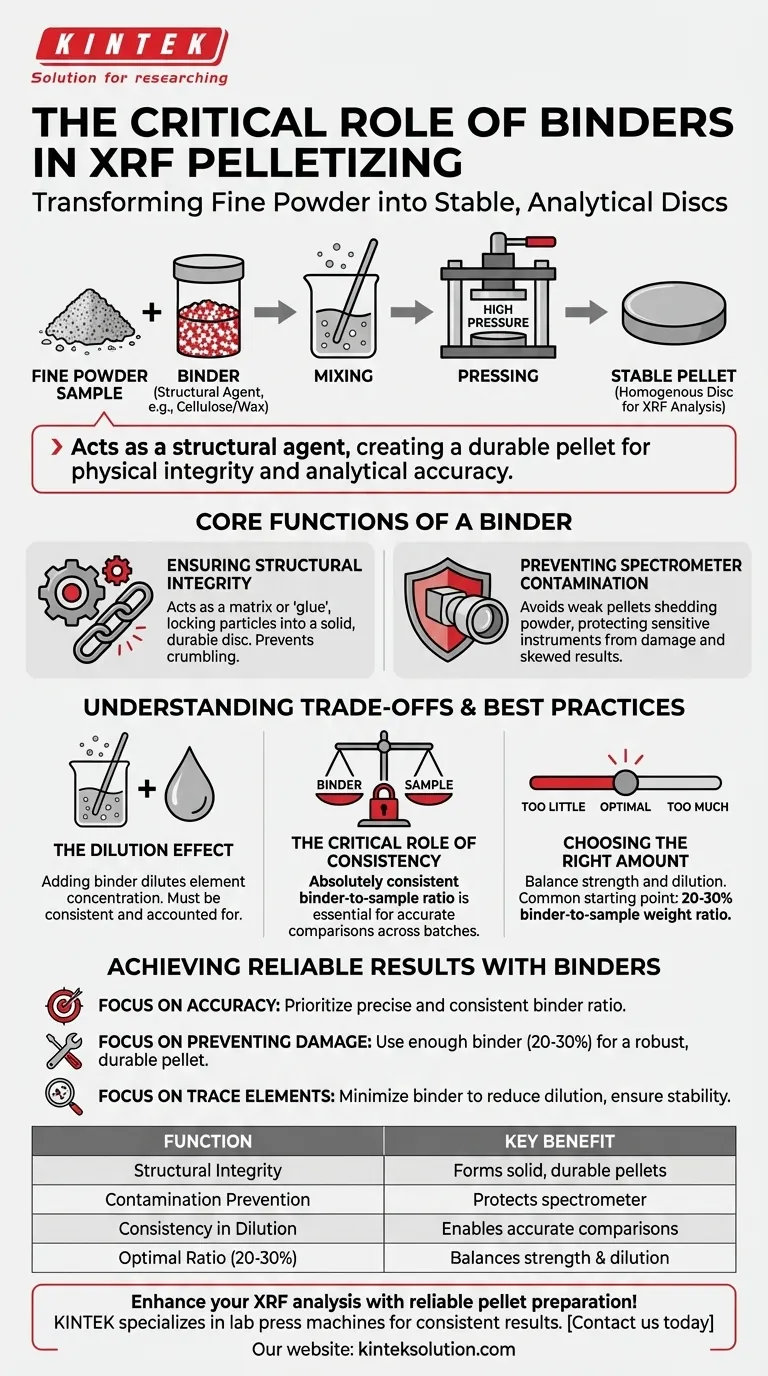

Why is the binder important in the pelletising process? Ensure Accurate XRF Analysis with Stable Pellets

The Core Functions of a Binder in XRF Analysis

A binder performs several essential functions that are fundamental to preparing a high-quality sample for XRF spectrometry. Understanding these roles is the first step toward repeatable, reliable analysis.

Ensuring Structural Integrity

The primary purpose of a binder is to act as a matrix or "glue" for the sample powder. Materials like a cellulose/wax mixture are commonly used for this.

When mixed with the sample and pressed under high pressure, the binder deforms and flows around the sample particles, locking them into a solid, durable disc. This prevents the pellet from crumbling or breaking.

Preventing Spectrometer Contamination

A weak or poorly formed pellet poses a significant risk to the analytical instrument. If a pellet breaks or sheds loose powder, these particles can contaminate the spectrometer's sample chamber.

This contamination can damage sensitive components and, more critically, skew the results of all subsequent analyses by introducing foreign elements into the measurement path.

Understanding the Trade-offs and Best Practices

Using a binder is not without its complexities. Achieving accurate results requires balancing the need for a strong pellet with the analytical implications of adding a foreign substance to your sample.

The Dilution Effect

A binder is, by definition, not part of the original sample. Adding it necessarily dilutes the concentration of the elements you intend to measure.

This means the intensity of the signal from your sample will be lower than if you were able to analyze the pure powder. This dilution must be accounted for and, more importantly, must be consistent.

The Critical Role of Consistency

To achieve accurate and comparable results across a batch of samples, the binder-to-sample ratio must be kept absolutely consistent for every pellet you press.

Any variation in this ratio will change the dilution factor, making it impossible to accurately compare the results from one sample to another. This is the single most common source of error related to binder use.

Choosing the Right Amount

The ideal amount of binder is a compromise. Too little binder results in a weak, fragile pellet that can break and damage the spectrometer.

Too much binder creates a very strong pellet but excessively dilutes the sample, potentially weakening the signal for trace elements below the instrument's detection limit. A common and effective starting point is a 20-30% binder-to-sample weight ratio.

Achieving Reliable Results with Binders

Applying these principles correctly will ensure your sample preparation method enhances, rather than compromises, your analytical goals. Use the following guidelines to make the right choice for your specific application.

If your primary focus is accuracy across multiple samples: Prioritize maintaining a precise and consistent binder-to-sample ratio for every pellet you create.
If your primary focus is preventing instrument damage: Ensure you use enough binder (e.g., in the 20-30% range) to create a robust, durable pellet that will not crumble during handling or analysis.
If your primary focus is detecting trace elements: Carefully experiment to find the minimum amount of binder needed to create a stable pellet, thereby minimizing the dilution effect.

Mastering the use of a binder is a foundational skill for producing trustworthy and repeatable XRF results.

Summary Table:

Function	Key Benefit
Structural Integrity	Forms solid, durable pellets that resist crumbling
Contamination Prevention	Protects spectrometer from damage and skewed results
Consistency in Dilution	Enables accurate comparisons across samples
Optimal Ratio (20-30%)	Balances pellet strength with minimal signal dilution
