The key to preventing common pellet defects lies in meticulously controlling three factors during sample preparation: pressure application, particle size, and the distribution of powder in the die. By mastering these variables, you can eliminate issues like cracking, porosity, and uneven surfaces that compromise the quality of X-Ray Fluorescence (XRF) analysis. Achieving a mechanically stable and homogeneous pellet is not just about aesthetics; it is fundamental to generating accurate and reproducible data.
The most common sources of error in XRF analysis do not originate from the spectrometer itself, but from inconsistent sample preparation. A visually perfect pellet is a homogeneous, solid-state representation of your bulk material, and mastering its creation is the first step toward reliable analytical results.

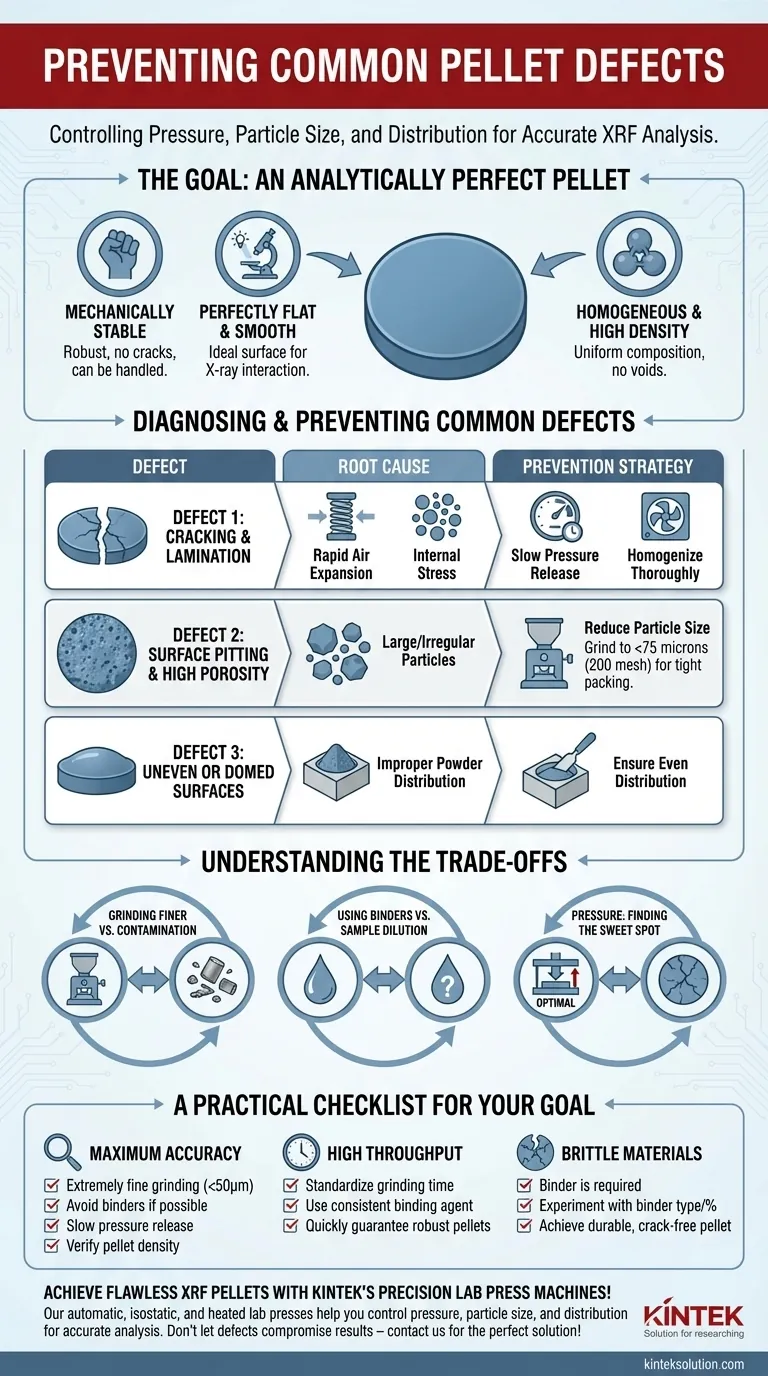

The Goal: An Analytically Perfect Pellet
Before diagnosing defects, we must define the ideal. A perfect pellet for XRF analysis is not just a solid disc; it possesses specific characteristics that are critical for accurate measurement.
Mechanically Stable and Robust
The pellet must be strong enough to be handled without breaking, cracking, or shedding material. Any loss of mass or surface integrity post-pressing invalidates the sample.
Perfectly Flat and Smooth Surface
The X-ray beam interacts with the sample surface. Any curvature or roughness alters the distance between the sample and the spectrometer's detector, which directly impacts the intensity of the measured fluorescence and skews results.
Homogeneous and High Density
The pellet must have a uniform density and chemical composition throughout. Voids (porosity) or clusters of certain particles create an unrepresentative sample, leading to inaccurate and non-repeatable measurements.
Diagnosing and Preventing Common Defects
Defects are symptoms of a flawed process. Understanding the root cause of each is essential for prevention.
Defect 1: Cracking and Lamination
Cracks or splits in the pellet are often caused by the rapid expansion of trapped air or internal stress when pressure is released.
The Cause: As powder is compressed, air is trapped in the voids between particles. When the press load is removed suddenly, this compressed air expands rapidly, creating fissures and cracks. Internal stress from poorly mixed, non-homogeneous materials can also cause the pellet to fail.
The Solution:
- Slow Pressure Release: After reaching the desired pressure, release the load very slowly. This allows trapped air to escape gradually through the micro-pores of the pellet, preventing explosive decompression.
- Homogenize Thoroughly: Ensure your sample is ground and mixed into a uniform powder. Different minerals or materials compress at different rates; a non-homogeneous mix creates internal stress points that lead to structural failure.
Defect 2: Surface Pitting and High Porosity
A porous or pitted pellet is essentially full of voids. These voids mean the sample being analyzed by the X-ray beam is less dense than assumed, leading to lower-than-expected elemental intensities.
The Cause: Large or irregularly shaped particles do not pack together efficiently. Even under high pressure, significant empty space (voids) remains between them, resulting in a low-density, porous structure.
The Solution:
- Reduce Particle Size: Grind your sample to a fine, consistent powder, ideally below 75 microns (200 mesh). Smaller particles pack more tightly, dramatically reducing the void space and increasing the final density of the pellet.
Defect 3: Uneven or Domed Surfaces
A pellet surface that is not perfectly flat will produce erroneous XRF data because the sample-to-detector geometry is compromised.
The Cause: This defect is almost always due to improper loading of the pressing die. If the powder is heaped in the center or unevenly spread, the material will have a shorter distance to travel at the high points and a longer distance at the low points, resulting in density variations and a non-flat surface.
The Solution:
- Ensure Even Distribution: After pouring the powder into the die, gently tap the side of the die body to level the powder. Before inserting the plunger, ensure the powder bed is as flat as possible. This guarantees a uniform compression path and a flat final pellet.
Understanding the Trade-offs
Creating the perfect pellet often involves balancing competing factors.
Grinding Finer vs. Introducing Contamination
While finer grinding is crucial for reducing porosity, excessive grinding can introduce contamination from the grinding vessel and media (e.g., tungsten carbide, zirconia). You must find a balance that produces a sufficiently fine powder without significantly altering the sample's elemental composition.
Using Binders vs. Sample Dilution
Binders (such as cellulose or a wax-based agent) act as a lubricant and plasticizer, dramatically improving pellet durability and preventing cracks, especially with brittle materials. However, a binder is a diluent. It reduces the relative concentration of your analyte, which can be problematic for trace element analysis. If you use a binder, you must use it consistently (e.g., precisely 20% by weight) for all standards and unknown samples to ensure results are comparable.
Pressure: Finding the Sweet Spot
More pressure is not always better. While sufficient pressure is needed to achieve density, excessive pressure can cause certain crystalline materials to fracture or trap air, leading to capping and lamination. The ideal pressure depends on the material and should be determined empirically to produce a stable pellet without causing structural failure.
A Practical Checklist for Your Goal
Apply these principles based on your specific analytical needs.
- If your primary focus is maximum accuracy and trace analysis: Prioritize extremely fine grinding (<50 microns) and avoid binders if possible. Use a slow pressure release cycle and verify pellet density.
- If your primary focus is high throughput for process control: Standardize on a "good enough" grinding time and use a consistent ratio of a binding agent to guarantee robust pellets quickly.
- If your primary focus is analyzing brittle or difficult materials (e.g., ceramics, glass): A binder is not optional; it is a required tool. Experiment with binder type and percentage to achieve a durable, crack-free pellet.
By mastering these fundamental principles of pressure, particle size, and distribution, you transform sample preparation from a source of error into a cornerstone of reliable analysis.
Summary Table:
| Defect Type | Root Cause | Prevention Strategy |
|---|---|---|
| Cracking and Lamination | Rapid air expansion or internal stress | Slow pressure release, homogenize powder |
| Surface Pitting and High Porosity | Large or irregular particles | Grind to <75 microns for tight packing |
| Uneven or Domed Surfaces | Improper powder distribution in die | Level powder bed before pressing |
