At their core, control valves are the non-negotiable command-and-control system of a hydraulic press. They precisely regulate the flow, pressure, and direction of hydraulic fluid from the pump to the cylinder. This regulation is what allows the immense force generated by the press to be applied with control, accuracy, and repeatability.
A hydraulic press without control valves is simply a source of immense, untamed force. The valves are the critical components that translate raw power into a precise, functional, and safe industrial tool.
The Core Functions of Hydraulic Control
A hydraulic press operates on a simple principle: fluid under pressure creates force. However, to make this useful, the fluid must be expertly managed. Control valves perform three fundamental jobs to achieve this.
Directing the Flow
The most basic function of a control valve is to act as a switch. A directional control valve dictates where the pressurized fluid goes.
It can send fluid to the main cylinder to extend the ram for a pressing operation, or it can reverse the flow to retract the ram after the work is done. It can also route the fluid directly back to the tank, allowing the pump to run without moving the press.
Managing System Pressure
Force is a direct product of pressure. Pressure control valves set the limits and specific operating pressures within the system.
A pressure relief valve is the most critical safety component, acting as a governor by automatically diverting excess flow back to the tank if pressure exceeds a safe limit. Other valves can reduce pressure for specific parts of a cycle, allowing for precise force application.
Controlling Ram Speed
The speed at which the ram extends or retracts is determined by the flow rate of the fluid entering the cylinder.
Flow control valves act like a faucet, throttling the volume of fluid that can pass through them. By adjusting this flow, an operator can command a fast approach speed followed by a slow, controlled final press, optimizing cycle time without sacrificing precision.
How Valves Enable the Press Cycle
These three functions work in concert to execute a typical machine cycle, transforming a sequence of commands into physical work.
The Press Stroke (Extension)
To begin, the operator activates a directional valve. This valve routes pressurized fluid from the pump into the main cylinder, pushing on the piston and extending the ram towards the workpiece. Flow control valves can fine-tune the speed of this descent.
Holding Position Under Load
For applications like molding or bonding, the press must maintain force for a period of time. A closed-center directional valve can block the fluid ports, trapping the pressurized fluid in the cylinder and locking the ram in position.
The Return Stroke (Retraction)
Once the operation is complete, the directional valve shifts again. It redirects fluid flow, either by sending pressure to the opposite side of the piston or by simply opening a path for the fluid to drain back to the reservoir, allowing the ram to retract.
Understanding the Trade-offs
The type of control valve used involves a direct trade-off between cost, complexity, and the level of precision required for the task.
Simplicity vs. Precision
Simple, manually operated directional valves are robust and inexpensive but offer limited control—essentially just on, off, forward, and reverse.
Proportional valves and servo valves, in contrast, can modulate flow and pressure with extreme precision based on an electrical signal. This allows for computer-controlled cycles with unparalleled accuracy but at a significantly higher cost and complexity.
Energy Efficiency
Controlling speed by throttling the fluid with a flow control valve is simple but highly inefficient. The excess pressure blocked by the valve is converted directly into heat, which must be dissipated by a cooling system.
More advanced systems that control the pump's output directly are far more energy-efficient but add mechanical complexity. Choosing the right method depends on the duty cycle and energy costs.
Making the Right Choice for Your Goal
The control valve strategy must align with the intended application of the hydraulic press.
- If your primary focus is basic forming or assembly: A system with simple directional and pressure relief valves provides reliable, cost-effective functionality.
- If your primary focus is high-precision molding or testing: Proportional or servo valves are necessary to achieve the tight control over force, speed, and position required for repeatable, high-quality results.
- If your primary focus is high-speed cycling and energy savings: Investing in a system with advanced valve controls or a variable displacement pump will reduce heat generation and lower long-term operating costs.
Ultimately, control valves are what transform the brute force of hydraulics into the precise and productive work that defines modern manufacturing.
Summary Table:
| Function | Key Valve Types | Role in Hydraulic Press |
|---|---|---|
| Directing Flow | Directional Control Valve | Routes fluid to extend/retract ram, enabling press cycles |
| Managing Pressure | Pressure Relief Valve | Sets safe pressure limits, prevents system overload |
| Controlling Speed | Flow Control Valve | Adjusts ram speed for precision and efficiency |
Optimize your hydraulic press performance with KINTEK's advanced lab press machines! We specialize in automatic lab presses, isostatic presses, and heated lab presses designed for precise control and reliability in laboratory settings. Whether you need basic functionality or high-precision molding, our solutions enhance efficiency and safety. Contact us today to discuss how we can meet your specific needs and boost your productivity!

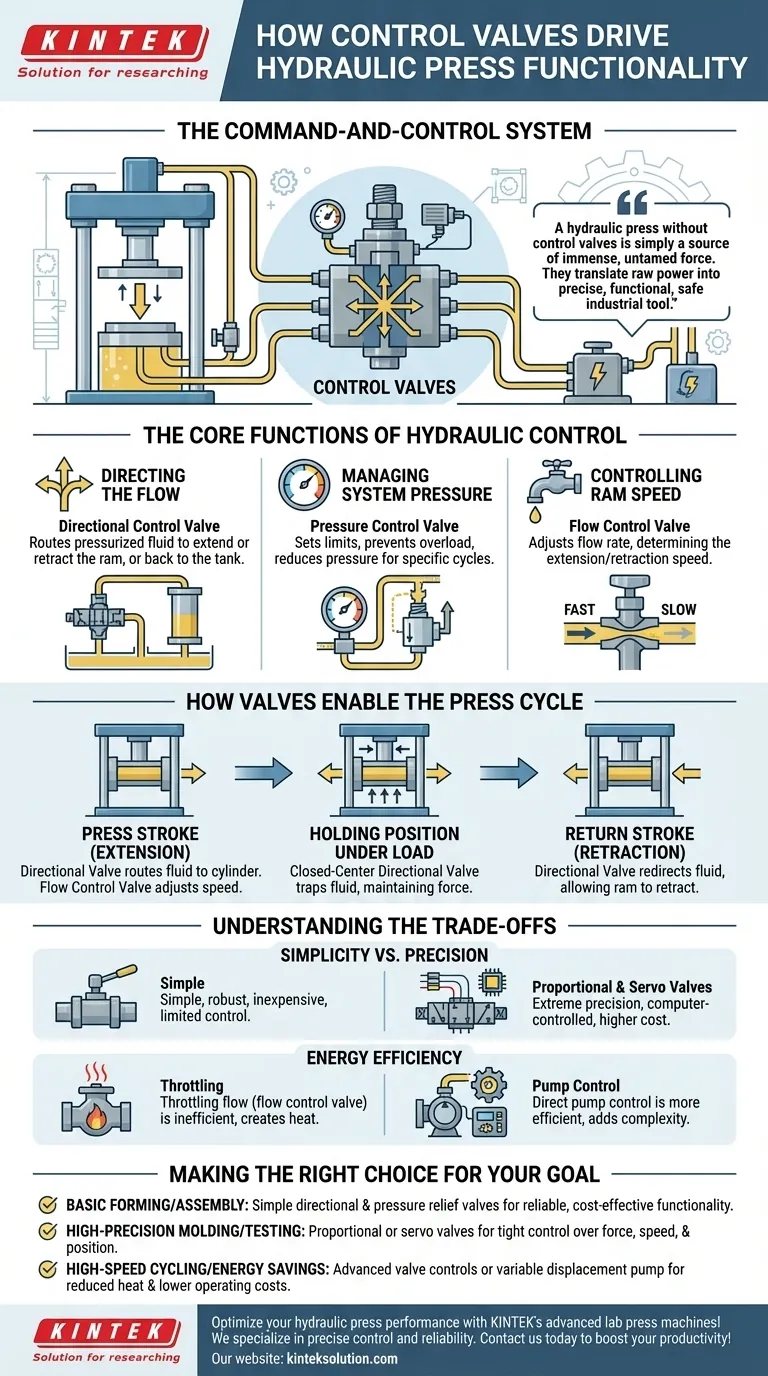

Visual Guide
