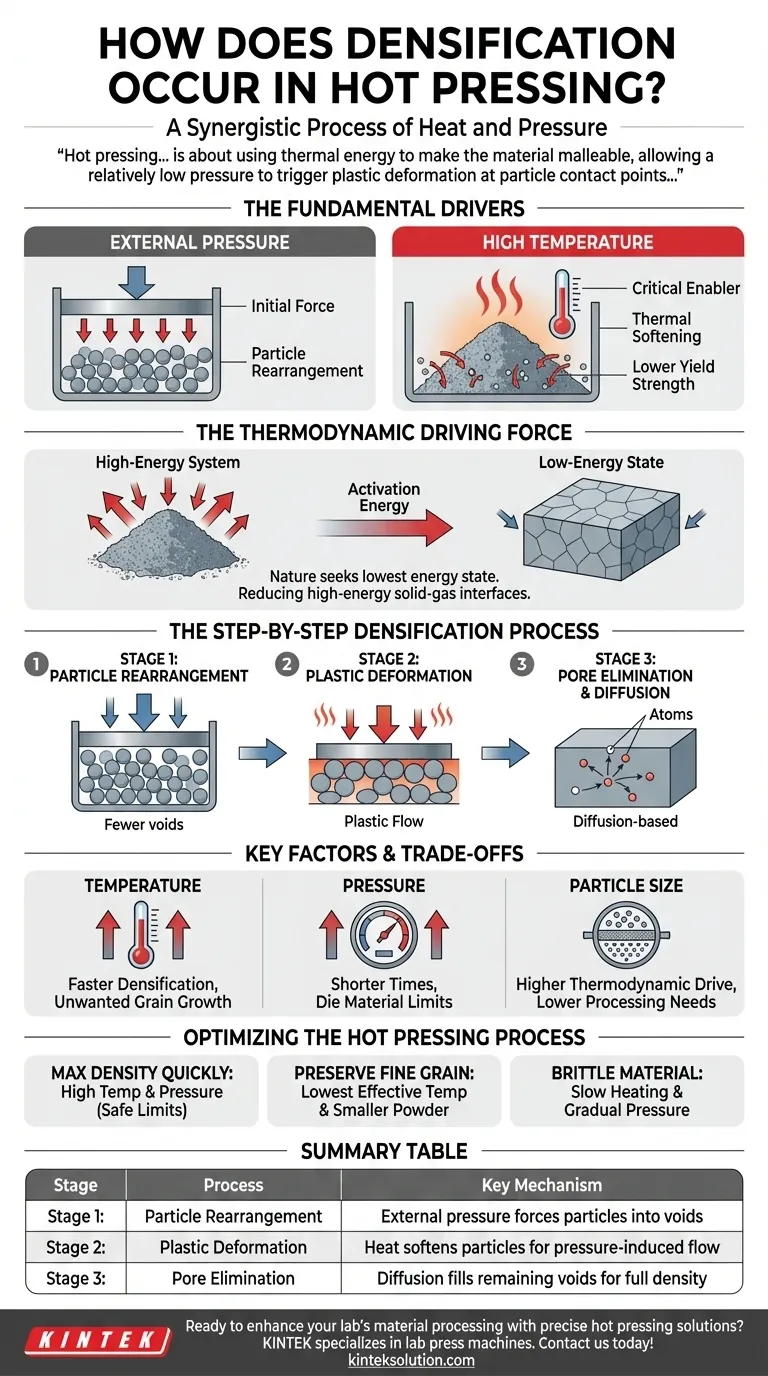

At its core, densification in hot pressing is a synergistic process where high temperature softens a powder material, allowing external pressure to force the particles together. This combination eliminates the empty spaces, or pores, between them, fusing the powder into a solid, dense component.
Hot pressing is not just about squeezing particles together. It is about using thermal energy to make the material malleable, allowing a relatively low pressure to trigger plastic deformation at particle contact points, which is the primary mechanism for achieving high density.
The Fundamental Drivers of Densification
To understand how hot pressing works, you must first grasp the two forces at play: the external force of pressure and the internal driving force created by temperature.
The Role of External Pressure
The applied pressure serves as the initial and constant force for consolidation. It drives the first stage of densification by causing particle rearrangement.
Imagine a container of loose gravel. Shaking it causes the stones to settle into a tighter arrangement. In hot pressing, external pressure accomplishes this far more effectively, forcing the powder particles to slide past one another into a more densely packed configuration.
The Role of High Temperature
Temperature is the critical enabler. As the material heats up, its atoms vibrate more intensely, weakening the bonds holding them in a rigid structure. This makes the material softer and more susceptible to changing its shape.
This thermal softening dramatically lowers the material's yield strength, which is the stress required to cause permanent deformation.
The Thermodynamic Driving Force
On a microscopic level, a collection of loose powder is a high-energy system. This is because the vast amount of surface area of the particles contains significant surface free energy.
Nature always seeks the lowest energy state. By fusing together and replacing high-energy solid-gas interfaces (particle surfaces) with lower-energy solid-solid interfaces (grain boundaries), the system's total free energy decreases. High temperature provides the activation energy needed for this process to occur.
The Step-by-Step Densification Process
Densification is not instantaneous. It progresses through distinct, often overlapping, stages as temperature and pressure are applied.
Stage 1: Particle Rearrangement
As pressure is first applied, particles are mechanically pushed into the voids between their neighbors. This initial packing breaks down any loose structures or "bridging," leading to a significant and rapid increase in the part's overall density.
Stage 2: Plastic Deformation
This is the heart of the hot pressing process. As the temperature rises, the contact points between particles become soft. The constant external pressure now forces these softened points to deform and flatten, a mechanism known as plastic flow.
This flattening dramatically increases the contact area between particles, squeezing out the pores that were trapped between them. The efficiency of this stage is what distinguishes hot pressing from pressureless sintering.
Stage 3: Pore Elimination and Diffusion
In the final stage, most pores have been closed. The remaining voids are typically small and isolated within the material. These are eliminated through slower, diffusion-based mechanisms where atoms migrate to fill the vacancies, leading to the final approach towards 100% theoretical density.
Key Factors and Their Trade-offs
Controlling the outcome of hot pressing requires a careful balance of its core parameters. Each choice involves a trade-off that affects the final properties of the component.
The Impact of Temperature
Higher temperatures accelerate plastic flow and diffusion, leading to faster and more complete densification. However, excessive temperatures can cause unwanted grain growth, which can often degrade the material's mechanical properties, such as strength and hardness.
The Impact of Pressure
Increasing pressure enhances the driving force for rearrangement and plastic flow. This can shorten processing times and help densify materials at lower temperatures. The primary limitation is the mechanical strength of the die material, typically graphite, which can fail under excessive pressure.
The Impact of Particle Size
The process is more effective with smaller starting particles. Smaller particles possess a higher surface-area-to-volume ratio, which means they have greater surface free energy. This provides a stronger thermodynamic drive for densification, allowing the process to occur at lower temperatures and shorter times.
Optimizing the Hot Pressing Process
Fine-tuning the process parameters is essential for achieving your specific material and component goals.
- If your primary focus is achieving maximum density quickly: Utilize higher temperatures and pressures, staying within the safe operating limits of your material and equipment.
- If your primary focus is preserving a fine grain structure for superior mechanical properties: Use the lowest effective temperature and pair it with smaller starting powders to promote densification without encouraging grain growth.
- If you are working with a brittle or sensitive material: Employ a slower heating rate and a gradual application of pressure to prevent cracking from thermal shock or mechanical stress.
Mastering the interplay between heat, pressure, and your starting material is the definitive path to successfully manufacturing high-performance components.
Summary Table:
| Stage | Process | Key Mechanism |
|---|---|---|
| Stage 1 | Particle Rearrangement | External pressure forces particles into voids |
| Stage 2 | Plastic Deformation | Heat softens particles for pressure-induced flow |
| Stage 3 | Pore Elimination | Diffusion fills remaining voids for full density |
