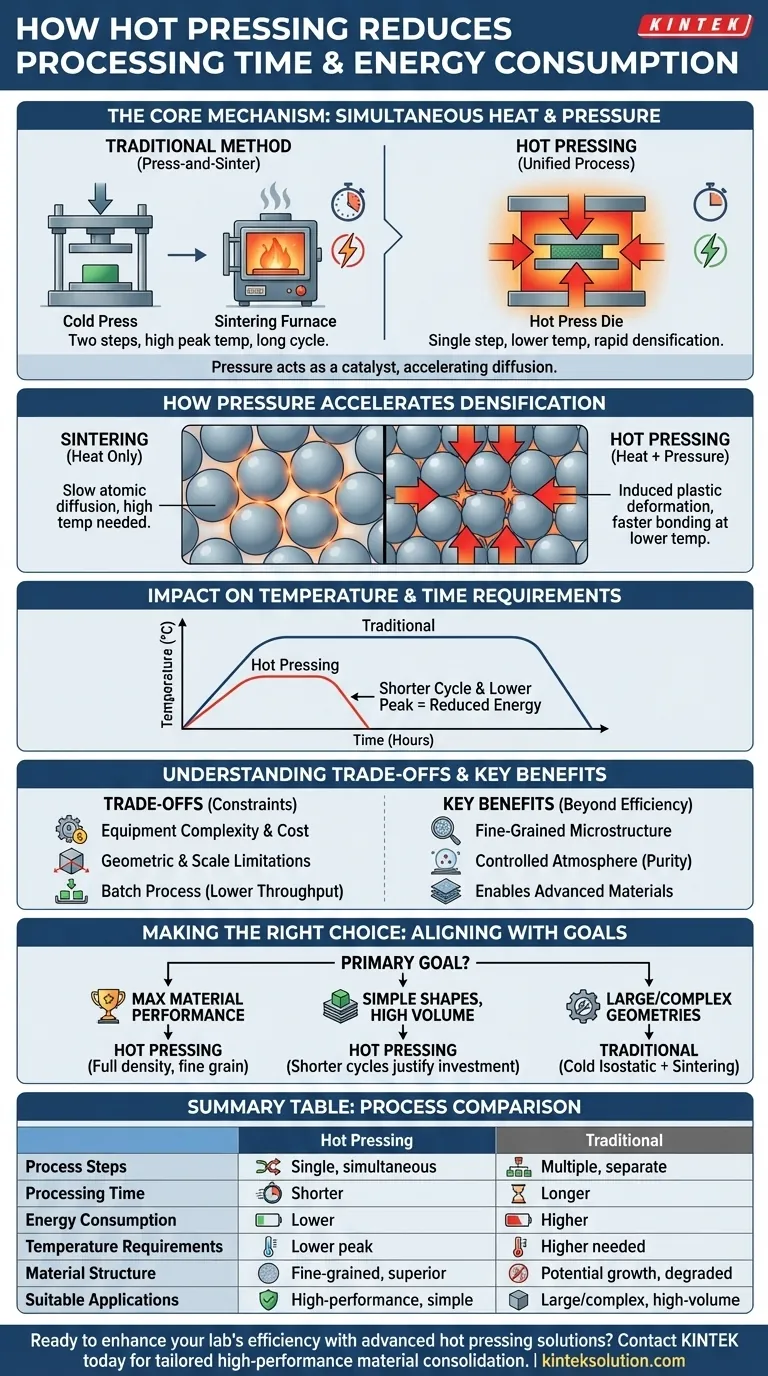

At its core, hot pressing reduces processing time and energy use by fundamentally changing how a material is consolidated. Unlike traditional methods that separate compaction and heating, hot pressing combines these into a single, highly efficient operation where immense pressure is applied to the material as it is being heated.
The central advantage of hot pressing is that the simultaneous application of heat and pressure dramatically accelerates the material densification process. This allows you to achieve full density in less time and at lower temperatures, directly cutting both cycle duration and energy consumption.
The Core Mechanism: Simultaneous Heat and Pressure
The efficiency of hot pressing stems from its unique, unified approach to material consolidation. By understanding the physics at play, it becomes clear why this method is faster and more energy-efficient than its traditional counterparts.
Combining Steps into a Single Operation
Traditional powder metallurgy often involves a "press-and-sinter" workflow. First, the powder is compacted into a shape at room temperature (cold pressing), and then this "green" part is moved to a separate furnace for a long heating cycle (sintering).
Hot pressing eliminates this two-step process. The powder is loaded directly into a die, which is then heated while uniaxial pressure is applied, achieving both compaction and thermal bonding in one seamless step.
How Pressure Accelerates Densification
In sintering, densification relies solely on heat to drive atomic diffusion between material particles. This is a slow process that requires high temperatures and significant time.
Hot pressing introduces pressure as a powerful catalyst. The applied force increases the contact area between particles and induces plastic deformation, which dramatically speeds up the diffusion mechanisms responsible for bonding and eliminating porosity.
The Impact on Temperature Requirements
Because pressure assists so effectively in the densification process, hot pressing does not require temperatures as high as those needed for conventional sintering to achieve the same final density.
Operating at a lower peak temperature for a shorter duration results in a direct and significant reduction in the total energy (kilowatt-hours) consumed per cycle.
Understanding the Trade-offs
While highly efficient, hot pressing is not a universal solution. Its benefits must be weighed against its specific operational requirements and limitations.
Equipment Complexity and Cost
A hot press is a more sophisticated and expensive piece of equipment than a conventional furnace. The system must safely manage extreme pressures and high temperatures simultaneously, which increases its initial capital cost and maintenance complexity.
Geometric and Scale Limitations
The process relies on a rigid die to contain the material and apply pressure. This inherently limits the size and geometric complexity of the components that can be produced. Large or intricate shapes are often not feasible with this method.
Material and Throughput Considerations
Hot pressing is typically a batch process with a single part or a small number of parts produced per cycle. While the cycle time is short, it may not match the throughput of continuous sintering furnaces used for mass-producing small, simple parts.
Key Process Benefits Beyond Efficiency
The efficiency of hot pressing also enables secondary benefits that are critical for producing high-performance materials. These advantages are a direct result of the lower temperatures and shorter times used.
Preventing Unwanted Grain Growth
The fine-grained microstructure of a material is often crucial for its mechanical properties, such as strength and hardness. High temperatures and long hold times, common in traditional sintering, cause these grains to grow larger, which can degrade performance.
Hot pressing's short duration and lower temperature preserve a fine-grained microstructure, leading to superior final material properties.
Processing in a Controlled Atmosphere
Most hot pressing is conducted in a vacuum or an inert gas environment. This is essential for preventing oxidation and contamination, especially when working with reactive materials like titanium or certain advanced ceramics. The result is a purer material with stronger, cleaner bonds between particles.
Enabling Advanced Materials
For many high-performance ceramics and composites, achieving full density without pressure is nearly impossible. Hot pressing is not just an optimization but an enabling technology that allows for the creation of novel materials that could not be fabricated otherwise.
Making the Right Choice for Your Goal
Selecting a consolidation method requires aligning the process capabilities with your specific material and production objectives.
- If your primary focus is maximum material performance: Hot pressing is the superior choice for achieving full density and a fine-grained microstructure, which are critical for high-strength applications.
- If your primary focus is producing simple shapes at high volume: The efficiency of hot pressing can justify the investment, as shorter cycle times increase throughput for components like cutting tools or armor plates.
- If your primary focus is creating large or complex geometries: A multi-step process like cold isostatic pressing followed by pressureless sintering might be more practical and cost-effective, despite its higher energy use per part.
Ultimately, understanding the interplay between heat, pressure, and time empowers you to select the manufacturing process that best achieves your desired balance of performance, cost, and speed.
Summary Table:
| Aspect | Hot Pressing | Traditional Methods |
|---|---|---|
| Process Steps | Single step: simultaneous heat and pressure | Multiple steps: cold pressing then sintering |
| Processing Time | Shorter due to accelerated densification | Longer due to separate heating cycles |
| Energy Consumption | Lower from reduced temperatures and time | Higher from extended high-temperature sintering |
| Temperature Requirements | Lower peak temperatures | Higher temperatures needed |
| Material Microstructure | Fine-grained, superior properties | Potential grain growth, degraded properties |
| Suitable Applications | High-performance materials, simple shapes | Large or complex geometries, high-volume parts |
