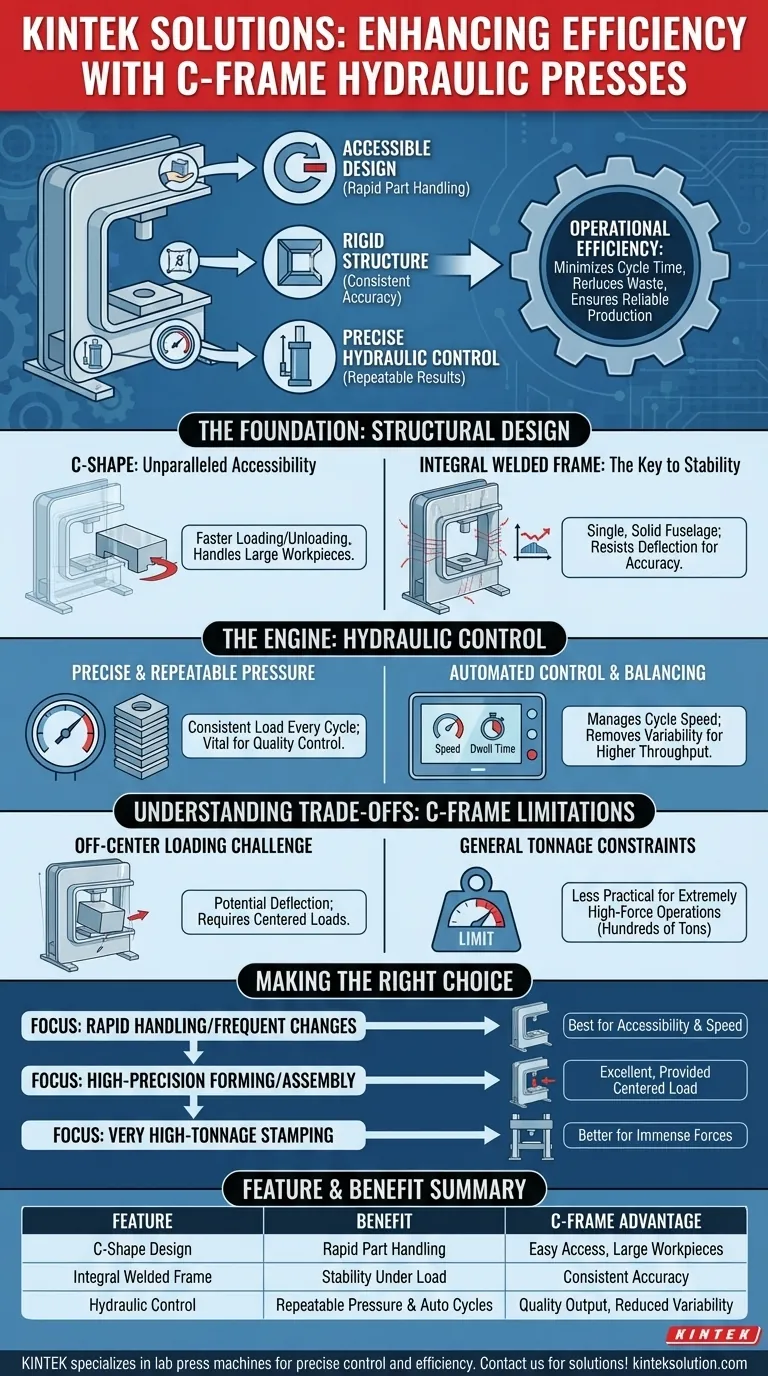

At its core, a C-frame hydraulic press enhances operational efficiency by combining three critical elements: an open, accessible design for rapid part handling, a rigid structure for consistent accuracy, and a precisely controlled hydraulic system for repeatable results. This fusion of accessibility and control minimizes cycle time, reduces material waste, and ensures a stable, reliable production process.
The primary efficiency gain from a C-frame press is not simply about speed. It stems from a design philosophy that prioritizes ease of use and process stability, which in turn reduces operator effort, minimizes errors, and delivers predictable, high-quality output.
The Foundation of Efficiency: Structural Design
The physical structure of a C-frame press is its most defining characteristic and a primary driver of its operational effectiveness. Two aspects of its design are fundamental to its performance.
The "C" Shape: Unparalleled Accessibility
The signature open-sided "C" shape provides a large and unobstructed operating space. This is a significant advantage over enclosed H-frame or 4-post designs.
This accessibility makes it dramatically easier and faster for an operator to load raw material and unload finished parts. It is also ideal for handling larger or awkwardly shaped workpieces that would be cumbersome in a more restrictive frame.
Integral Welded Frame: The Key to Stability
Modern C-frame presses are built with an integral welded structure. This manufacturing technique creates a single, solid fuselage.
The purpose of this rigid construction is to resist deflection when the press is under full load. This inherent stability is crucial for maintaining accuracy, ensuring that the force is applied evenly and the final part meets dimensional specifications every time.
The Engine of Efficiency: Hydraulic Control
While the frame provides the stable platform, the hydraulic system provides the controlled power that makes the press a precision tool.
Precise and Repeatable Pressure
Hydraulic systems excel at applying precise and consistent pressure cycle after cycle. This is a key advantage over mechanical presses, where force can vary.
Using features like a pressure gauge, an operator can ensure the exact same load is applied to every single part. This repeatability is vital for quality control and is essential in applications where uniformity is paramount, such as creating sample pellets for lab analysis or performing sensitive assembly tasks.
Automated Control and Balancing
Many C-frame presses feature automated control panels and hydraulic balance devices. These systems manage the press cycle, from the speed of approach to the dwell time under pressure and the speed of retraction.
Automating the cycle removes operator variability, leading to more consistent output and higher throughput. It ensures the process is performed optimally every time, maximizing efficiency and minimizing the potential for human error.
Understanding the Trade-offs: C-Frame Limitations
To use a tool effectively, one must also understand its limitations. The C-frame's design, while beneficial, comes with inherent trade-offs.
The Challenge of Off-Center Loading
The open design that provides such great accessibility also makes the C-frame more susceptible to deflection if the load is not centered. This is sometimes called "jawing."
For applications requiring the absolute highest levels of precision with potentially uneven loads, a 4-post or straight-side press may offer superior rigidity. It is critical to ensure your workpiece and tooling are centered to maximize the C-frame's accuracy.
General Tonnage Constraints
C-frame presses are workhorses for a vast range of low-to-mid tonnage applications. However, their design is less practical for extremely high-force operations.
For applications requiring many hundreds or thousands of tons of force, an H-frame or 4-post design is typically more structurally and economically efficient.
Making the Right Choice for Your Application
Selecting the right press requires matching its strengths to your operational goals.
- If your primary focus is rapid part handling or frequent tool changes: The C-frame's unparalleled accessibility is its greatest asset, minimizing downtime and maximizing throughput.
- If your primary focus is high-precision forming or assembly: The C-frame is an excellent choice, provided the load is centered and the frame's rigidity is sufficient for your tonnage requirements.
- If your primary focus is very high-tonnage stamping or molding: An H-frame or 4-post press is likely a better fit, offering superior rigidity to handle immense forces.
By understanding its unique balance of accessibility and control, you can leverage the C-frame press to build a more efficient and reliable production process.
Summary Table:
| Feature | Benefit |
|---|---|
| C-Shape Design | Enables rapid part handling and easy access for large workpieces |
| Integral Welded Frame | Provides stability and consistent accuracy under load |
| Hydraulic Control System | Ensures repeatable pressure and automated cycles for quality output |
| Automated Controls | Reduces operator variability and increases throughput |
