How Is Hydraulic Pressure Utilized In Warm Isostatic Pressing? Achieve Uniform Density And Complex Shapes

In Warm Isostatic Pressing (WIP), hydraulic pressure is the fundamental mechanism used to consolidate a powder into a solid, uniform component. A heated liquid, such as specialized oil or water, is pumped into a sealed pressure vessel, where it envelops a flexible mold containing the powder. This fluid transmits force equally and simultaneously from all directions, creating the "isostatic" pressure that compacts the material with exceptional consistency.

The central principle is this: using a liquid as the pressure medium is what makes the process isostatic. Unlike a mechanical press that pushes from one or two directions, the hydraulic fluid ensures that pressure is applied uniformly over the entire surface of the part, eliminating density variations and internal stress.

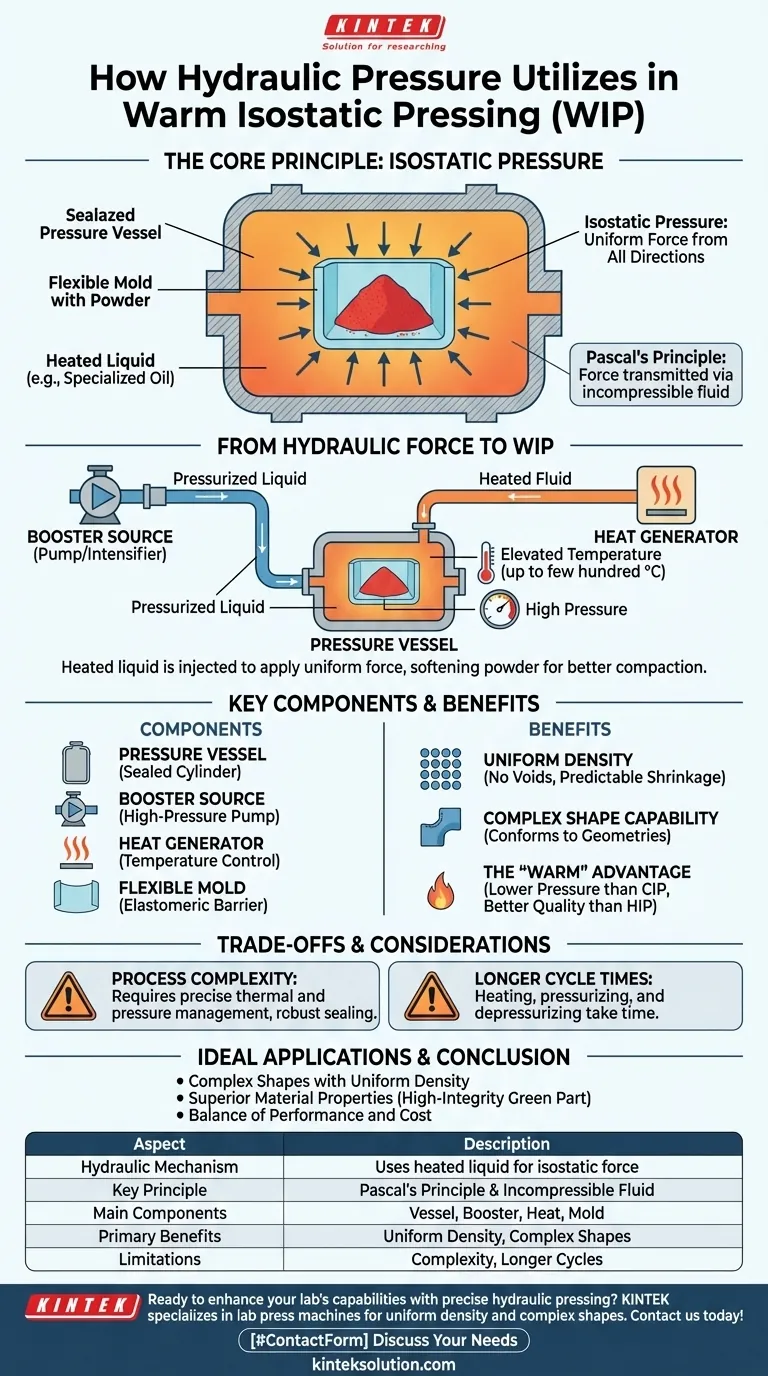

How is hydraulic pressure utilized in Warm Isostatic Pressing? Achieve Uniform Density and Complex Shapes

The Principle: From Hydraulic Force to Isostatic Pressure

To understand Warm Isostatic Pressing, you must first understand the role of the hydraulic fluid. It is not merely a power source; it is the medium that defines the entire process.

How Pressure is Generated

The system operates on Pascal's principle. A force is applied to a piston in a small cylinder, which pressurizes the contained hydraulic fluid. This pressure is then transmitted through the fluid to the main pressing chamber, which acts as a much larger cylinder, thereby amplifying the force significantly.

The Role of the Liquid Medium

The heated liquid is the defining feature of the process. A booster source, or pressure intensifier, injects this liquid into the sealed pressing chamber. The fluid's incompressibility allows it to transmit the pressure generated by the booster pump directly and evenly onto the workpiece.

Achieving Isostatic Compaction

The term isostatic means "uniform pressure from all directions." Because the powder is held in a sealed, flexible mold surrounded by the hydraulic fluid, it experiences this pressure evenly across its entire surface. This is a critical distinction from traditional uniaxial pressing, where pressure from a top and bottom punch can create density gradients and internal friction.

Key Components of a WIP System

A Warm Isostatic Press is a sophisticated system where each component serves a precise function to control pressure and temperature.

The Pressure Vessel

This is the high-strength, sealed cylinder where the compaction takes place. It is engineered to safely contain the extreme pressures and elevated temperatures required by the process.

The Booster Source

The booster source is the high-pressure pump or intensifier responsible for injecting the heated liquid into the vessel. It must maintain the required pressure and flow rate to ensure efficient and precise mold filling and compaction.

The Heat Generator

The "warm" in WIP is critical. A heat generator and control system maintain the precise temperature of the hydraulic fluid. This elevated temperature (typically up to a few hundred degrees Celsius) helps soften the powder particles, allowing for better deformation and higher compacted density at lower pressures.

The Flexible Mold

The powder material is not placed directly in the vessel. Instead, it is loaded into a flexible, sealed mold made of an elastomeric material like polyurethane or rubber. This mold acts as a barrier, keeping the powder dry while perfectly transmitting the hydraulic pressure to the material within.

Understanding the Benefits and Trade-offs

Using hydraulic pressure in this manner provides distinct advantages, but it's important to understand the context.

Primary Benefit: Uniform Density

Isostatic pressure is exceptionally effective at eliminating voids and air pockets within the powder mass. The resulting "green" part (pre-sintering) has a highly uniform density, which translates to predictable shrinkage and superior mechanical properties in the final product.

Primary Benefit: Complex Shape Capability

Because pressure is applied by a fluid, it can perfectly conform to complex geometries without the need for intricate and expensive multi-part steel dies. This minimizes internal stress and the risk of cracking in parts with sharp corners or thin walls.

The "Warm" Advantage

The added heat softens the powder particles, reducing the pressure required to achieve high density compared to Cold Isostatic Pressing (CIP). This results in a better-quality green part without the extreme energy costs and material challenges of Hot Isostatic Pressing (HIP).

Limitation: Process Complexity

WIP systems are more complex than simple mechanical presses. Managing a heated, high-pressure liquid requires robust sealing, precise thermal management, and longer cycle times for heating, pressurizing, and depressurizing the vessel.

Making the Right Choice for Your Goal

The decision to use WIP hinges on the required quality and complexity of the final component.

If your primary focus is producing complex shapes with uniform density: WIP is an ideal choice, as the isostatic hydraulic pressure prevents the weak spots and internal stress common in traditional die compaction.
If your primary focus is superior material properties: The combination of heat and uniform pressure in WIP creates a high-integrity green part, leading to enhanced performance after final sintering.
If your primary focus is a balance of performance and cost: WIP offers a significant quality improvement over cold pressing without incurring the extreme expense and complexity of hot isostatic pressing.

By leveraging a heated liquid to apply uniform force, Warm Isostatic Pressing delivers a level of material integrity that is difficult to achieve with any other method.

Summary Table:

Aspect	Description
Hydraulic Pressure Mechanism	Uses heated liquid (e.g., oil, water) in a sealed vessel to apply isostatic force from all directions
Key Principle	Pascal's principle for force amplification and uniform pressure transmission via incompressible fluid
Main Components	Pressure vessel, booster source (pump/intensifier), heat generator, flexible mold
Primary Benefits	Uniform density, capability for complex shapes, reduced pressure needs with heat
Limitations	Higher complexity, longer cycle times, precise thermal and pressure management required
Ideal Applications	Producing complex shapes with uniform density, enhancing material properties, balancing performance and cost
