Temperature control in Warm Isostatic Pressing is achieved by precisely heating the pressure medium—typically oil or gas—before or during pressurization. This is managed using a combination of external and internal heaters, which are governed by high-precision digital control systems to ensure the temperature is both accurate and uniform throughout the part being processed.
The central challenge is not simply heating the system, but achieving and maintaining a highly uniform temperature across the entire component. This precision is critical because temperature directly dictates the final density, structural integrity, and performance of the pressed material.

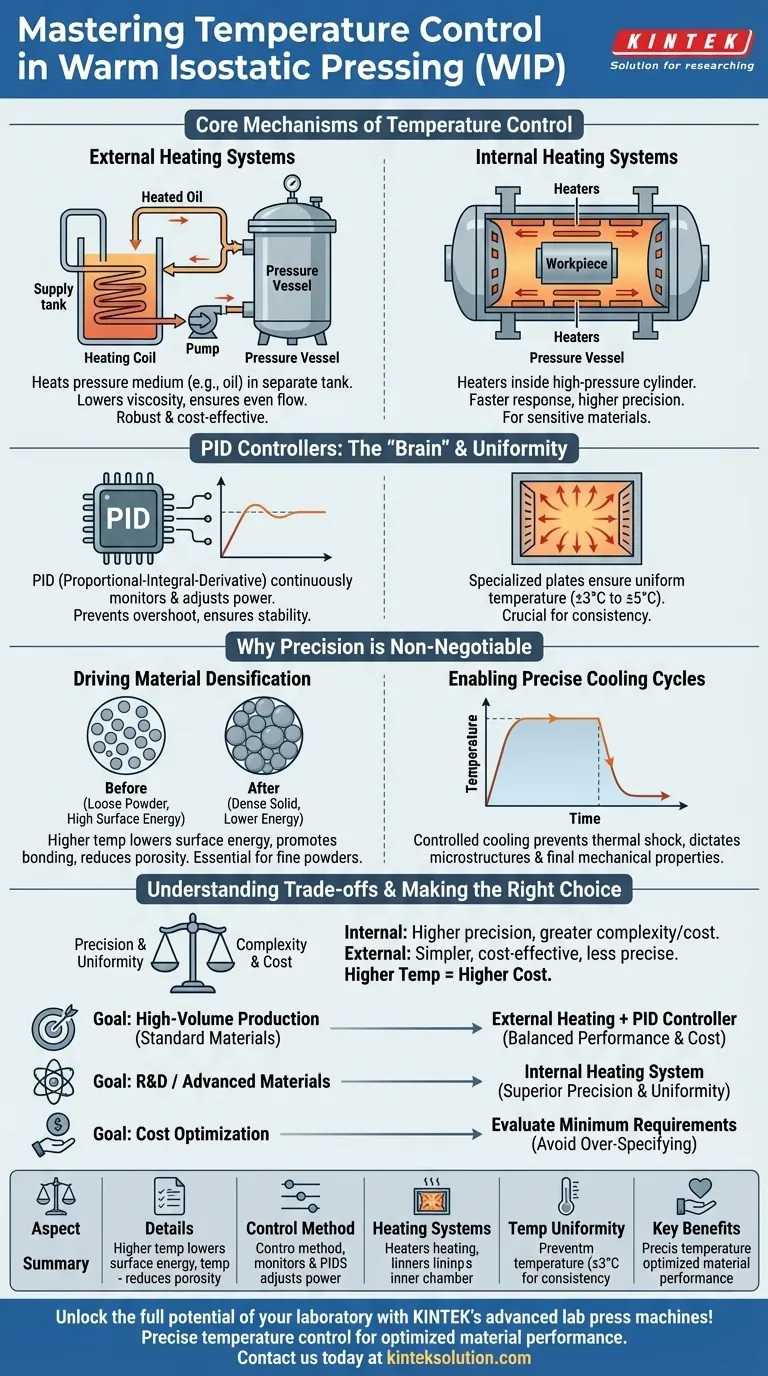

The Core Mechanisms of Temperature Control
Achieving the required thermal conditions in a WIP system involves a few key technologies working in concert. The choice between them depends on the precision required for the application.
External Heating Systems
The most common method involves heating the pressure medium (e.g., oil) in a supply tank, separate from the main pressure vessel. A heat generator or industrial heater brings the fluid to the target temperature before it is injected into the chamber.
This approach is robust and effective for many applications. A key secondary benefit is that heating the liquid medium lowers its viscosity, making it easier to pump and ensuring it flows evenly around the component for uniform pressure application.
Internal Heating Systems
For applications demanding the highest degree of precision, heaters are placed directly inside the high-pressure cylinder. This minimizes heat loss and allows the control system to respond much faster to temperature fluctuations near the workpiece.
Internal heating is essential when the material's properties are exceptionally sensitive to minor temperature variations.
The Role of PID Controllers
The "brain" of the temperature control system is a PID (Proportional-Integral-Derivative) controller. This digital device continuously monitors the temperature and intelligently adjusts the power to the heaters.
A PID controller anticipates temperature changes, preventing overshoot and ensuring the system holds the target temperature with exceptional stability. This is what allows for the high accuracy needed for consistent results.
Ensuring Temperature Uniformity
Heating the medium is only half the battle; the heat must be distributed evenly. This is often accomplished with specialized heat transfer pipes or plates within the vessel that ensure a uniform temperature profile across the surface of the part.
A common industry standard for uniformity is between ±3°C and ±5°C. Achieving a smaller, more uniform range indicates a higher-performance system.
Why Precise Temperature is Non-Negotiable
The emphasis on temperature control isn't arbitrary. It is fundamental to the physics of the WIP process and the quality of the final product.
Driving Material Densification
At a microscopic level, increasing the temperature lowers the surface free energy of the powder particles. This reduction in energy promotes the formation of new, more stable bonds between particles, leading to greater densification and a reduction in porosity.
This effect is even more significant for finer powders, where the initial surface area is much higher. Correct temperature is the catalyst for turning a loose powder into a dense, solid part.
Enabling Precise Cooling Cycles
Thermal management also includes cooling. Many advanced presses integrate cooling systems to control the rate at which the part returns to ambient temperature.
This controlled cooling is vital for preventing thermal shock in brittle materials and for achieving specific microstructures in metals, which can directly influence their final mechanical properties.
Understanding the Trade-offs
Specifying a WIP system requires balancing performance requirements with practical constraints.
Precision vs. Complexity
Internal heating systems offer superior temperature precision but add complexity and cost to the pressure vessel's design and maintenance. External heating is simpler and more cost-effective but may not be suitable for the most demanding materials.
The Cost of Higher Temperatures
While WIP systems can operate at temperatures up to 500°C, higher temperature requirements significantly increase the complexity of the equipment. The materials used to build the press must withstand these conditions, driving up manufacturing costs and operational expenses.
The Challenge of Uniformity
Striving for the tightest possible temperature uniformity (e.g., ±3°C) is technically demanding and more expensive than accepting a wider range (e.g., ±5°C). The necessary uniformity is dictated entirely by the sensitivity of the material being processed.
Making the Right Choice for Your Goal
Your thermal strategy should align directly with your material and production goals.
- If your primary focus is high-volume production with standard materials: An external heating system with a reliable PID controller often provides the best balance of performance and cost-effectiveness.
- If your primary focus is R&D or processing advanced materials: An internal heating system is critical for the superior precision and uniformity needed to achieve specific, repeatable material properties.
- If your primary focus is cost optimization: Carefully evaluate the minimum temperature and uniformity your material requires, as over-specifying these parameters is the fastest way to increase equipment and operational costs.
Ultimately, mastering temperature control is the key to unlocking the full potential of the Warm Isostatic Pressing process for your specific application.
Summary Table:
Aspect | Details |
---|---|
Control Method | PID controllers for accurate temperature regulation |
Heating Systems | External (cost-effective) or Internal (high-precision) |
Temperature Uniformity | Typically ±3°C to ±5°C across the part |
Key Benefits | Enhanced densification, structural integrity, and material performance |
