Compared to traditional methods like uniaxial dry pressing, Cold Isostatic Pressing (CIP) offers significant advantages for forming alumina ceramics, primarily centered on superior uniformity and greater design freedom. CIP applies pressure equally from all directions to a powdered material in a flexible mold. This isostatic pressure minimizes the density gradients that cause cracking and distortion during sintering, enabling the creation of complex components that are simply not possible with other methods.
Choosing the right forming method for alumina ceramics is a critical decision that impacts both component performance and project cost. Cold Isostatic Pressing (CIP) excels by creating highly uniform, pre-sintered parts, making it the ideal choice for complex geometries or applications where internal defects are unacceptable.

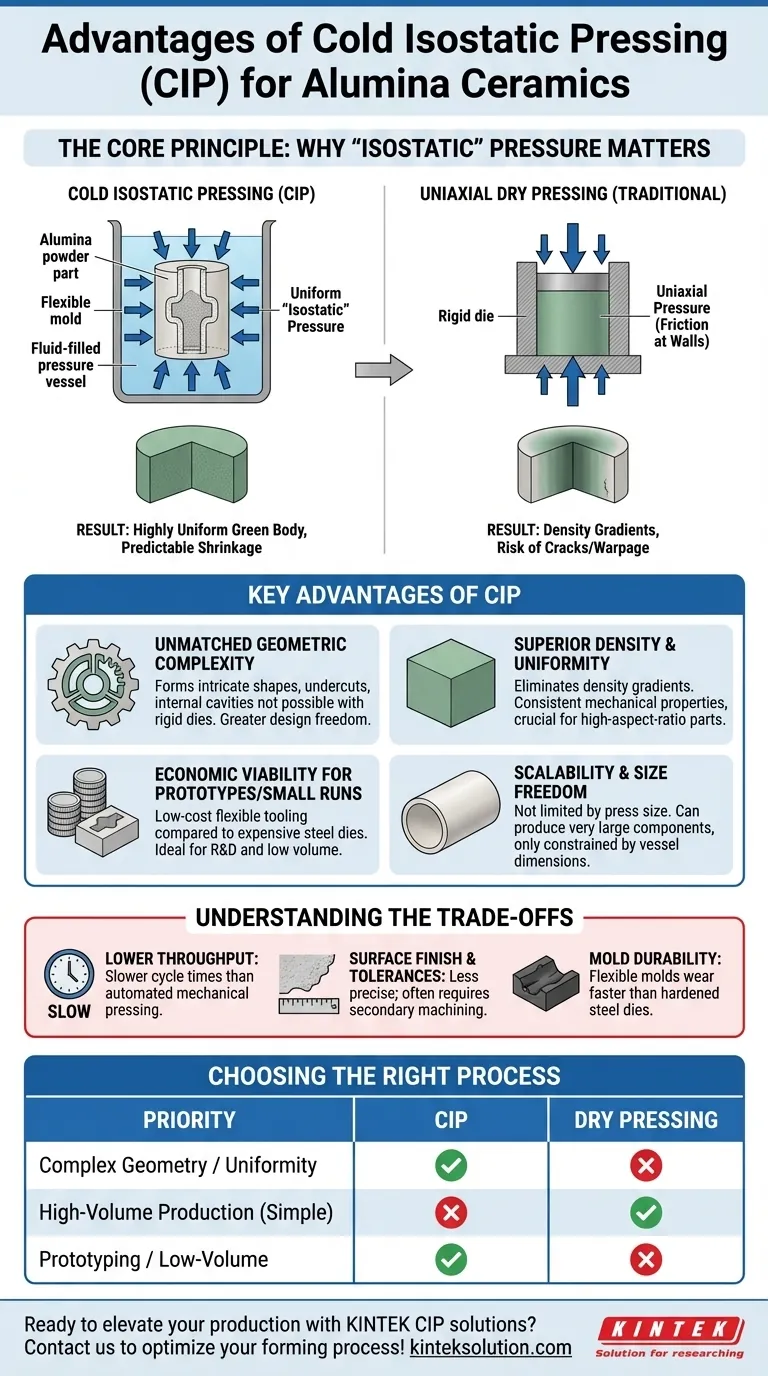

The Core Principle: Why "Isostatic" Pressure Matters
The unique benefits of CIP all stem from its fundamental mechanism: the application of uniform, or "isostatic," pressure. Understanding this principle is key to knowing when to use it.
Defining Cold Isostatic Pressing (CIP)
CIP involves placing alumina powder into a flexible, sealed mold (often made of rubber or urethane). This mold is then submerged in a fluid within a high-pressure vessel. As the fluid is pressurized, it applies equal force to every surface of the mold simultaneously.
The Problem with Uniaxial Pressing
In contrast, traditional methods like dry pressing are uniaxial or biaxial, meaning pressure is applied from only one or two directions. This creates friction against the die walls, leading to significant variations in density throughout the part.
The Result: A Uniform "Green Body"
The primary outcome of CIP is a highly uniform "green body"—the technical term for a compacted, pre-sintered part. This uniform density ensures that the component shrinks predictably and evenly during the final sintering (firing) stage, dramatically reducing the risk of warpage, cracks, or internal flaws.
Key Advantages of CIP for Alumina Ceramics
The uniform pressure of CIP translates directly into tangible benefits for manufacturing advanced ceramic components.
Unmatched Geometric Complexity
Because pressure is applied by a fluid, it can form intricate shapes, undercuts, and internal cavities. Designs that would be locked into a rigid metal die are easily produced with CIP's flexible molds, granting engineers far greater design freedom.
Superior Density and Uniformity
CIP all but eliminates the density gradients that plague uniaxial pressing. This results in components with more consistent mechanical properties and is especially crucial for parts with a high aspect ratio, such as long tubes or rods, which are prone to defects when pressed otherwise.
Economic Viability for Prototypes and Small Runs
The flexible tooling for CIP is significantly less expensive to create than the hardened steel dies required for dry pressing. This low mold cost makes CIP an exceptionally economical choice for prototyping, research and development, and low-volume production runs.
Scalability and Size Freedom
CIP is not constrained by the limitations of a mechanical press. The only physical limit on part size is the internal dimension of the pressure vessel, allowing for the production of very large ceramic components that would be impossible to form with other methods.
Understanding the Trade-offs
While powerful, CIP is not the universal solution. Its advantages come with practical trade-offs that make it unsuitable for certain applications.
Throughput for High-Volume Production
The process of loading the mold, sealing it, placing it in the vessel, pressurizing, and de-pressurizing is inherently slower per-part than a fully automated mechanical press. For producing millions of simple parts, traditional dry pressing is far more cost-effective.
Surface Finish and Tolerances
Parts produced via CIP generally have a less precise surface finish and wider dimensional tolerances compared to those made in a polished steel die. For high-precision applications, a secondary machining step on the green or sintered body is often required.
Mold Durability
The flexible elastomer molds are less durable than the hardened steel dies used in dry pressing. They wear out more quickly, reinforcing CIP's position as a process best suited for lower-volume manufacturing.
Choosing the Right Forming Process for Your Component
Your decision should be guided by your project's specific priorities: geometry, production volume, and performance requirements.
- If your primary focus is complex geometry or maximum uniformity: CIP is the superior choice, as it minimizes internal stresses and enables designs not possible with other methods.
- If your primary focus is high-volume production of simple shapes: Traditional dry pressing will likely be more cost-effective due to its faster automated cycle times.
- If your primary focus is prototyping or low-volume runs: CIP offers a significant cost advantage due to its inexpensive tooling and rapid setup for new designs.
By understanding the fundamental principle of isostatic pressure, you can confidently select the forming method that aligns with your technical and commercial goals.
Summary Table:
Advantage | Description |
---|---|
Geometric Complexity | Enables intricate shapes, undercuts, and internal cavities with flexible molds. |
Density Uniformity | Minimizes gradients for consistent mechanical properties and reduced defects. |
Economic Viability | Lower mold costs ideal for prototypes, R&D, and low-volume production. |
Scalability | Allows production of large components limited only by vessel size. |
