The primary advantages of the KBr pellet method for FTIR analysis are its high sensitivity, minimal preparation steps, and versatility across a wide range of solid samples. This technique allows for the creation of a thin, uniform sample distribution within an infrared-transparent matrix, resulting in high-quality spectra suitable for both qualitative and quantitative work.
While newer methods exist, the KBr pellet technique remains a foundational and powerful tool for solid-state analysis. Its main value lies in producing high-resolution transmission spectra, but success is entirely dependent on meticulous preparation to mitigate its known sensitivities.

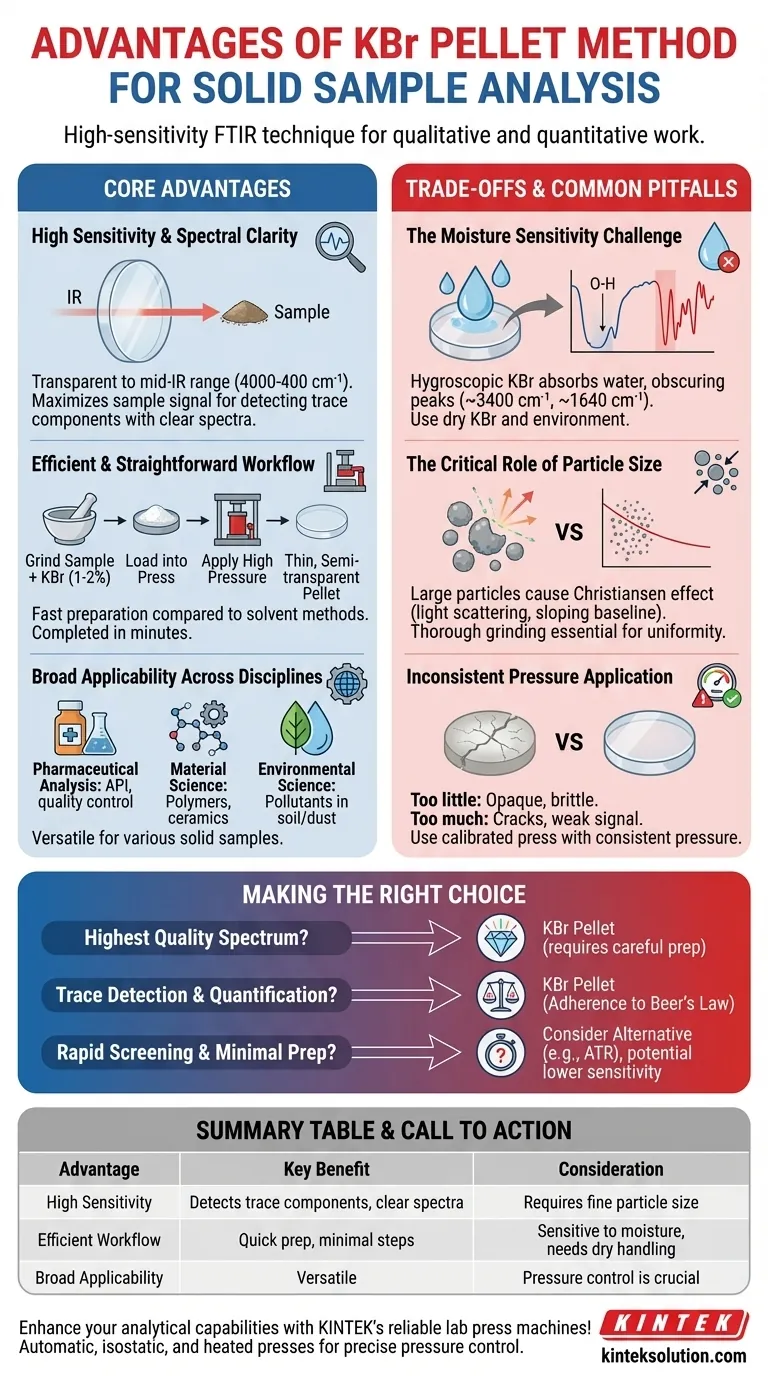

The Core Advantages of KBr Pellets
The KBr (Potassium Bromide) pellet method is a classic transmission technique used in infrared spectroscopy. It involves intimately mixing a solid sample with KBr powder and pressing the mixture into a thin, semi-transparent disk.
High Sensitivity and Spectral Clarity
The KBr matrix is transparent to infrared radiation across the mid-IR range (4000-400 cm⁻¹), meaning it doesn't produce interfering peaks of its own. By grinding the sample into fine particles and dispersing it uniformly, you create an ideal medium for the IR beam to pass through, maximizing the signal from your sample. This makes the method highly sensitive for detecting trace components or substances with weak absorptions.
Efficient and Straightforward Workflow
Compared to dissolving a sample in a solvent, the KBr method is relatively fast. The process involves grinding a small amount of sample (typically 1-2% by weight) with pure KBr powder, loading the mixture into a press, and applying high pressure to form the pellet. While it requires care, the entire process can be completed in minutes.
Broad Applicability Across Disciplines
The KBr method is not limited to a single field. Its robustness makes it a go-to technique in many areas:
- Pharmaceutical Analysis: Used for identifying active ingredients, characterizing excipients, and performing quality control.
- Material Science: Ideal for analyzing the structure of polymers, ceramics, and composite materials.
- Environmental Science: Effective for identifying pollutants and contaminants present in solid matrices like soil or dust.
Understanding the Trade-offs and Common Pitfalls
The high-quality results from the KBr method are only achievable if you control for its key sensitivities. Ignoring these factors is the most common source of poor-quality spectra.
The Moisture Sensitivity Challenge
KBr is hygroscopic, meaning it readily absorbs water from the atmosphere. This moisture introduces a broad, strong O-H stretching band (~3400 cm⁻¹) and a weaker H-O-H bending band (~1640 cm⁻¹) into the spectrum, which can easily obscure important sample peaks in those regions.
To avoid this, always use spectroscopy-grade KBr that has been thoroughly dried in an oven and stored in a desiccator. If possible, prepare the pellet in a low-humidity environment, such as under a heat lamp or inside a glove box.
The Critical Role of Particle Size
If the sample particles are too large (larger than the wavelength of the IR light), it can cause significant light scattering known as the Christiansen effect. This appears as a distorted, sloping baseline in your spectrum, making peak identification and quantification difficult.
Achieving a fine, uniform particle size through thorough grinding with a mortar and pestle is non-negotiable for a high-quality result. The final mixture should have a consistent, flour-like texture.
Inconsistent Pressure Application
The pressure used to form the pellet is a critical variable.
- Too little pressure results in an opaque, cloudy, or brittle pellet that will scatter light and may fall apart.
- Too much pressure can cause the pellet to crack or become so thin that it produces a weak signal.
Using a calibrated hydraulic press and applying pressure slowly and consistently is key to forming a durable, transparent pellet that is ideal for analysis.
Making the Right Choice for Your Analysis
Choosing the KBr pellet method depends on your analytical goals and your willingness to engage in careful sample preparation.
- If your primary focus is obtaining the highest quality, high-resolution spectrum: The KBr pellet method is an excellent choice, provided you take the time to prepare the sample correctly.
- If your primary focus is detecting trace components or performing quantitative analysis: The sensitivity and adherence to Beer's Law make this transmission method superior to many surface-level techniques.
- If your primary focus is rapid screening with minimal preparation: A different method, such as Attenuated Total Reflectance (ATR), may be a more practical choice, though potentially at the cost of sensitivity or spectral purity.
Mastering the KBr pellet technique is a valuable skill that empowers you to perform definitive solid-state IR analysis.
Summary Table:
| Advantage | Key Benefit | Consideration |
|---|---|---|
| High Sensitivity | Enables detection of trace components with clear spectra | Requires fine particle size to avoid scattering |
| Efficient Workflow | Quick preparation with minimal steps | Sensitive to moisture; needs dry handling |
| Broad Applicability | Versatile for pharmaceuticals, materials, and environmental samples | Pressure control is crucial for pellet quality |
